• Model NO.：instrumentation cable 0.5mm2
• Wire Core Material：Tinned Wire
• Certification：CE, ISO, RoHS, CCC, UL, VDE
• Model：Kvv
• Brand：Yifang
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：multicores
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544601200
• Production Capacity：300km,Month

Basic Info.

Model NO. instrumentation cable 0.5mm2 Wire Core Material Tinned Wire Certification CE, ISO, RoHS, CCC, UL, VDE Model Kvv Brand Yifang Transport Package Wooden or Wooden-Steel Drum Specification multicores Trademark Yifang Cable Origin Zhengzhou, China HS Code 8544601200 Production Capacity 300km/Month

Product Description

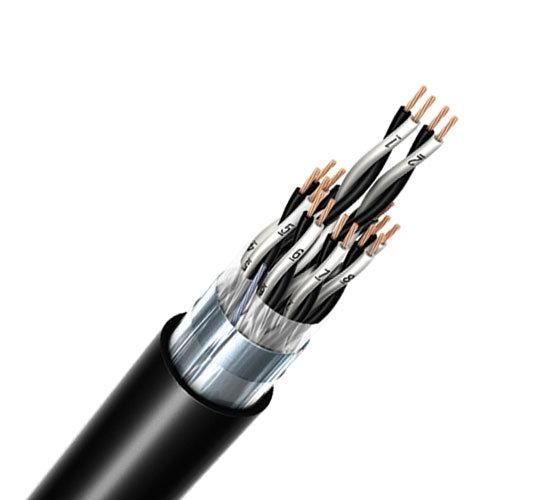

Instrumentation cable multi pairs triads,SWA,isos,0.5mm2 0.75mm2 1.5mm2



Application:

 Instrumentation cable can be used in interconnection of process control, communication & panel control systems like oil exploration, cement, paper, steel, power generation and others.

Specifications:

Conductors: Class 5 flexible plain copper

Insulation: PVC / XLPE

Individual shield: Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire for each pair or triad .

Overall  shield:  Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire

Sheath: PVC

Color code :
Pairs are black,white and alpha numeric coded;
Triads are black,white,red and alpha numeric coded
Voltage: 300/500V , 450/750V , 600/1000V

Operating temperature with PVC insualtion : Maximum 70°C

Operating temperature with XLPE insualtion : Maximum 90°C

Standard: BS 5308

Other customized options:
XLPE insulation
coloured outer sheath
non-shielded or overall shielded cables upon request
Galvanized steel wire armoured type
pairs are binded with Polyester tape and overall shielded with copper wire braidings
other constructions available upon request
