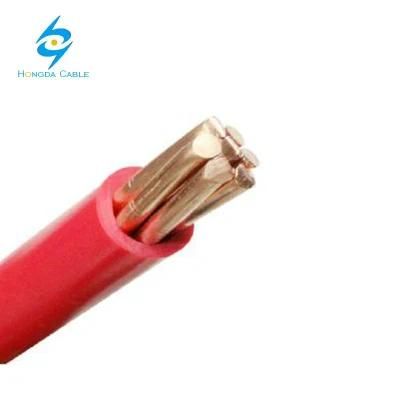

0.6kv/1kv Copper / Aluminum Conductor 1X185 mm2 XLPE Insulated Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station, Building
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：PE
- Material Shape：Round Wire
Base Info
- Model NO.：XLPE insulated Cable
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, SGS
- Model：Cu,XLPE,PE
- Brand：Hongda
- Standard：IEC 60502, BS 5467
- Rated Voltage：0.6,1 Kv
- Test Voltage：4 Kv
- Transport Package：Drum or as Customer Require
- Specification：1.5mm2 to 400mm2
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：20km,Day
Description
1TYPE: CU/XLPE/PE 1x185mm2 a) Manufacturer's name Name HENAN HONGDA CABLE CO., LTD b) Country of origin Name China c) Rated voltage KV 0.6/1 2 Applies Standard ·IEC60502 3 Conductor: a) Material - Plain annealed soft copper b) Normal section area mm² 185 c) Conductor shape - Stranded compacted circular (Class 2) d) Number of core each 1 e) Number and diameter of individual wire No./mm 37/2.52 f) Conductor diameter mm 15.3 4
Insulation: a) Material - XLPE b) Color - Natural c) Nominal Thickness mm 1.6 5 Out Sheath: a) Material PE b) Color Black c) Nominal Thickness 1.6 6 Approx. weight of cable kg/km 1818 7 Approx. Diameter of cable mm 22.7 8 Permitted temperature on core: a) Long-term working temperature ºC -15~90 b) Max. temperature in short circuit ºC 250 9 Max. DC. Conductor resistance at 20ºC ohm/km 0.0991
XLPE Cable - Technical data and testsStandards : BS 5467; IEC 60502-1 Nominal voltage U0/U : 0,6/1 kV Test voltage (50 Hz) : 4 kV Maximun voltage Um : 1,2 kV Maximun operating temperature : +90° C Maximun short circuit temperature : +250° C Min. operating temperature
(without mechanical shocks) : -25° C Minimum installation and use temp. : -10° C Minimum bending radius per
D cable diameter (in mm) : 6 x D Maximum pulling stress : 5 kg/mm² (of copper cross section) Core colours single core : black
two cores : blue-brown
three cores : brown-black-blue (1,5/2,5 mmq); brown-black-gray (4 mmq) or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G) Sheath colour : black
CU/XLPE/PE Cable - Applications
This cable is for use on industrial sites and the upright columns of buildings. Particularly suited in cases of high operating temperatures and when high resistance to solar radiation and atmospheric agents is required.
Presents good resistance to low temperatures and chemical agents. It can be used without additional mechanical protection in open air, fixed to walls or in raceways, inside walkways, and in empty in constructions in general.
It can be laid underground with mechanical protection constucted from slabs, tiles, or bricks. It is not recommended to lay this cable in ground flooded for more than two months per year.
With appropriate mechanical protection it can be use in areas subject to risk of explosion, but in this case the permitted current load is reduced by 15%.
XLPE cable 0.6/1 kV - Other standards German : N2XY, NA2XY British : CU/XLPE/PVC, AL/XLPE/PVC Serbian : XP 00 Turkish : YXV-U (-R) Romanian : C2
Multicores7x 1.5 1.4 0.7 1.43 13.5 12.1 220 15 22 7x 2.5 1.8 0.7 1.43 15 7.41 310 20.5 28 10x 1.5 1.4 0.7 1.43 16.5 12.1 310 13 18.5 10x 2.5 1.8 0.7 1.43 19 7.41 440 18 24.5 12x 1.5 1.4 0.7 1.43 17 12.1 370 12.5 18 12x 2.5 1.8 0.7 1.43 19.5 7.41 525 17 24 14x 1.5 1.4 0.7 1.43 18 12.1 430 12 17 14x 2.5 1.8 0.7 1.43 20.5 7.41 610 16 22 19x 1.5 1.4 0.7 1.43 19.5 12.1 560 10.5 15 19x 2.5 1.8 0.7 1.43 22.5 7.41 745 14.5 19.5 24x 1.5 1.4 0.7 1.43 22.5 12.1 710 10 14 24x 2.5 1.8 0.7 1.43 25.5 7.41 1000 13 18 30x 1.5 1.4 0.7 1.43 24 12.1 806 9 12.5 30x 2.5 1.8 0.7 1.43 27.5 7.41 1135 12 16.5 37x 1.5 1.4 0.7 1.43 25.5 12.1 972 8 12 37x 2.5 1.8 0.7 1.43 29.5 7.41 1350 11 15.5

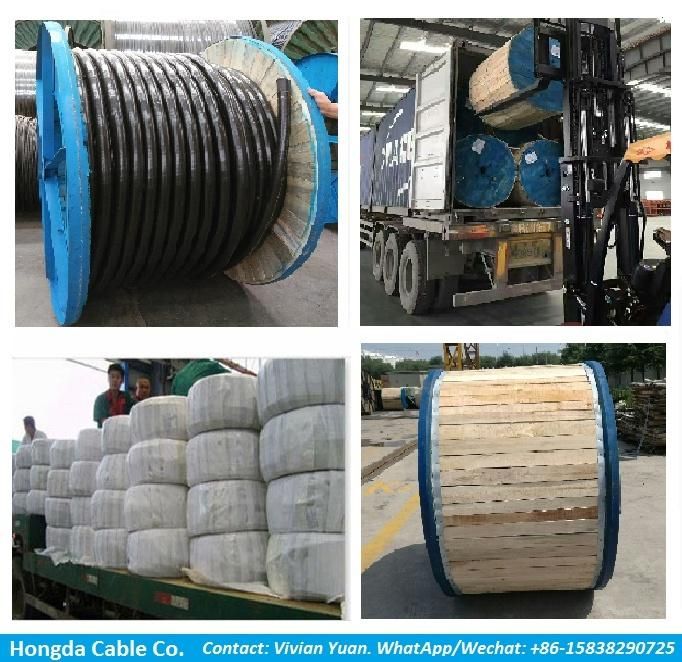

Packing & Shipping:
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
