• Model NO.：NYM
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, VDE
• Model：Nym
• Brand：Boan

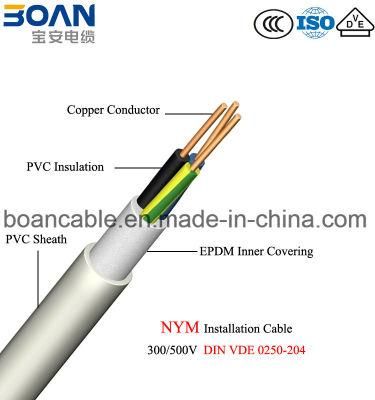

• Code Name：Nym Installation Cable
• Conductor：Bare Copper Conductor
• Insulation：PVC
• Inner Covering：EPDM
• Sheath：PVC
• Standard：VDE 0250-204
• Number of Cores：2~7
• Size：1.5~35mm2
• Sheath Color：Grey
• Rated Voltage：300,500V
• Transport Package：Fumigated Steel-Wooden Drum,Wooden Drum
• Specification：CU,PVC,EPDM,PVC Cable
• Trademark：Dingan
• Origin：China Mainland(Jiangsu Wuxi)
• HS Code：8544492100
• Production Capacity：22000 Kilometres Per Year

Number of cores x
nominal cross section
(mm²)

Max.Conductorresistance(Ω/km)Outer Diameter
(mm) ca.Metal weight
(kg/km)Total weight
(kg/km) ca.2X1.5 RE12.108.5291143X1.5 RE12.108.9441304X1.5 RE12.109.5591675X1.5 RE12.1010.2741807X1.5 RE12.1011.01032312X2.5 RE7.419.7491563X2.5 RE7.4110.2741934X2.5 RE7.4111.0982255X2.5 RE7.4111.91232647X2.5 RE7.4112.81723332X4 RE4.6111.1782193X4 RE4.6111.71182624X4 RE4.6113.01573285X4 RE4.6114.51964042X6 RE3.812.11182153X6 RE3.813.11763504X6 RE3.814.62354425X6 RE3.815.82945232X10 RE1.8315.41964503X10 RE1.8316.32945484X10 RE1.8317.73926695X10 RE1.8319.34907982X16 RM1.1517.83146423X16 RM1.1519.34708124X16 RM1.1520.962710475X16 RM1.1523.378412732X25 RM0.72721.94909583X25 RM0.72723.273512084X25 RM0.72725.398015215X25 RM0.72728.1122518192X35 RM0.52424.86861273X35 RM0.52426.3102915844X35 RM0.52428.7137219615X35 RM0.52431.517152393Packaging & Shipping:
Fumigated Steel-Wooden Drum/Wooden Drum

Company Information:
Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.


Certifications:
