Cable IEC 60502-2 / NFC 33 220 12/20 (24) Kv
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJV-12,20
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：Yjv-12,20
- Brand：Yifang
- Product Name：Cable IEC 60502-2 , NFC 33 220 12,20 (24) Kv

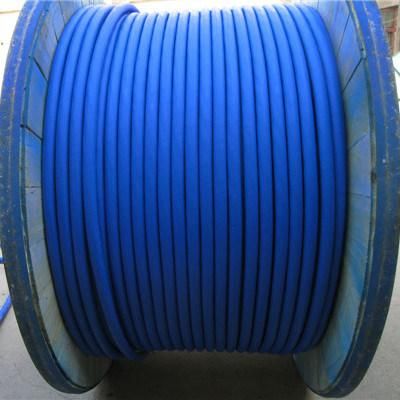

- Transport Package：Drum or Under Clients′ Request
- Specification：35mm2-800mm2
- Trademark：Yifang
- Origin：Zhengzhou, China
- HS Code：8544601200
- Production Capacity：1000km,Month
Description
Basic Info.
Model NO. YJV-12/20 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Yjv-12/20 Brand Yifang Product Name Cable IEC 60502-2 / NFC 33 220 12/20 (24) Kv Transport Package Drum or Under Clients′ Request Specification 35mm2-800mm2 Trademark Yifang Origin Zhengzhou, China HS Code 8544601200 Production Capacity 1000km/MonthProduct Description
Product DetailsCable IEC 60502-2 / NFC 33 220 12/20 (24) kV
The cable IEC 60502-2 or NF C 33-220 is intended for public distribution medium voltage HTA 12/20 kV.

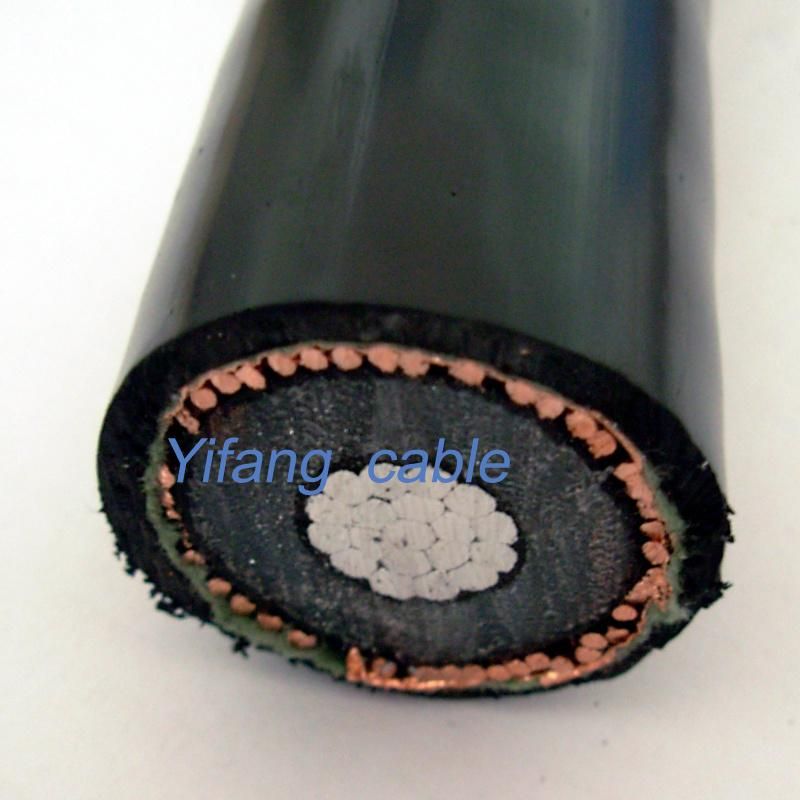

It consists of 1 non-armed phase conductor. A semiconductor ribbon is placed under the copper screen.
INSULATION
The crosslinking process of polyethylene guarantees:
Excellent resistance to temperature (90 ° C)
High mechanical strength
Excellent resistance to short circuits (250 ° C)
Very good resistance to weather
Product Parameters
| Sizes | Overall Dia.(mm) | Standard Length(m) |
| 1x35 | 31.0 | 1000 |
| 1x50 | 32.0 | 1000 |
| 1x70 | 34.0 | 1000 |
| 1x95 | 36.0 | 1000 |
| 1x120 | 37.0 | 1000 |
| 1x150 | 39.0 | 1000 |
| 1x185 | 41.0 | 1000 |
| 1x240 | 43.0 | 1000 |
| 1x300 | 46.0 | 1000 |
| 1x400 | 49.0 | 1000 |
| 1x500 | 52.0 | 1000 |
| 1x630 | 56.0 | 1000 |
| 1x800 | 60.0 | 1000 |
