Cable Fr-N1xd4-Ar NFC33209 Aluminum 16 ~ 25mm2
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：N,a
- Material Shape：Round Wire
Base Info
- Model NO.：JKLYJ
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, RoHS
- Model：Jklyj
- Brand：Yifang
- Product Name：Cable Fr-N1xd4-Ar NFC33209 Aluminum 16 ~ 25mm2
- Transport Package：Drum or Under Clients′ Request
- Specification：16 ~ 25mm2
- Trademark：Yifang
- Origin：Zhengzhou, China
- HS Code：8544492100
- Production Capacity：1000km,Month
Description
Basic Info.
Model NO. JKLYJ Wire Core Material Aluminum Certification ISO, CCC, CE, RoHS Model Jklyj Brand Yifang Product Name Cable Fr-N1xd4-Ar NFC33209 Aluminum 16 ~ 25mm2 Transport Package Drum or Under Clients′ Request Specification 16 ~ 25mm2 Trademark Yifang Origin Zhengzhou, China HS Code 8544492100 Production Capacity 1000km/MonthProduct Description

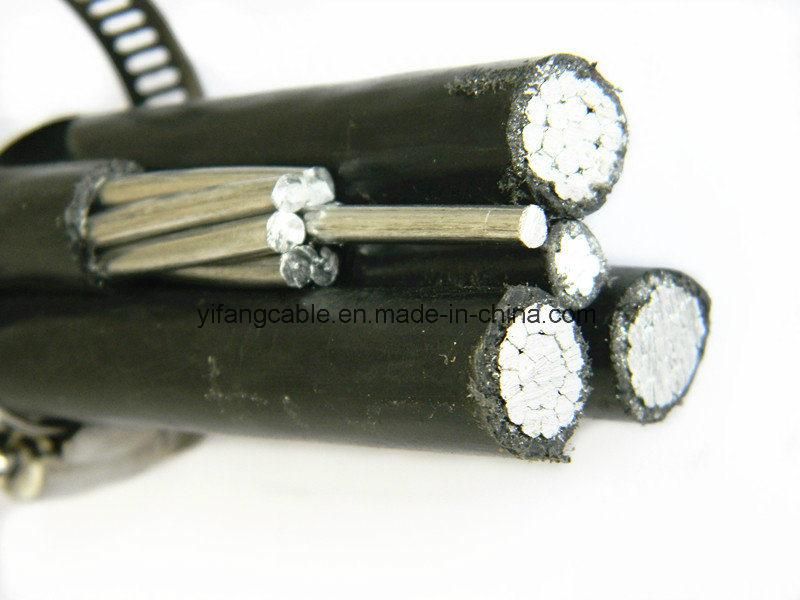

Product DetailsCable FR-N1XD4-AR 2x16 +2x1.5 NFC33209
The twist of ALUMINUM NF C 33-209 aerial conductor is intended to supply customers in rural and public areas.
Polit wire:
2x1.5mm2, XLPE insulated copper conductors.
CHARACTERISTICS
The torsade comprises an insulated aluminum core crosslinked polyethylene, it has a very good behavior over time and at high temperature.
INSTALLATION
The requirements of standard NF C 11-201 determine the installation criteria for low-voltage overhead lines.
Resistance to ultraviolet radiation;
Ozone resistance;
High dielectric strength;
Product Parameters
| Size | Twist Dia.(mm) | Tension(daN) | Standard Length(m) |
| 2x16+2x1.5 | 15.0 | 190 | 2000 |
| 2x16 | 15.0 | 190 | 2000 |
| 2x25+2x1.5 | 18.0 | 300 | 1000 |
| 2x25 | 18.0 | 300 | 1000 |
| 4x16+2x1.5 | 18.5 | 190 | 1000 |
| 4x16 | 18.5 | 190 | 1000 |
| 4x25+2x1.5 | 22.0 | 300 | 500 |
