• Model NO.：AAAC Conductor
• Wire Core Material：Bare Conductor
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：AAAC
• Brand：Yifang

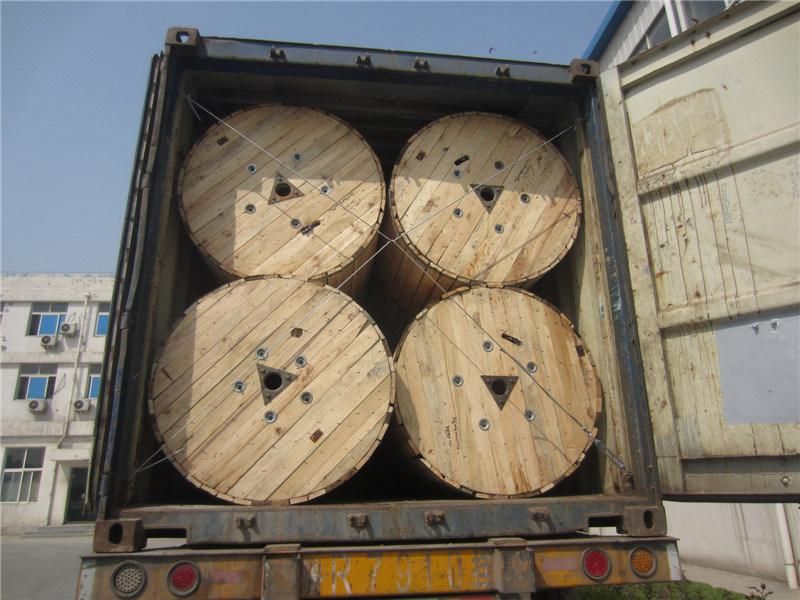

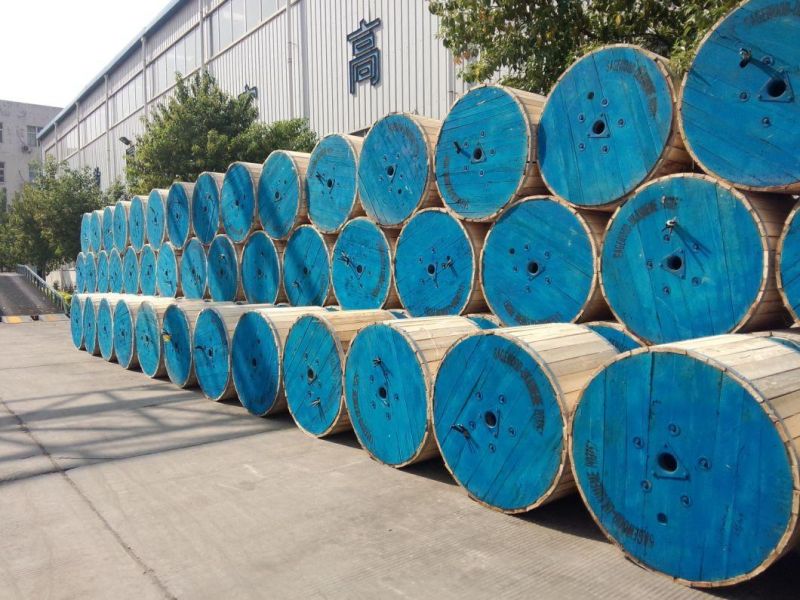

• Transport Package：Drum
• Specification：10mm2~1000mm2
• Trademark：Yifang cable
• Origin：Henan Zhengzhou
• HS Code：7614900000
• Production Capacity：500ton Per Month

Basic Info.

Model NO. AAAC Conductor Wire Core Material Bare Conductor Certification ISO, CCC, CE, RoHS, UL, VDE Model AAAC Brand Yifang Transport Package Drum Specification 10mm2~1000mm2 Trademark Yifang cable Origin Henan Zhengzhou HS Code 7614900000 Production Capacity 500ton Per Month

Product Description

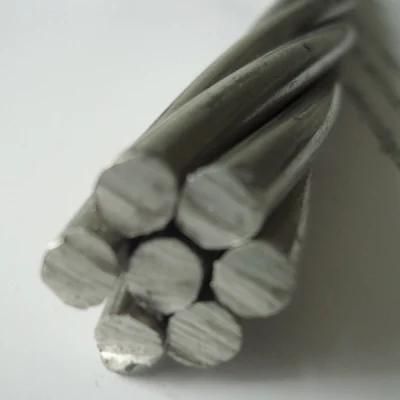

High Voltage AAAC Conductor (54.6mm2,34.4mm2)-Aluminum Alloy Wire



Applications
Used as bare overhead conductor for primary and secondary distribution.The AAAC conductor is designed to get better strength to weight ratio and offer improved electrical properties, excellent sag-tension characteristics, and superior corrosion resistance when compared with ACSR. As compared to a conventional ACSR conductor, the lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.


Construction

Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

Specifications
AAAC bare conductor meets or exceeds the following ASTM specifications :
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.


AAAC standard
NFC34-125, BS EN 50183, BS 3242 ASTM B399, AS/NZS 1531, NFC 34-125 IEC 61089, certificates of ISO9001, ISO14001.
 NFC34-125 standrad:


Nominal areamm2	No. of wire and wire diamm
22	7x2.0
34.4	7x2.5
54.6	7x3.15
75.6	19x2.25
117	19x2.8
148	19x3.15
181.6	37x2.5
228	37x2.8
288	37x3.15
366	37x3.55
570	61x3.45
