Kx6 Green PVC Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：KX6
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Brand：OEM
- Braiding：32,48,64,96,112,128,144
- Transport Package：200m,300m,305m
- Specification：7*0.2mm Conductor
- Trademark：FUU
- Origin：China
- HS Code：8544200000
- Production Capacity：3500km,Month
Description
Construction Parameters:
Inner Conductor
7×0.008"/7×0.2mm/7×32 AWG Cu
Dielectric
0.15"/3.7mm Solid PE
Shield
Copper Clad Aluminum(90%)
Jacket
6.10±0.10mm PVC
Application
For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
87.5Ω/KM at 20ºC
Capacitance
67 ±3 pF/m
Impedance
75 ± 3 Ω
Return loss
between 5 and 1000MHz: > 22dB
Velocity of Propagation
0.85
Sparker Test (VAC)
4
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ºC to 70ºC
Cable diamensions
6.10±0.10mm PVC

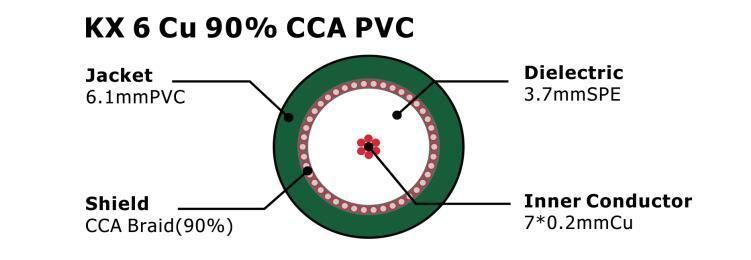

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
10
5.00
50
8.10
100
13.00
200
18.50
400
22.50
850
34.50
950
37.50
1000
45.00
Order Informations:
Marking
KX 6 Cu 90% CCA PVC CATV COAXIAL CABLE ×××MT
Package
Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time
Normally 25 days after received the deposit.
