• Model NO.：cable 300mm2
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC

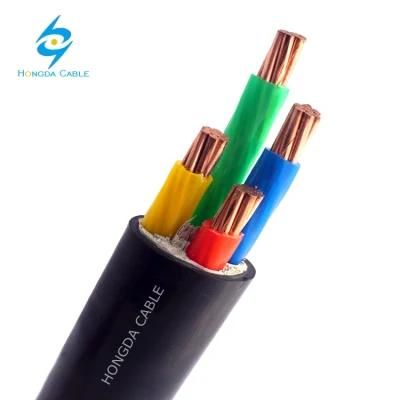

• Model：YJV
• Brand：OEM
• Rated Voltage：600,1000V
• Transport Package：Steel & Wooden Drum
• Specification：400mm2 300mm2 240mm2 power cable
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：1200km Per Month

TypeDescriptioncoresVV  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1VLV  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1VV22  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1VLV22  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1VV32  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1VLV32  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJV  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJLV  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJV22  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJLV22  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJV32  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJLV32  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJY  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJLY  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJY23  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE inner sheath, Galvanized steel tape armored, PE outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJLY23  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE inner sheath, Galvanized steel tape armored, PE outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJY33  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE inner sheath, Galvanized steel wire armored, PE outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1YJLY33  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE inner sheath, Galvanized steel wire armored, PE outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1WDZ-YJE  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1WDZ-YJLE  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1WDZ-YJE23  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel tape armored, low smoke zero halogen flame retardant outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1WDZ-YJLE23  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel tape armored, low smoke zero halogen flame retardant outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1WDZ-YJE33  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel wire armored, low smoke zero halogen flame retardant outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1WDZ-YJLE33  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel wire armored, low smoke zero halogen flame retardant outer sheath, low voltage power cable1, 2, 3, 4, 5, 3+1, 3+2, 4+1 ConductorInductanceCurrent - Carrying Capacity at 30° C *Short circuit current at 1 secNom. Cross Section AreaDC Resistance at 20°CAC Resistance at 70°Cin airin ground(mm²)Max. (Ω/km)Max. (Ω/km)(mH/km)Max. (A)Max. (A)Max. (kA)1.512.114.4780.32822270.172.57.418.8660.30429350.2944.615.5160.30339460.4663.083.6850.28850570.69101.832.1900.26968771.15161.151.3760.25590991.84250.7270.8700.2551211282.88350.5240.6270.2461491544.03500.3870.4640.2471731735.75700.2680.3210.2382152128.05950.1930.2320.23826625510.931200.1530.1840.23330828913.801500.1240.1500.23335732717.251850.09910.1210.23340536621.282400.07540.0930.23248242527.603000.06010.0750.23155247934.50

*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.

Application
Power cable : Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely.

Special Features on Request :
• Tinned Coated Copper Conductor
• Fire Resistance
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Heat Resistance
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
• Nylon Coated


Note :
Conductor Shape
1.5 - 10 sqmm supplied in solid (re) or non compacted circular stranded (rm)
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
25 - 800 sqmm supplied in non compacted circular stranded (rm) or compacted circular stranded (cm) conductor shape

Tinned Coated Copper Conductor
Electrical properties for tinned coated copper conductor will be submitted upon request

Standard Packing
1.5 - 10 sqmm supplied in coil @ 100 m
16 - 300 sqmm supplied in wooden drum @ 1000 m
400 - 800 sqmm supplied in wooden drum on available length
Length Tolerance per drum ± 2%
