600V 4X25mm 4X50mm 4X95mm 4X120mm PVC Power Cable Nyy

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：cable nyy
  • Wire Core Material：Red Copper Wire
  • Certification：ISO, CCC, SGS
  • Model：VV, Nyy
  • Brand：OEM
  • Rated Voltage：600V
  • Fixed Temperature Range：-20°c Till +70°c
  • Useful：Fixed Installations, Preferably in Cable Ducts, in
  • Transport Package：Wooden Drum
  • Specification：1 core, 2 core, 3 core, 4 core, 5 core
  • Trademark：Hongda
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：200km,Week

Description

Basic Info.

Model NO. cable nyy Wire Core Material Red Copper Wire Certification ISO, CCC, SGS Model VV, Nyy Brand OEM Rated Voltage 600V Fixed Temperature Range -20°c Till +70°c Useful Fixed Installations, Preferably in Cable Ducts, in Transport Package Wooden Drum Specification 1 core, 2 core, 3 core, 4 core, 5 core Trademark Hongda Origin China HS Code 8544492100 Production Capacity 200km/Week

Product Description

600V 4x25mm 4x50mm 4x95mm 4x120mm 4 Core pvc power cable nyy

NYY

PVC Insulated Heavy Current Cable 0,6/1kV Single and Multicore

nyy cable Application:

This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be Expected.

600V 4X25mm 4X50mm 4X95mm 4X120mm PVC Power Cable Nyy

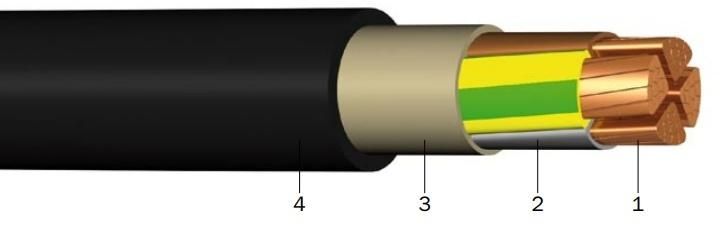

nyy cable Construction:

1 ..... solid (RE) or stranded (RM/SM) bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... PVC core covering or taping
4 ..... outer sheath of polyvinylchloride (PVC), black

nyy cable Information:

short circuit temperature on core (max. 5 sec.)
<=300 mm² --> 160°C
>300 mm² --> 140°C

nyy cable Standards:

DIN VDE 0276-603
HD 603 S1:1994 + A2:2003
DIN EN 60228 class 1 and 2 (construction)
HD 308 S2 (core identification)

600V 4X25mm 4X50mm 4X95mm 4X120mm PVC Power Cable Nyy

nyy cable Technical data:

Nominal voltage Uo/U [V]600 / 1000 volt
Test voltage [V]AC4000
Temperature rangein motion -5°C till +70°C
 fixed -20°C till +70°C
Bending radiussingle-core stylex diameter15
 multi-core stylex diameter12
Flammabilitystandard EN 60332-1-2

nyy cable Parameters:
Number of cores and
nominal cross section		Copper figureOverall diameter
 appr.		Weight appr.Current carrying
capacity ground		Current carrying
capacity air
mm2kg/kmmmkg/kmAA
1 x 16 RE160,011233,010784
1 x 25 RM250,012370,0138114
1 x 35 RM350,014480,0164139
1 x 50 RM500,016640,0195169
1 x 70 RM700,017850,0238213
1 x 95 RM950,0191.120,0286264
1 x 120 RM1.200,0211.375,0325307
1 x 150 RM1.500,0231.660,0365352
1 x 185 RM1.850,0252.050,0413406
1 x 240 RM2.400,0282.634,0479483
1 x 300 RM3.000,0303.295,0541557
1 x 400 RM4.000,0324.231,0614646
1 x 500 RM5.000,0345.284,0693747
1 x 630 RM6.300,0426.850,0777858
2 x 1,5 RE30,011220,02720
2 x 2,5 RE50,012267,03625
2 x 4 RE80,014342,04734
2 x 6 RE120,015412,05943
2 x 10 RE200,016510,07959
2 x 16 RM320,018670,010279
3 x 1,5 RE45,013244,02720
3 x 2,5 RE75,014294,03625
3 x 4 RE120,016393,04734
3 x 6 RE180,017481,05943
3 x 10 RE300,018645,07959
3 x 16 RE480,020872,010279
3 x 16 RM480,020872,010279
3 x 25 RM750,0251.350,0133106
3 x 35 SM1.050,0251.460,0159129
3 x 50 SM1.500,0291.750,0188157
3 x 70 SM2.100,0322.400,0232199
3 x 95 SM2.850,0353.560,0280246
3 x 120 SM3.600,0384.310,0318285
3 x 150 SM4.500,0425.310,0359326
3 x 185 SM5.550,0476.630,0406374
3 x 240 SM7.200,0538.480,0473445
3 x 25/16 RM/RE910,0251.513,0133106
3 x 35/16 SM/RE1.210,0271.804,0159129
3 x 50/25 SM/RM1.750,0312.349,0188157
3 x 70/ 35 SM2.450,0353.117,0232199
3 x 95/ 50 SM3.350,0394.167,0280246
3 x 120/ 70 SM4.300,0445.190,0318285
3 x 150/ 70 SM5.200,0476.161,0359326
3 x 185/ 95 SM6.500,0537.673,0406374
3 x 240/120 SM8.400,0599.850,0473445
3 x 300/150 SM10.500,06511.900,0535511
4 x 1,5 RE60,014278,02720
4 x 2,5 RE100,015340,03625
4 x 4 RE160,017460,04734
4 x 6 RE240,018570,05943
4 x 10 RE400,020775,07959
4 x 10 RM400,020775,07959
4 x 16 RE640,0221.072,010279
4 x 16 RM640,0221.072,010279
4 x 25 RM1.000,0271.632,0133106
4 x 35 SM1.400,0271.959,0159129
4 x 50 SM2.000,0322.595,0188157
4 x 70 SM2.800,0363.488,0232199
4 x 95 SM3.800,0414.637,0280246
4 x 120 SM4.800,0435.689,0318285
4 x 150 SM6.000,0496.973,0359326
4 x 185 SM7.400,0548.663,0406374
4 x 240 SM9.600,06011.140,0473445
5 x 1,5 RE75,015317,000
5 x 2,5 RE125,016391,000
5 x 4 RE200,018537,000
5 x 6 RE300,019672,000
5 x 10 RE500,021921,000
5 x 10 RM500,021921,000
5 x 16 RE800,0241.294,000
5 x 16 RM800,0241.294,000
5 x 25 RM1.250,0292.004,000
5 x 35 RM1.750,0302.575,000
5 x 50 RM2.500,0363.193,000
5 x 70 RM3.500,0404.722,000
5 x 95 RM4.750,0466.393,000
5 x 120 RM6.000,0507.095,000
5 x 150 RM7.500,0598.240,000
7 x 1,5 RE105,016376,000
10 x 1,5 RE150,019495,000
12 x 1,5 RE180,018440,000
14 x 1,5 RE210,020494,000
16 x 1,5 RE240,021600,000
19 x 1,5 RE285,022614,000
21 x 1,5 RE315,023700,000
24 x 1,5 RE360,024769,000
30 x 1,5 RE450,026918,000
40 x 1,5 RE600,0291.250,000
7 x 2,5 RE175,017472,000
10 x 2,5 RE250,020530,000
12 x 2,5 RE300,021578,000
14 x 2,5 RE350,022680,000
16 x 2,5 RE400,023750,000
19 x 2,5 RE475,024870,000
21 x 2,5 RE525,025900,000
24 x 2,5 RE600,0261.035,000
30 x 2,5 RE750,0281.300,000
40 x 2,5 RE1.000,0311.700,000
7 x 4 RE280,018600,000
7 x 6 RE420,020760,000
7 x 10 RE700,0221.080,000

* The current carrying capacity of the cables depends on the number of cores loaded (see DIN VDE 0276-627)
