• Model NO.：h07v-u
• Material Shape：Round Wire
• Range of Application：in Dry Rooms and in Closed Installation Conduits
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Central Conductor：Fine Solid Copper
• Insulation：Polyvinyl Chloride (PVC)
• Transport Package：a: Roll of 100 M B: Reel of 1500 M.
• Specification：0.5mm2 to 10mm2
• Trademark：Hongda or as customer require
• Origin：China
• HS Code：8544492900
• Production Capacity：60km,Day

Basic Info.

Model NO. h07v-u Material Shape Round Wire Range of Application in Dry Rooms and in Closed Installation Conduits Certification ISO9001, CCC, SGS Brand Hongda Central Conductor Fine Solid Copper Insulation Polyvinyl Chloride (PVC) Transport Package a: Roll of 100 M B: Reel of 1500 M. Specification 0.5mm2 to 10mm2 Trademark Hongda or as customer require Origin China HS Code 8544492900 Production Capacity 60km/Day

Product Description

PVC insulated conductor cable single wire h07v-u 1.5mm 2.5mm2

Operating Temperature: -15°C to 70°C
Final Short Circuit
160°C for cable < 300mm2
140°C for cable >300mm2
Test Voltage: 2.5kV For 5 minutes

H05V-U / H07V-U

Application and Description

H05 V-U/(H)05 V-U
These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H07 V-U/(H)07 V-U
These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.

These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.


Standard

• HRN HD 21.3 S3
  IEC 60227-3
  DIN VDE 0281 part 3

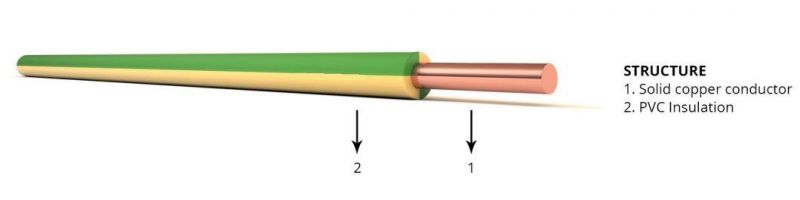

Cable Construction

Construction:

1 ..... solid bare copper
2 ..... PVC insulation

PVC H05V-U / H07V-U Cable Technical Characteristics

Working voltage	300/500v (H05V-U)
Working voltage	450/750v (H07V-U)
Test voltage	2000V(H05V-U)/2500V (H07V-U)
Flexing bending radius	15 x O
Static bending radius	15 x O
Flexing temperature	-5oC to +70oC
Static temperature	-30oC to +90oC
Short circuit temperature	+160oC
Flame retardant	NF C 32-070
Insulation resistance	10 MΩ x km

PVC H05V-U / H07V-U Cable Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
	# x mm^2	mm	mm	kg/km	kg/km
20	1 x 0.5	0.6	2.1	4.8	9
18	1 x 0.75	0.6	2.2	7.2	11
17	1 x 1	0.6	2.4	9.6	14
16	1 x 1.5	0.7	2.9	14.4	21
14	1 x 2.5	0.8	3.5	24.0	33
12	1 x 4	0.8	3.9	38.0	49
10	1 x 6	0.8	4.5	58.0	69
8	1 x 10	1.0	5.7	96.0	115

PVC H05V-U / H07V-U Nya Cable PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

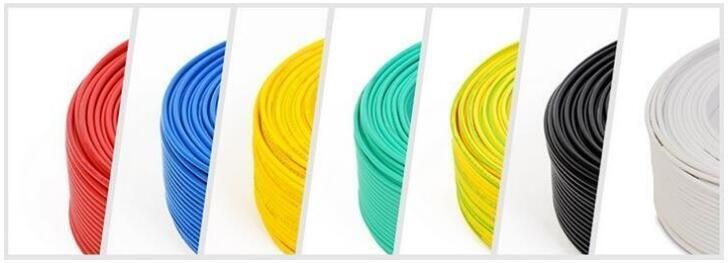

PVC H05V-U / H07V-U Nya Cable AVAILABLE COLORS:
Cables (Sizes 0.5mm2 to 6mm2): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 10mm2 to 25mm2): Black, White, Blue and Red.
Cables (Sizes 25mm2 to 240mm2): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT.


Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
