Enhanced Performance for High Speed Data Ethernet CAT6 UTP Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：Fr-PVC
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：UTP Cat6
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
- Model：UTP CAT6
- Brand：Risun or OEM
- Conductor：23AWG Bare Solid Copper Wire
- Insulation：High Density Polyethylene
- Pairs：2 Insulated Conductors
- Sheath：Fr PVC
- Cable Diameter：6.1 mm Nominal
- Cable Wt Per Box：13.6 Kgs Nominal
- Filler：PE
- Transport Package：305m,Pull Box, 2 Pull Box,CTN.
- Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
- Trademark：Risun or OEM
- Origin：Hangzhou, Zhejiang, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes Per Month
Description
UTP CAT6 solidConductor Conductor resistance ≤ 9.38 Ω / 100 m Resistance unbalance 5 % Max Insulation resistance 100 M Ω Mutual capacitance < 5.6 nF / 100 m Capacitance unbalance 330 pF / 100 m characteristic impedance 100 ± 6 Ω Nominal velocity of propagation Approx. 69% Delay skew ≤ 45 ns Operation Voltage 72V Dielectric Strength 1.0KV dc or 0.75KV ac for 1min

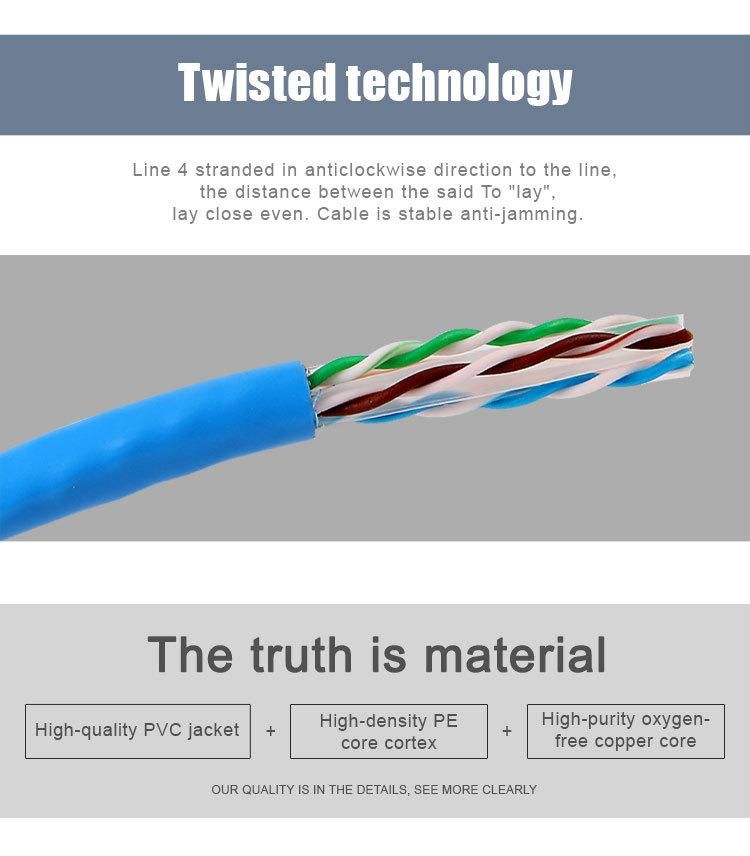

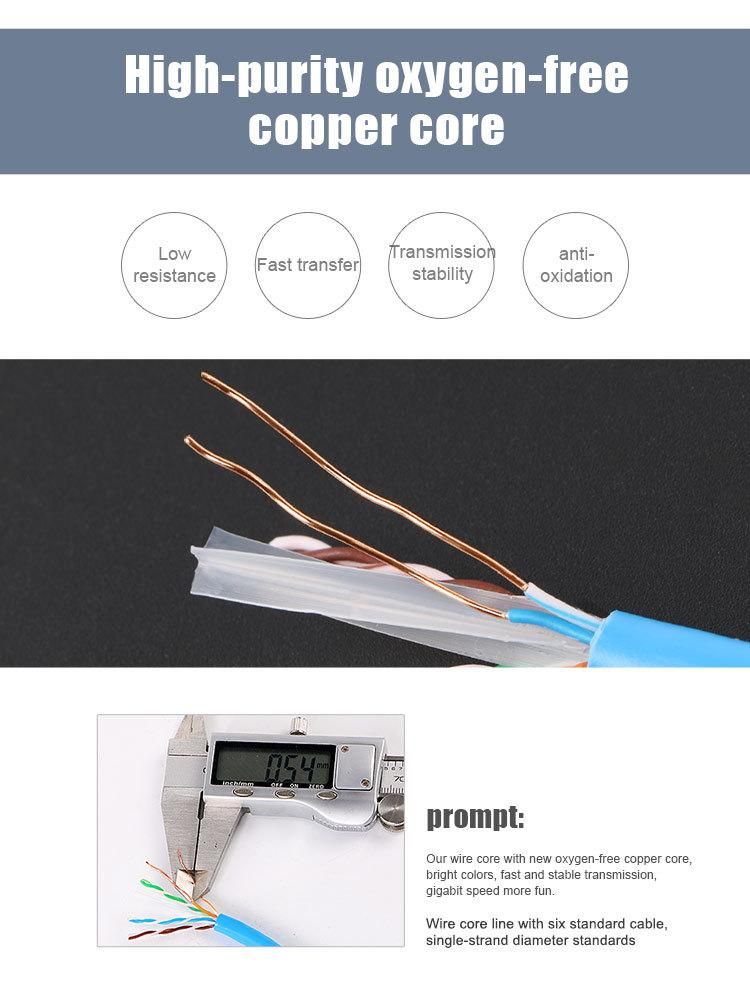

Details Images:
Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
Packing&Shipping:
Why Choose Us:
FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.
Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)
Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.
Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
WELCOME TO RISUN!!!
