• Model NO.：NYY, YJV, YJLV
• Wire Core Material：Copper,Aluminum Stranded Wire
• Certification：ISO, CCC, CE, RoHS, Type Test Report of IEC Standard
• Model：YJV
• Brand：Gdyg
• Sepcial Applicaton：Low Smoke
• Flame Retardant：Yes
• Fire Resistant：Yes
• Aroumoured Type：Steel Wire, Aluminum Wire
• UV Proof：Yes
• OEM：Yes
• Customized：Yes
• Standard：IEC,60502, IEC60227, as,Nz etc
• Bending Radius：Single Core: 20d, Single Core Armoured: 15D,
• Transport Package：Wooden Reel, Steel Reel
• Specification：50mm2, 90mm2, 120mm2, 150mm2, ...500mm2
• Trademark：GDYG
• Origin：Guangdong China
• Production Capacity：30000km

Basic Info.

Model NO. NYY, YJV, YJLV Wire Core Material Copper/Aluminum Stranded Wire Certification ISO, CCC, CE, RoHS, Type Test Report of IEC Standard Model YJV Brand Gdyg Sepcial Applicaton Low Smoke Flame Retardant Yes Fire Resistant Yes Aroumoured Type Steel Wire, Aluminum Wire UV Proof Yes OEM Yes Customized Yes Standard IEC,60502, IEC60227, as/Nz etc Bending Radius Single Core: 20d, Single Core Armoured: 15D, Transport Package Wooden Reel, Steel Reel Specification 50mm2, 90mm2, 120mm2, 150mm2, ...500mm2 Trademark GDYG Origin Guangdong China Production Capacity 30000km

Product Description

Basic Information
Material Shape: Round Wire
Range of Application: Power Grid and All Industry
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
Specification: 0.5mm2 - 630mm2
Supply Record: America, Australia, African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
Application: Power Grid, Transmission Line, Construction, Railway Transportation, Chemical Plant, Telecom , Oil Industry, Equipment Manufacture, Instrument Industry etc..
Voltage: 35KV, 10KV, 0.6/1KV, 450/750V, 300/500V
Current: AC & DC
Insulation Material: XLPE, PVC
Sheath Material: XLPE, PVC etc.
Material Shape: Round wire

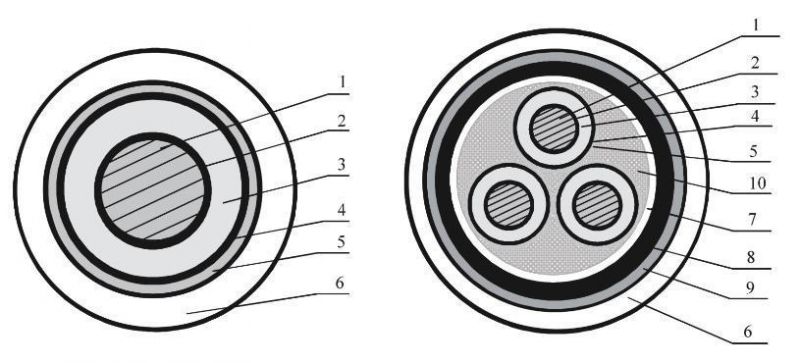

Construction

 1. Conductor
 2. Inner semi-conducting screen
 3. Insulation
 4. Outer semi-conducting screen
 5. Metallic screen
 6. Outer sheath
 7. Wrapping tape
 8. Inner sheath
 9. Steel belt armor
 10. Filler


Application
It applies to the transmission and distribution lines with rated voltage from 3.6/6kv to 26/35kv, while flame retardant power cable is used in the places with special demands of flame retardant property.

U0--rated power frequency voltage between conductors and shield or metallic sheath used for cable designed.
U--rated power frequency voltage between conductors used for cable designed.
Um--max equipment voltage(max system voltage of the equipment in service).


Standards
The products are produced in accordance with GB, IEC, and other standards.


Characteristics
1.Maximum conductor temperature under normal operation is 90ºC.
2.Maximum conductor temperature under short circuit (max duration is not more than 5s) is nor more than 250ºC.
3.Installation ambient temperature is nor less than 0ºC.
4.Minimum installation bending radius are not less than the following specified values:
  Single core non-armored cable: 20D
  Single core armored cable: 15D
  3 cores non-armored cable: 15D
  3 cores armored cable: 12D
  (Note: D-outer diameter of cable)

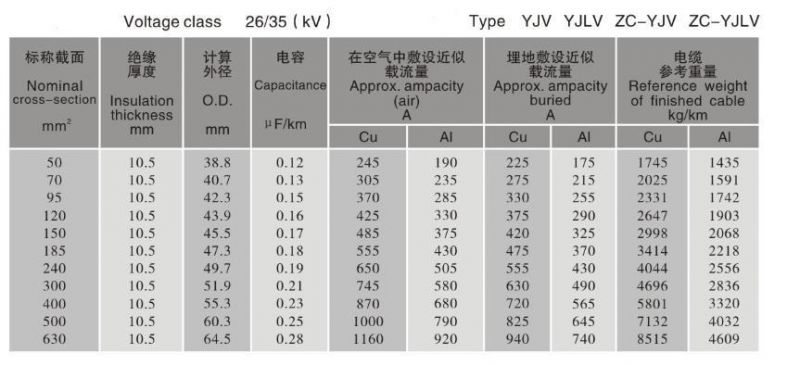

Technical Parameters


Our company



Workshop



Certificates


FAQ:
1. Are you a trading company or manufacture?
Vango cable is a professional manufacturer in Guangdong, China. Established in 1988, we have 30 years experience in this industry.

2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

3. Can you offer me a free sample?
 Yes, sample is free but the freight charge should be borne by you.

4.How is the payment?
T/T, L/C is acceptable.

5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.

6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.

7.Do you have after-sale service?
Yes, 12 months warranty.
