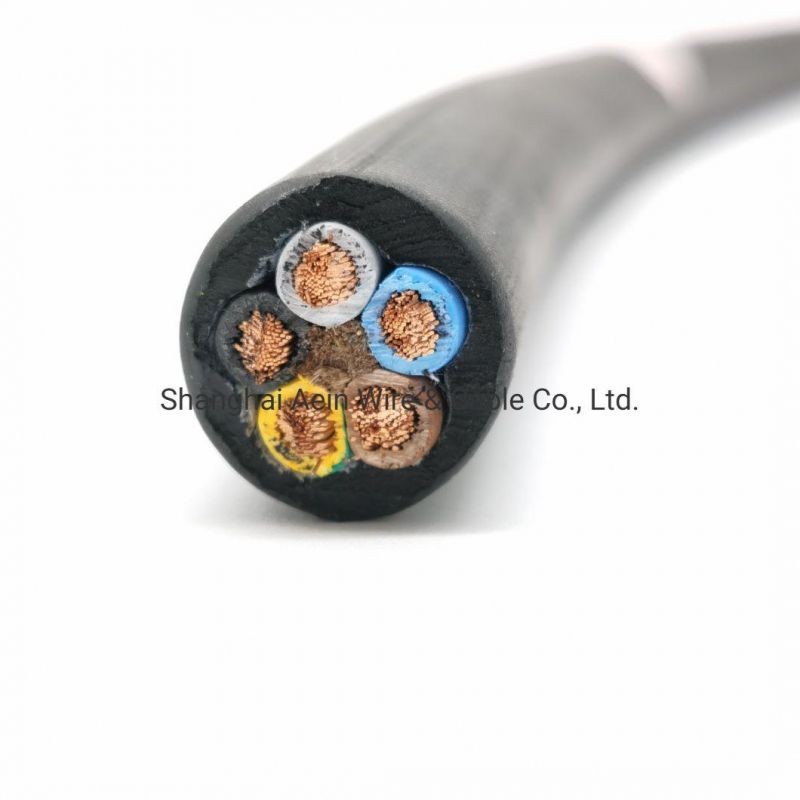

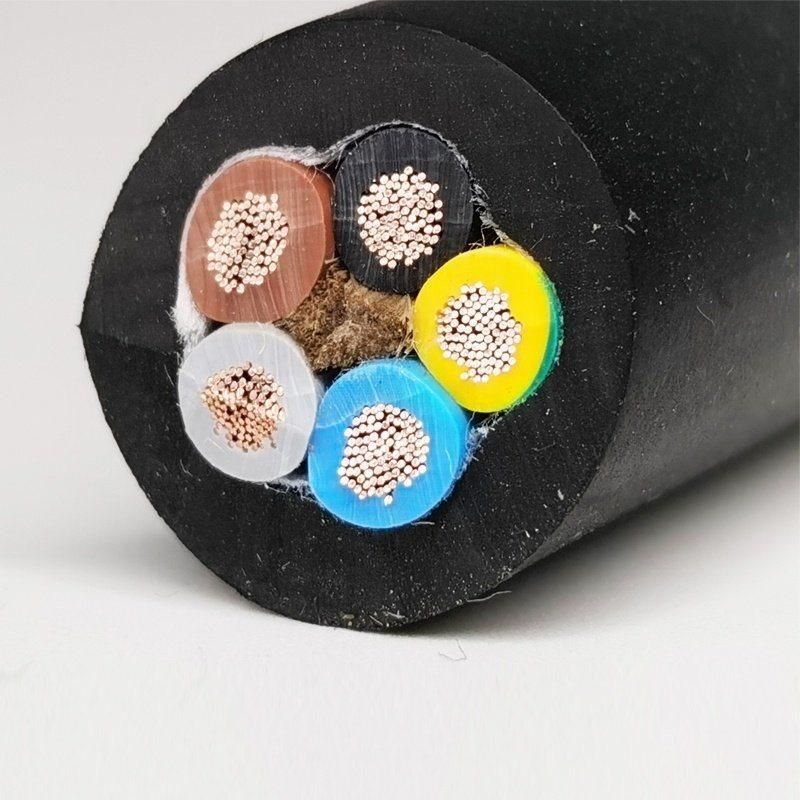

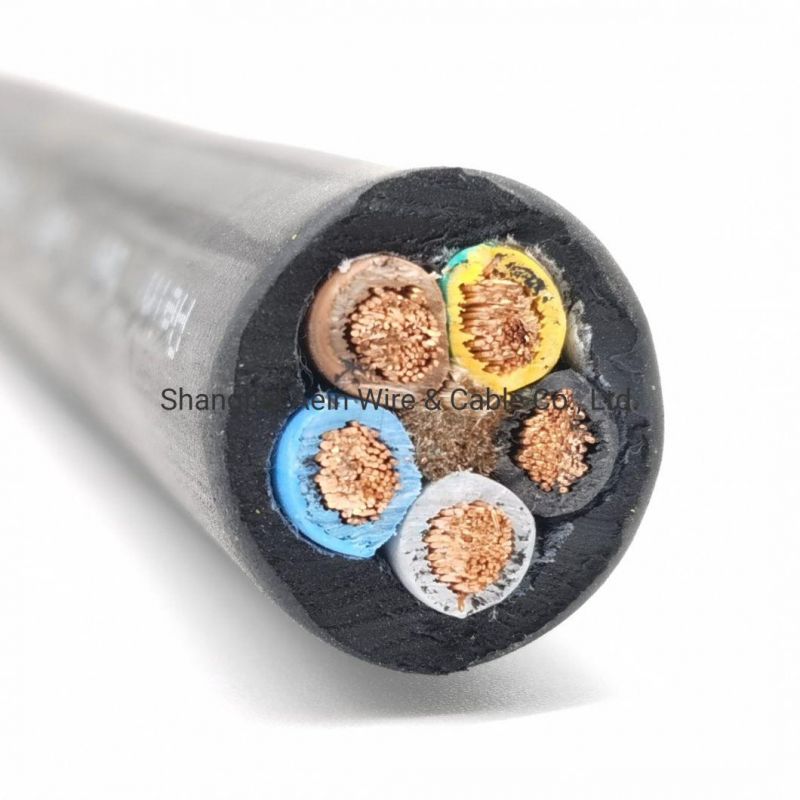

Li12y11y Sensor Actuator Cables Halogen-Free High Flexible Drag Chain Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：TPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：Li12Y11Y Cable
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemSensor Actuator Cables Halogen-free And High Flexible Drag Chain Cable ConductorBare copper conductorInsulationTPEOuter sheathPURVoltage RatingUp to 0,25 mm²  350 V
From 0,34 mm²  500 VTest VoltageUp to 0,25 mm²  1200 V
From 0,34 mm²  2000 VTemperatureFlexing -30°C to +80°C
Fixed installation -40°C to +80°CMinimum bending radius5x cable ØColorOptionalPropertiesLow adhesion, extremely abrasion resistant,
resistant to hydrolysis and microbial attack
Highly flexible drag chain cableApplicationFor decentralised installation and control technology. These cables are used in connector systems for sensors and actuators. In combination with injected circular connectors and installed actuator-sensor boxes, they constitute an important connecting element between the periphery and the PLC in production systems. The assembled cables offer attractive opportunities for reducing costs, not only in the field of automation technology, but also in the entire manufacturing industry. While previously it was necessary to carry out time-consuming wiring of switchgear cabinets and machines, now field bus technology has made it possible to move the periphery interfaces from the switchgear cabinets to the machines and systems. Moving the I/O points to the system periphery enables significant reductions in installation costs.
