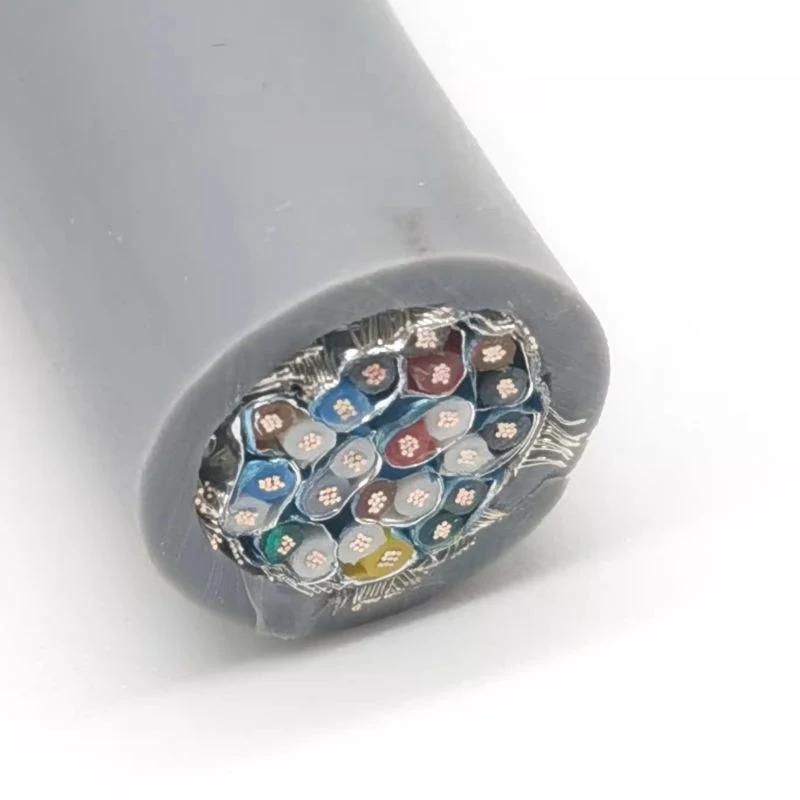

Helukable Alternative CE Certified Liycy-Cy Data Cable Oil-Resistant

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：LiYCY-CY Cable
  • Range of Application：Oil-Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHELUKABLE Alternative CE Certified LiYCY-CY Data Cable Oil-resistantConductorCopper wire bareInsulationPVCWrappingFoil ScreenBraided screen of tinned copper wires, approx. coverage 85%Outer sheathPVCCore NumberMulticores (As client's requirement)Rated Voltage0.14 mm²: 350 V
0.25 - 0.5 mm²: 500 V
(not for high power current installation purposes)Test Voltage0.14 mm²: 1200 V
0.25 - 0.5 mm²: 2000 VTemperature RangeFixed min/max -40 °C / +80 °C
Moved min/max -5 °C / +80 °CBending RadiusFixed 6 x d
Moved 12 x dColorOptional

Properties

Largely resistant to: oil,
The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.CertificationCEApplicationUsed as a control and signal cable in electronic engineering, measurement and control technology. It provides interference-free transmission of data signals from peripheral equipment to information storage. Excellent connection cable for sound mixers, studio equipment and measurement and control technology. Reliable in process control, machining centres and safety-related systems. These cables with copper screening are ideally suited for interefence-free data and signal transmission for measurement and control technology. EMC = Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
