• Model NO.：H00V-D
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.

Application and Description

These high flexible earth conductors are used for eartable_style_1g of portable equipment and short circuiting. These cables perform a protective function in the live repair of high voltage power supply in railway systems, failing current equipment, alternating current systems and in networks of transmission and distribution. Because of that these are designated as safety cables. These eartable_style_1g cables offer special characteristics with low weights, high flexibility to a wide temperature range and the behavior in high temperature. The protective overall PVC jacket assure essential function for proper protection against mechanical and chemical stresses.

Standard and Approval

<HAR> EN61138, VDE-0283 Part-3, DIN 46438 & DIN 46440, CE low voltage directive 73/23/EEC & 93/68/ EEC., ROHS compliant

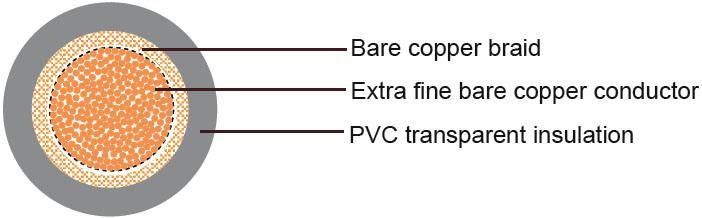

Cable Construction

- Extra fine bare copper strands
- Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
- Overall bare copper wire braid (for ESUY type)
- PVC transparent jacket TM2
- High stress resistance
- Spark Test 6, 4 & 2 AWG: 5000V
- Spark Test 1 & 2/0 AWG: 6000V
- Spark Test 3/0 - 500 MCM: 8000V

Technical Characteristics

- Working voltage: N/A - eartable_style_1g only
- Test voltage: 2000 volts
- Minimal bending radius: 12.0 x Ø
- Temperature range: -5º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

Type of the cables

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²NOMINAL OVERALL DIAMETER MMNOMINAL COPPER WEIGHT KG/KMNOMINAL WEIGHT KG/KM6(4200/41)1 x 169.11942304(3192/38)1 x 2510.52803352(4480/38)1 x 3512.54154751(6383/38)1 x 5014.25856702/0(8918/38)1 x 7016.88209053/0(12100/38)1 x 9519.8109012204/0(15300/38)1 x 12021.513601505300MCM(19152/38)1 x 1502416501940350MCM(23580/38)1 x 18527.621502390500MCM(30600/38)1 x 2403127503090

H00V-D (ESY TYPE)

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²NOMINAL OVERALL DIAMETER MMNOMINAL COPPER WEIGHT KG/KMNOMINAL WEIGHT KG/KM6(525/32)1 x 168.51551854(798/32)1 x 2510.02402702(1120/32)1 x 3512.53363901(1617/32)1 x 5014.04805752/0(2254/32)1 x 7017.26728103/0(3087/32)1 x 9519.591210804/0(3822/32)1 x 12022.811521320300MCM(4802/32)1 x 15025.414401680
