• Model NO.：H07rn8-F
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Rubber Sheathed Cable

H07RN-8-F cable is designed for applications with a voltage rating of 450/750V where the connection may be liable to moderate mechanical stresses, such as industrial or agricultural workshop apparatus, in fixed installations along floors or shelving on temporary job sites; and for connecting structural elements in lifting apparatus and machinery. These cables can be installed in dry, damp or wet environments and in workshops with explosive atmospheres.

Due to its rubber oversheath, the H07RN-8-F can be constantly immersed in fresh water to a depth of up to 10 metres at a water temperature of +40^oC. This makes it suitable as an energy supply cable for submersed pumps. However, it is not suitable for underwater power transmission, or installation in a waterway, or where it is possible that mechanical damage might occur and cause hazard. It is commonly used as a floater switch to connect equipment in industrial water and in flexible applications in swimming pools.

The H07RN-8-F has a heavy-duty neoprene rubber sheathing which provides resistance to UV, ozone and oils.

H07RN-8-F cables are also available in 4-core, 7-core, 12-core, 18-core and 24-core variations as standard.

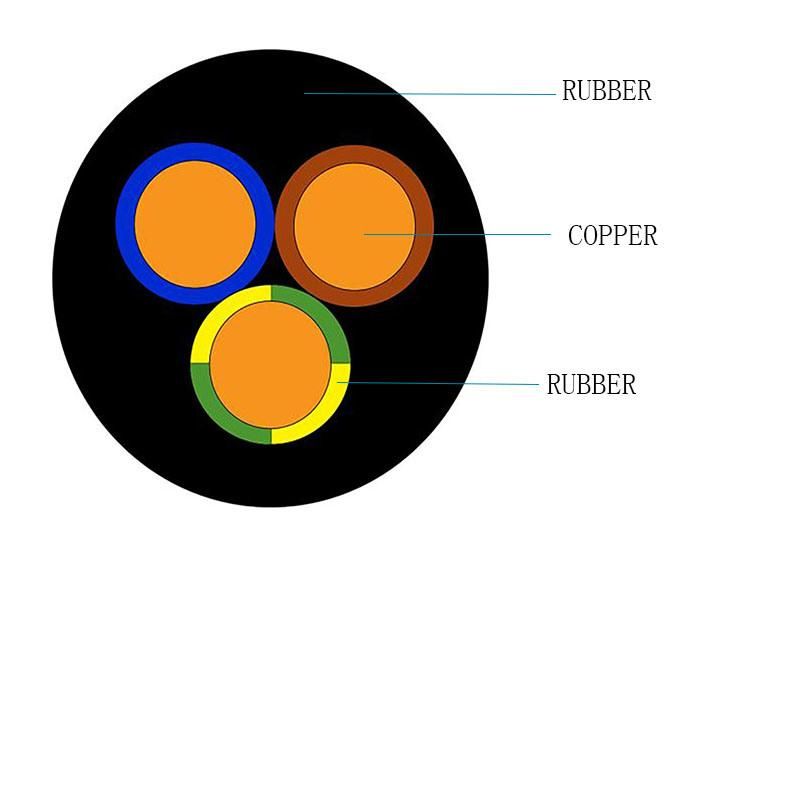

Construction:

• Fine bare copper strands
• Strands to VDE-0295 Class-5, IEC 60228 Cl-5
• Rubber core insulation to VDE-0282 Part-1
• Color code VDE-0293-308 and HD 186
• Polychloroprene rubber (neoprene) jacket
• Ozone, UV & weather resistant
• Permanent use in water

Technical:

• Working voltage: 450/750 volts
• Testing voltage: 2500 volts
• Flexing bending radius: 6.0 x Ø
• Static bending radius: 4.0 x Ø
• Flexing temp: -25º C to +60º C
• Static temp: -40º C to +60º C
• Max water temp: +40º C
• Flame retardant: IEC 60332.1
• Insulation resistance: 20 MΩ x km

Approvals:

• HD22.16 S1
• VDE-0282 Part-16
• CE Low Voltage Directive 2014/35/EU
• RoHS compliant
