• Model NO.：STP Cat7
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：STP Cat7
• Brand：Risun or OEM
• Insulation Material：HDPE
• Ripcord：500d
• No.of Conductor：8 Core, 4pairs
• Color：Gery, White or According Customer Requirement
• UV：Available
• Waterproof：Available
• Frame Returdant：Available
• Conduct Material：Bare Copper
• Drain Wire：Tinner Copper
• 1st Shield Material：Polyester Tape+Aluminum Foil
• 2ND Shield Material：40% Tinner Copper
• Sheath Material：PVC,PE,LSZH
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

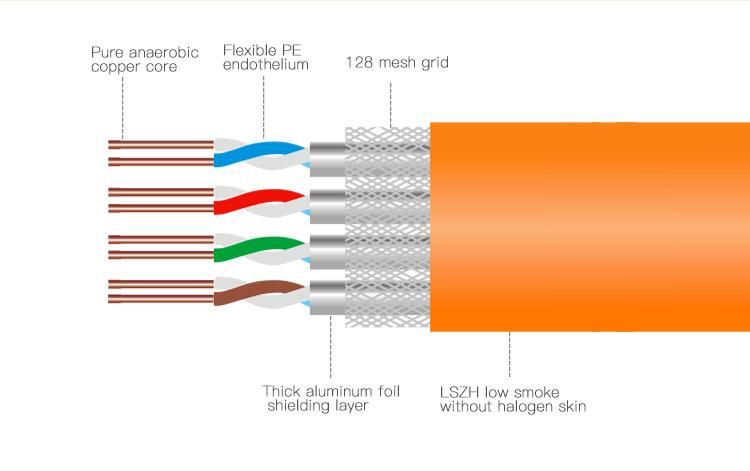

SFTP CAT7 solidBasic WiresConductor: eight wires, bare copper, 0.58 mm OD (23 AWG)
Insulation: skin foam, polyolefin, 1.43 mm ODPair ConstructionFour pairs, each pair wrapped in polyester-aluminum foil (metal face outward),
providing 100% coveragePair Color Codes (2 wires/pair)1st White-Blue + Blue
2nd White-Orange + Orange
3rd White-Green + Green
4th White-Red + RedShieldEach pair Aluminum foil shielded/Mylar TapeOverall ShieldTinned-copper braid (providing 51% coverage minimum)Overall Diameter7.6 mm nominal, 8.1 mm maxOuter SheathHFFR,PVCPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.ApplicationData cable for high bandwidth, high speed applications.
10 Gigabit Ethernet over 100m. Individual and overall screening to meet strict Crosstalk requirements.
Backwards compatible with Cat 5e and Cat 6.
Electrical:DC ResistanceMax. 82 W/km at 20°CResistance Unbalance3% max. at 20°CMutual Capacitance43 pF/m nominal at 1 KHzCapacitance Unbalance1500 pF/km max. at 1 KHz (wire to ground)Impedance100 ± 15 W at 1 to 100 MHzVoltage Rating30 VrmsDielectric Strength700 VAC/one minuteTransfer Impedance (Zt) (Shielding Effectiveness)5 mW/m max. at 1-10 MHzVelocity of Propagation79-80% nominalPropagation Delay4.7 nS/m max @ 1 MHz
4.6 nS/m max @ 10 MHz
4.6 nS/m max @ 100 MHzPropagation Delay Skew15 nS/100 m max @ 1-600 MHz

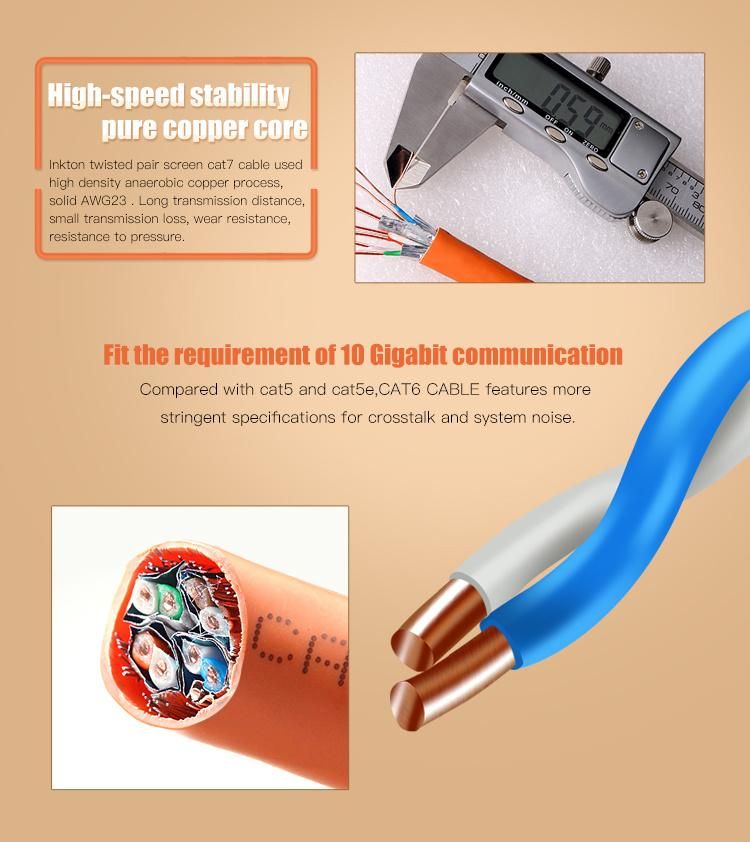

Details Images:










Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
