150c High Temp Cable XLPE Insulated Wire Cable 600V
Wuhan Elite Industry Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating
- Conductor Material：Pure Nickel or Copper Alloy
- Sheath Material：, Fiberglass
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：30~10AWG
- Material Shape：Round Wire
- Range of Application：Industrial
- Certification：ISO9001, CE, UL
- Brand：No Brand
- Colour：Black,White,Red,etc
- Package：100,200,305,610m Per Roll
- Conductor：Copper or Pure Nickel
- ISO：Yes
- Lead Time：10-15 Working Days
- Transport Package：in Roll, Spool+Carton
- Specification：AWG 24, 22, 20, 18, 16, 14, 12
- Trademark：no
- Origin：China
- HS Code：8544491900
- Production Capacity：10, 0000 Meters
Description
Size
AWG
Conductor
Construction
(No./mm)
Insulation
Thickness
(mm)
Diameter (mm)
MAX.COND. RESISTANCE
(Ω/km,20°C,DC)
30
7/0.10
≥0.76
1.8±0.2
381
28
7/0.127
1.9±0.2
239
26
7/0.16
2.0±0.2
150
24
11/0.16
2.2±0.2
94.2
22
17/0.16
2.3±0.2
59.4
20
26/0.16
2.5±0.2
37.4
18
16/0.254
2.7±0.2
23.5
16
26/0.254
3.1±0.2
14.6
14
41/0.254
3.6±0.2
8.96
12
65/0.254
4.1±0.2
5.64
10
105/0.254
4.7±0.2
3.54
Application
Used for internal wiring of
household ovens,
appliances,
lighting fixtures
and electronic equipment
as high-temperature lead wire.
Packing Methods

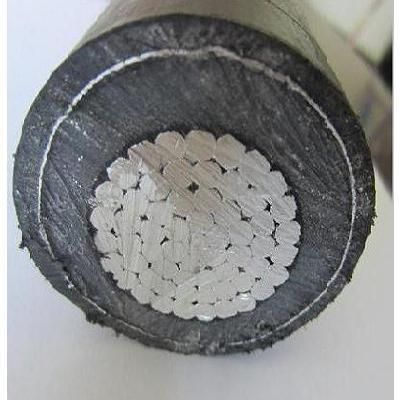

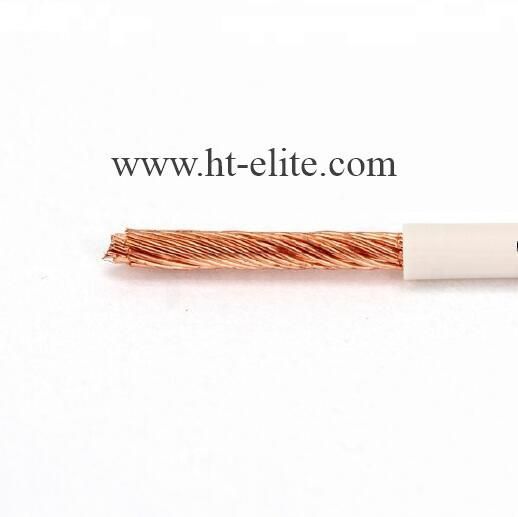

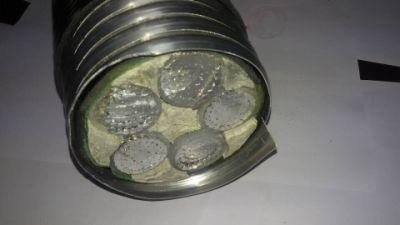

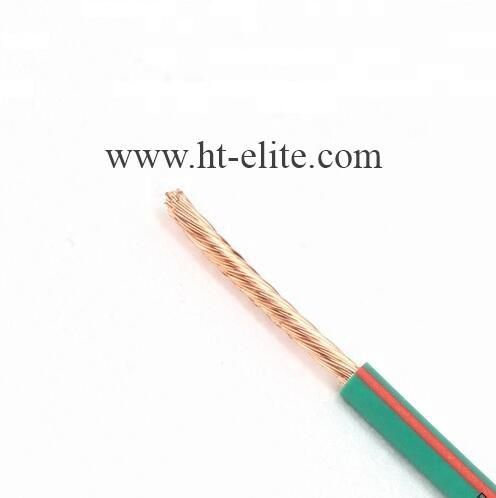

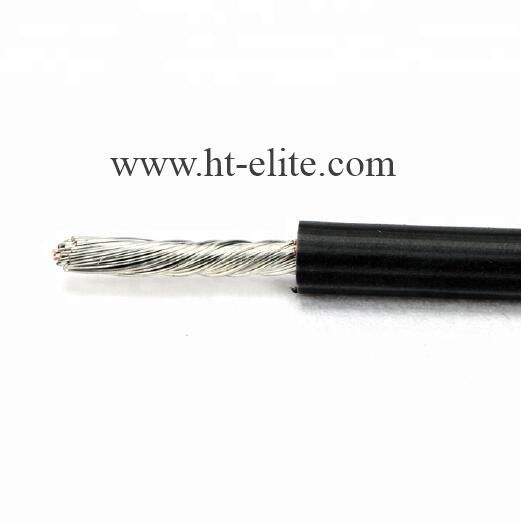

5. Photos for Reference
