Multi-Layer Fiberglass Braided High Temperature Wire 350c
Wuhan Elite Industry Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Heating
- Conductor Material:Pure Nickel or Copper Alloy
- Sheath Material:, Fiberglass
- Insulation Material:Silicone Rubber
Base Info
- Model NO.:10-24 AWG
- Material Shape:Round Wire
- Range of Application:Industrial
- Certification:ISO9001, CE, UL
- Brand:No Brand
- Colour:Black,White,Red,etc
- Package:100,200,305,610m Per Roll
- Conductor:Copper or Pure Nickel
- ISO:Yes
- Lead Time:10-15 Working Days
- Transport Package:in Roll, Spool+Carton
- Specification:AWG 24, 22, 20, 18, 16, 14, 12
- Trademark:no
- Origin:China
- HS Code:8544491900
- Production Capacity:10, 0000 Meters
Description
Size
mm2
Conductor
Structure
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Diameter
(mm)
0.5
16/0.2
0.4
0.2
2.1±0.1
0.75
24/0.2
0.4
0.2
2.4±0.1
1.0
32/0.2
0.4
0.2
2.5±0.1
1.5
30/0.25
0.45
0.2
2.9±0.1
2.5
49/0.25
0.45
0.2
3.3±0.2
4
56/0.3
0.45
0.2
3.9±0.2
6
84/0.3
0.45
0.2
4.5±0.2
Application
Used for internal wiring of
household ovens,
appliances,
lighting fixtures
and electronic equipment
as high-temperature lead wire.
3. Advantages:
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Provides dimensional consistency and uniformity.
Suitable for applications to -60°C
Resists braid pushback.

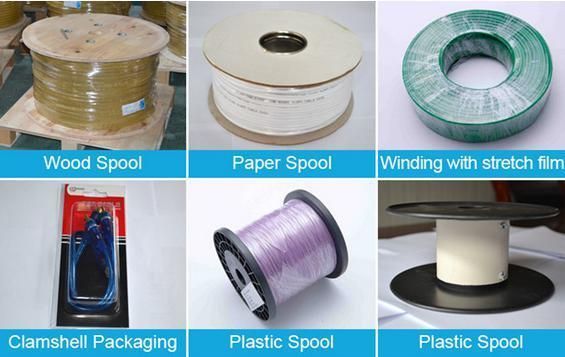

4. Packing Methods

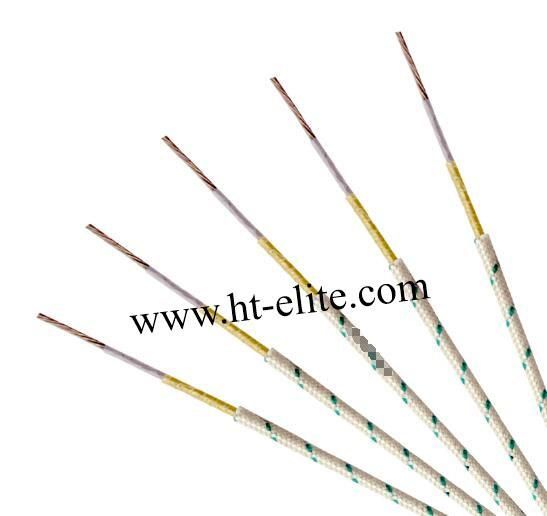

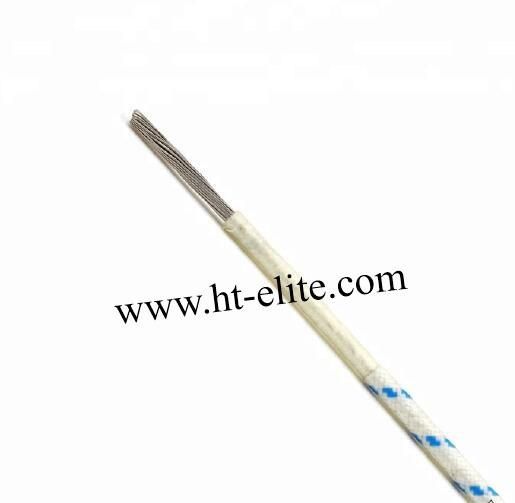

5. Photos for Reference
