• Model NO.：YJV
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：YJV
• Brand：Hongda
• Standard：IEC60227
• Transport Package：Steel Wooden Drum
• Specification：4*150mm
• Trademark：hongda
• Origin：Henan,China
• HS Code：8544492100
• Production Capacity：10km,Day

TYPE

NAME

Main Application

CU core

AL core

YJV/YJY

YJLV/YJLY

XLPE insulated,PVC/PE sheathed power cable

For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid

YJV22/YJV23

YJLV22/YJLV23

XLPE insulated,steel tape armored,PVC/PE sheathed power cable

For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force

YJV32/YJV33

YJLV32/YJLV33

XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable

For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force

YJV42/YJV43

YJLV42/YJLV43

XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable

For laying in water and seabed.Able to bear positive pressure and pulling force

6. Advantage:

a. Excellent electric and mechanical characteristics

b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant

c. Simple in structure,Convenient to use

d. Reduce costs

Rated Voltage,Core Numbers & Nominal Cross-section Area:

1st class

0.6/1

1.8/3

3.6/6

2nd class

1/1

3/3

6/6

1 Core

Section

area(mm2)

1.5-800

25-800

25-800

2 Core

Section

Area(mm2)

1.5-185

/

 /

3 Core

Section

area(mm2)

1.5-400

25-400

25-400

4 Core

Section

Area(mm2)

2.5-400

25-400

 /

5 Core

Section

area(mm2)

2.5-400

25-400

/

All above can do as every different standards OR as your special request

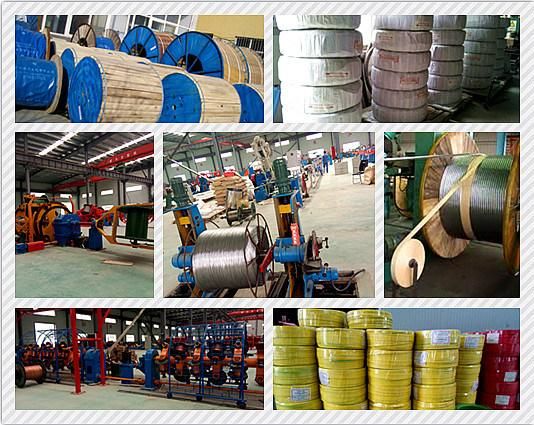

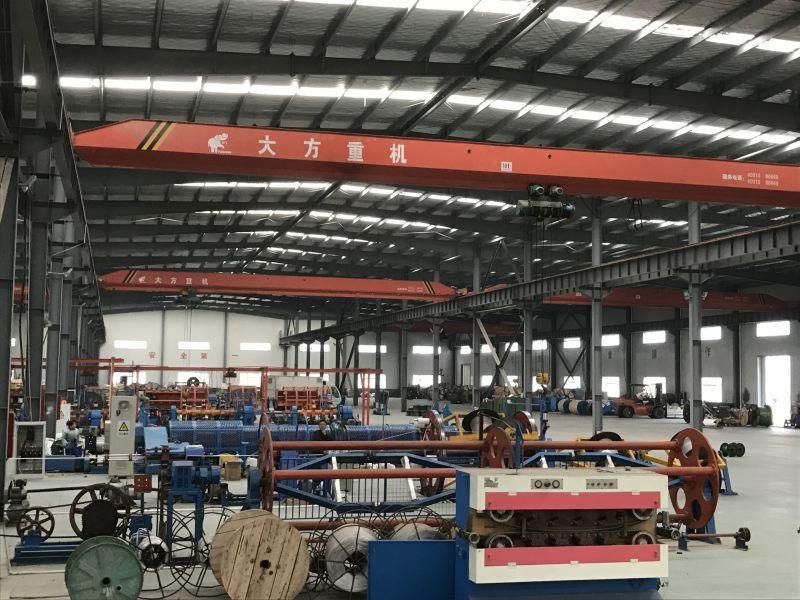

Hongda cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co.,  The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc

Our advantages
1.  With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2.  Good cost-control system, with highly-competitive prices;
3.  Strong and Professional R&D team to meet your specific needs;
4.  Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM

Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
