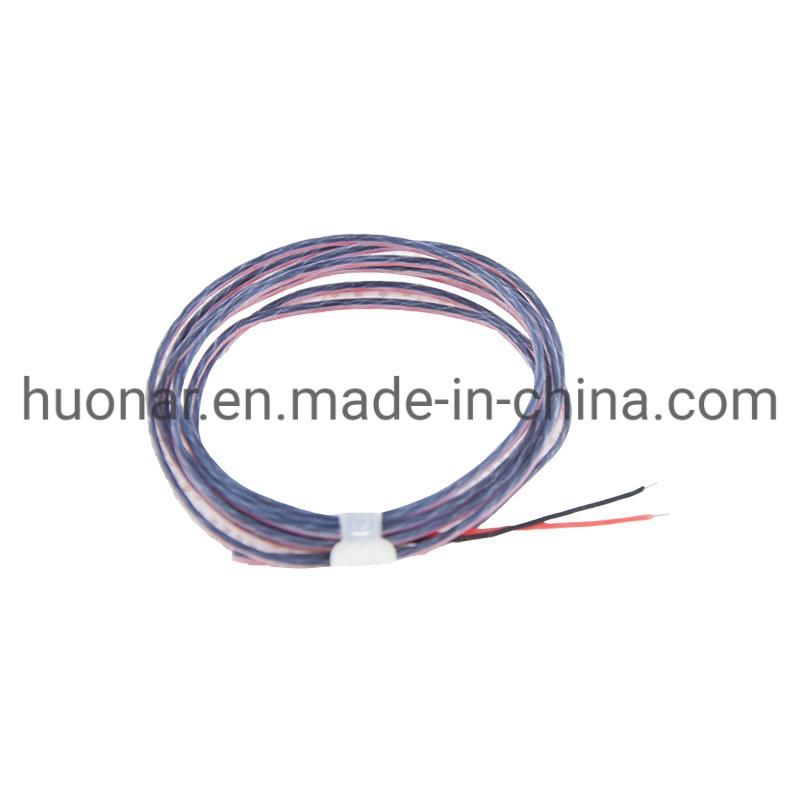

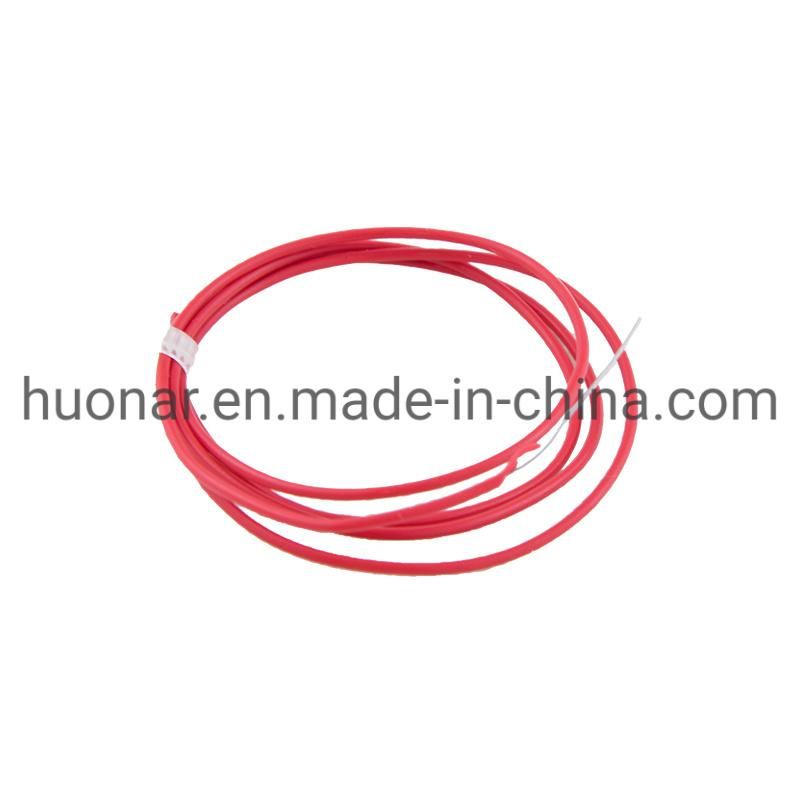

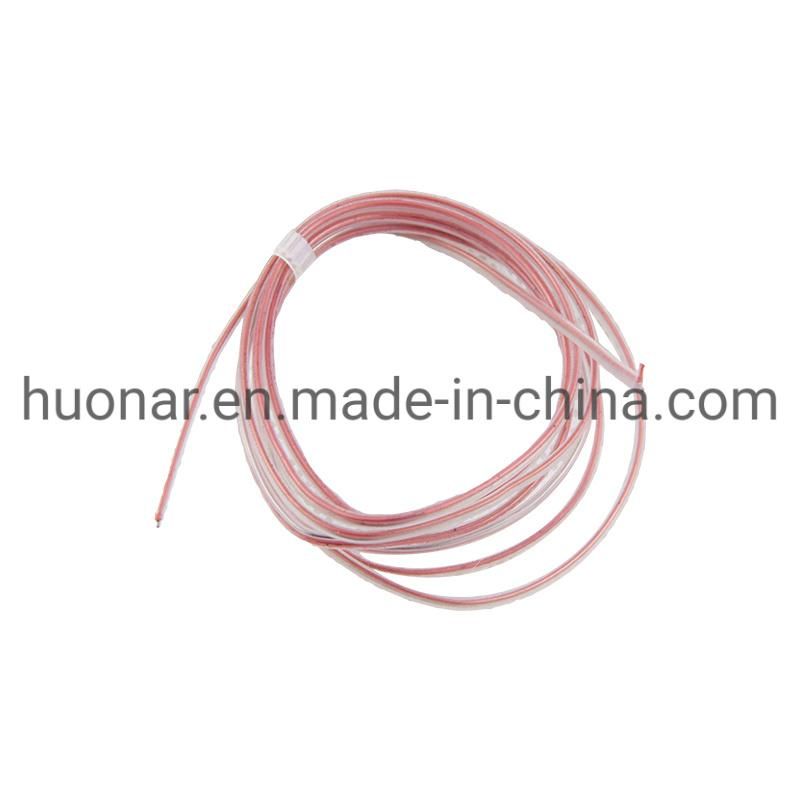

Nylon Jacket 600V Thhn Thwn Cable Wire Electric on Harness
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Copper Wire
- Sheath Material：PTFE or Silicone Resin Emulsion
- Insulation Material：Fiberglass
Base Info
- Model NO.：Nylon Jacket wire
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona

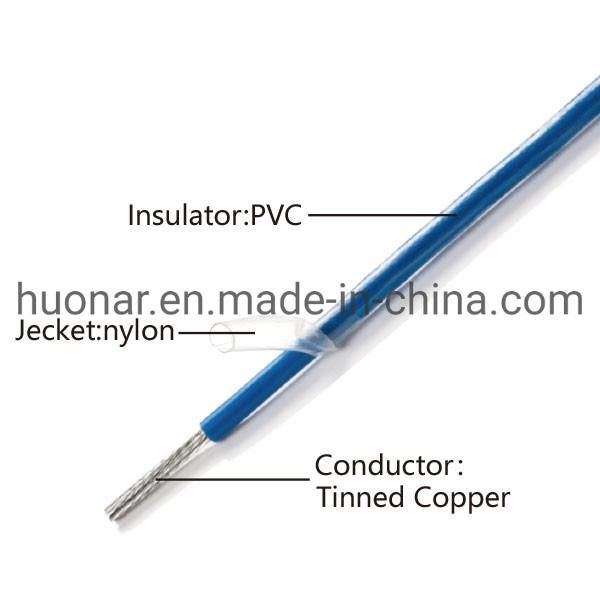

- Insulation：PVC
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-60-+105c
- Rated Voltage：600V
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Plan Low Voltage Wiring, High-Speed Road Inductanc
- Jacket：Nylon
- Od Tolerance：+,-0.1mm
- Transport Package：Wooded Case, Carton
- Specification：2.6-17.4mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
PackingSectional
Area mm² Conductor
Construction
NO.XΦmm Insulation
Thickness
mm Pleach
Thickness
mm Outer
Diameter
mm M/coil 0.2 12x0.15 0.35 0.15 1.60 200 0.3 16x0.15 0.35 0.15 1.70 200 0.4 23x0.15 0.35 0.15 1.90 200 0.5 28x0.15 0.35 0.15 1.95 200 0.6 19x0.20 0.35 0.15 2.00 200 0.75 19x0.23 0.35 0.15 2.15 200 1.0 19x0.26 0.35 0.15 2.30 200 1.2 19x0.28 0.40 0.15 2.60 100 1.5 19x0.32 0.40 0.15 2.70 100 2.0 19x0.37 0.40 0.15 3.00 100 2.5 49x0.26 0.40 0.15 3.55 100 3.0 49x0.28 0.45 0.15 3.70 100 4.0 77x0.26 0.45 0.15 4.30 100 5.0 98x0.26 0.45 0.18 4.70 100 6.0 77x0.32 0.50 0.18 5.10 100 8.0 98x0.32 0.50 0.18 5.60 100 10.0 126x0.32 0.50 0.18 6.20 100 13.0 133x0.36 0.60 0.22 7.10 100 16.0 209x0.32 0.60 0.22 7.80 100 20.0 247x0.32 0.60 0.22 8.40 100 25.0 209x0.39 0.60 0.22 9.20 100 35.0 285x0.39 0.60 0.22 10.4 100
