Rg58/Rg59/RG6 Coaxial Cable with F TV BNC Connectorquad-Shield RG6 Coaxial CCTV/CATV Camera Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Home Wire
- Voltage：Low and Medium Voltage Cable
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
- Wire Core Material：Bare Copper Wire
Base Info
- Model NO.：Rg58 Rg59 Rg6
- Certification：ISO, CCC, CE
- Model：RG6,U
- Brand：Feng Da
- Colour：Red,Green,Blue,Black,White,as Request
- OEM/ODM：Yes
- Flame Test：Yes
- Transport Package：Rolls or According to Customer′s Request
- Trademark：feiya
- Origin：Tianjin, China
- HS Code：8544422900
Description
Basic Info.
Model NO. Rg58 Rg59 Rg6 Certification ISO, CCC, CE Model RG6/U Brand Feng Da Colour Red/Green/Blue/Black/White/as Request OEM/ODM Yes Flame Test Yes Transport Package Rolls or According to Customer′s Request Trademark feiya Origin Tianjin, China HS Code 8544422900Product Description
Rg58/Rg59/RG6 Coaxial Cable with F TV BNC Connectorquad-Shield RG6 Coaxial CCTV/CATV Camera cable
Features:
- The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
- H-outer sheath = halogen-free material (HM2)
- RG-Coaxial types are in accordance with US-Military specifications MIL-C-17.
- RG/U: R=Radio, G=Guide, U=Utility
- FRNC = Flame Retardant Non-Corrosive

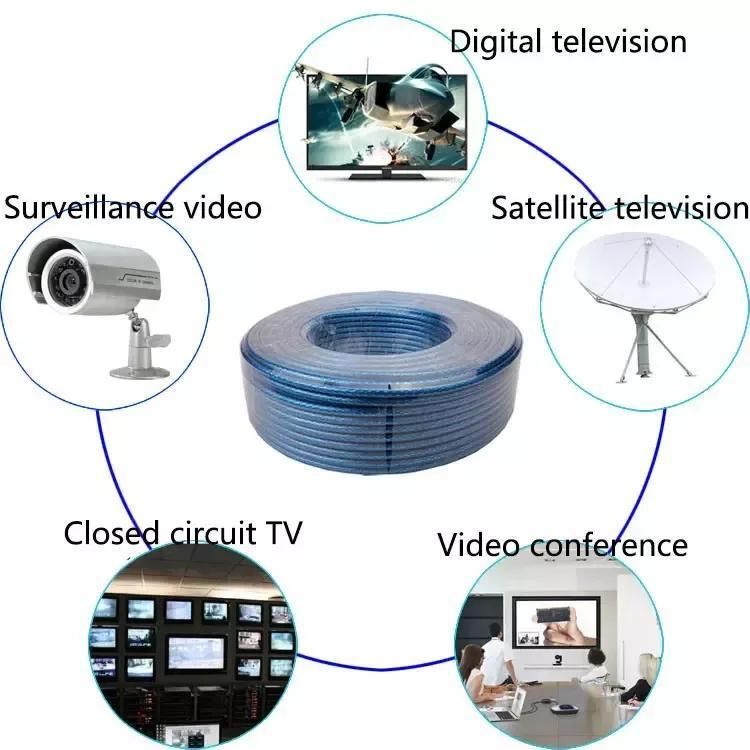

Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
Coaxial cables
| Inner conductor diameter mm | 7 x 0,4 Tinned copper | 19 x 0,2 Tinned copper | 1 x 0,6 Steel/copper, bare | 1 x 0,6 Steel/copper, bare | 1 x 0,6 Steel/copper, bare | 7 x 0,8 Copper, bare | 7 x 0,8 Silvered copper |
| Insulation Ø mm | 7,3 PE | 2,95 PE | 3,7 PE | 3,7 PE,hollow | 3,7 PE,hollow | 7,24 E | 7,24 PE |
| Outer conductor | Braid | Braid | Braid | Braid | 2 braids | Braid | 2 braids |
| Copper, bare | Tinned copper | Copper, bare | Copper, bare | Copper, bare,Tinned copper | Copper,bare | 2xsilvered copper | |
| Outer sheath | HM2 | HM2 | HM2 | HM2 | HM2 | HM2 | HM2 |
| Min. bending radius approx. mm | 50 | 25 | 30 | 30 | 30 | 50 | 50 |
| Temperature range °C | 35 to +80 | 35 to +80 | -35 to +80 | 35 to +80 | 50 to +70 | 35 to +80 | -35 to +80 |
| Copper weight kg/km | 58,0 | 29,0 | 28,0 | 28,0 | 48,0 | 85,0 | 120,0 |
| Outer Ø approx. mm | 10,3 | 5,4 | 6,4 | 6,4 | 6,9 | 10,3 | 10,8 |
| Weight approx. kg / km | 144 | 38 | 57 | 54 | 64 | 155 | 203 |

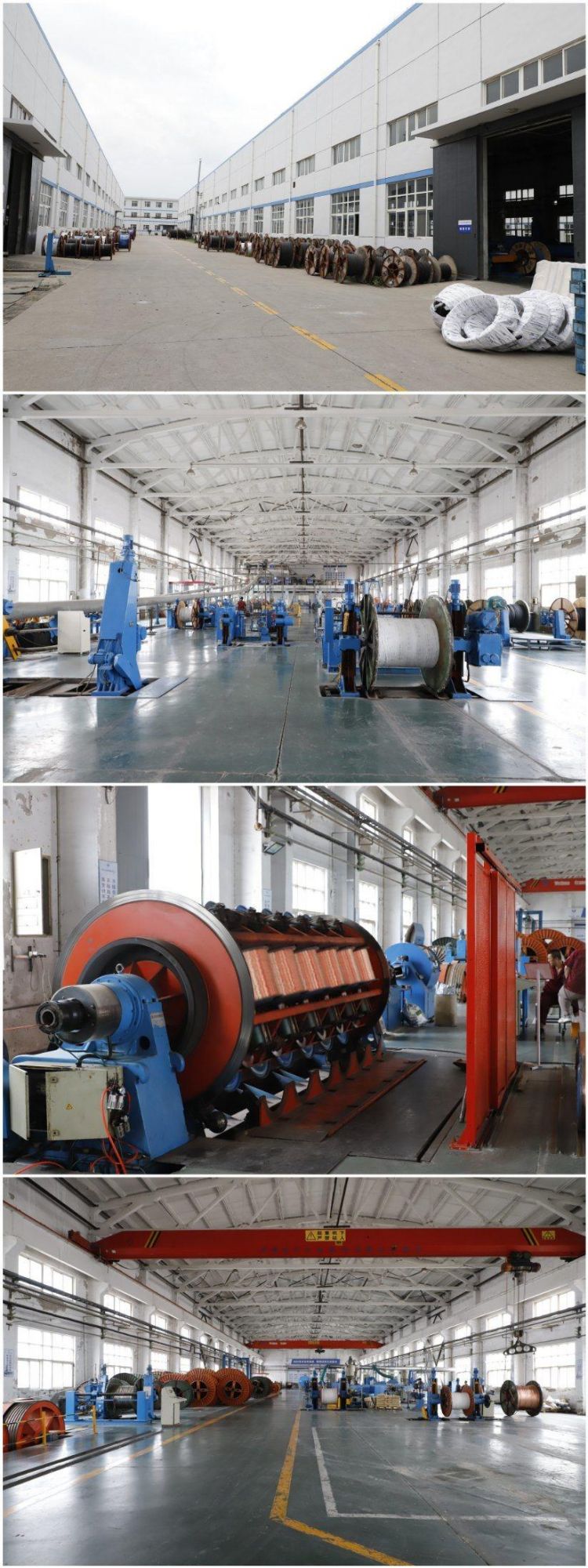

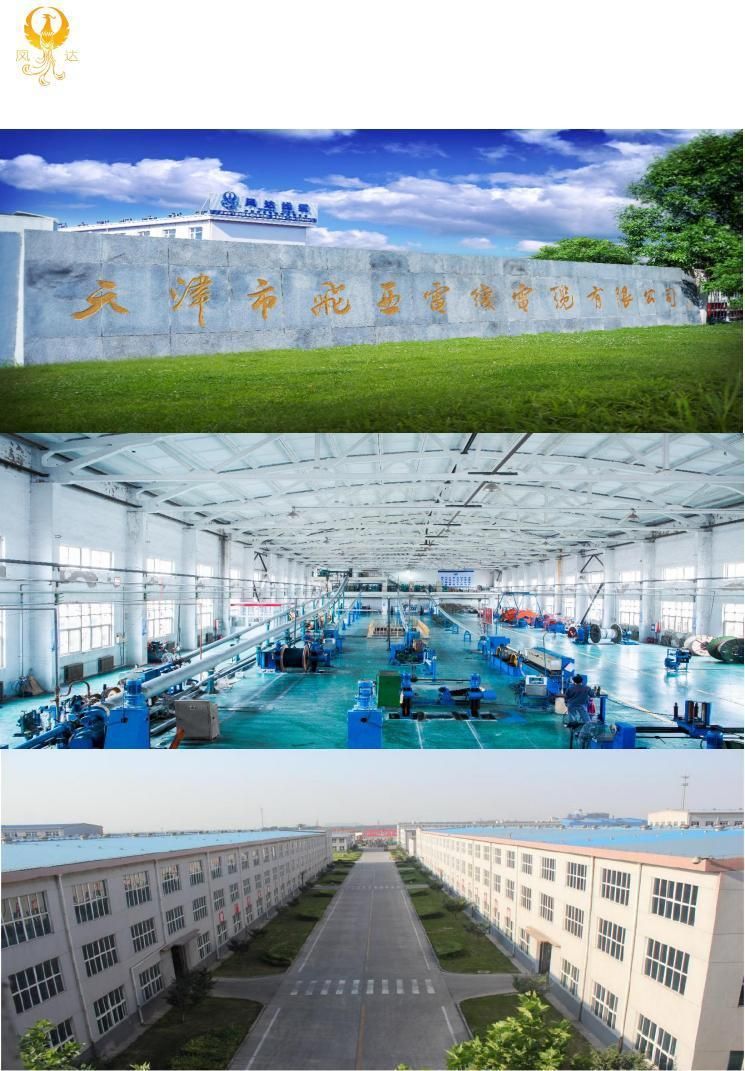

OUR FACROTY
OUR CASE
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (50%-90% as despot, the rest will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A:Tianjin in China
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
