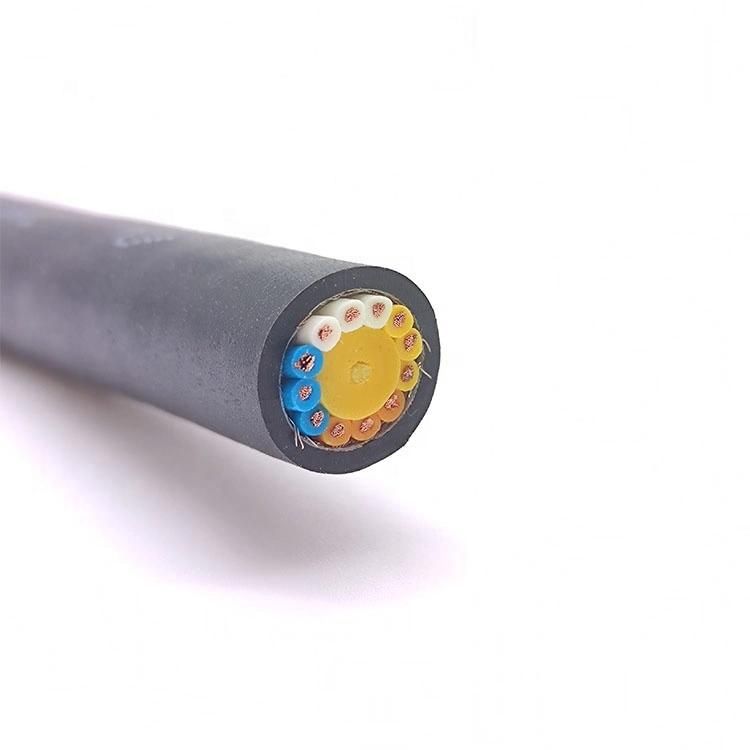

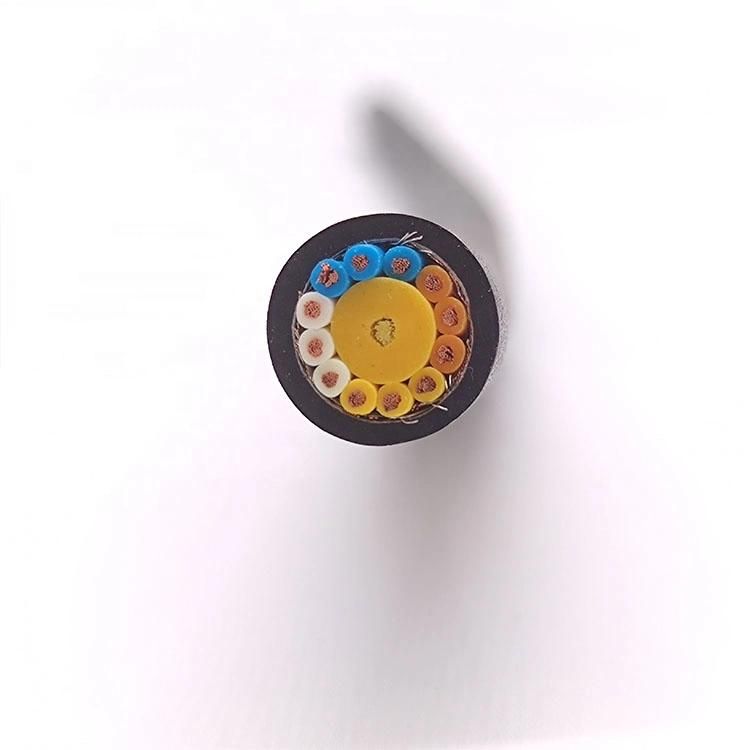

Trommelflex (K) Nshtou-J / (N) Shtou-J Reeling Cable Tkd Alternative

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Installation
  • Conductor Material：Copper
  • Sheath Material：Rubber
  • Insulation Material：Rubber

Base Info

  • Model NO.：TROMMELFLEX (K) NSHTOU-J , (N)SHTOU-J
  • Material Shape：Round Wire
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemTROMMELFLEX (K) NSHTOU-J / (N)SHTOU-J Reeling Cable TKD AlternativeConductorBare copper strandInsulationRubber compoundInner sheathSpecial rubber compoundAnti-torsion braidWide-meshed polyester braidOuter SheathSpecial rubber compoundOperat. temp. fixed min/max -40 °C / +80 °COperat. temp. moved min/max-25 °C / +80 °CTemp. at conductor +90 °CNominal VoltageUo/U: 0,6/1 kVColorOptionalCertificationCEApplicationReeling cable for winding operation, especially with tensile stress at the same time and/or torsional stress and/or compulsory cable direction. Suitable for dry, humid and wet rooms, for outdoor use and also on construction sites, in comercial and agricultural plants. For travelling up to 120 m/min.
