• Model NO.：VBV cable
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：Vvg Avvg Vbv Avbv
• Brand：Hongda
• Standard：GOST 31565 01.8.2.5.4
• Rated Voltage：6 Kv
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：10km,Day

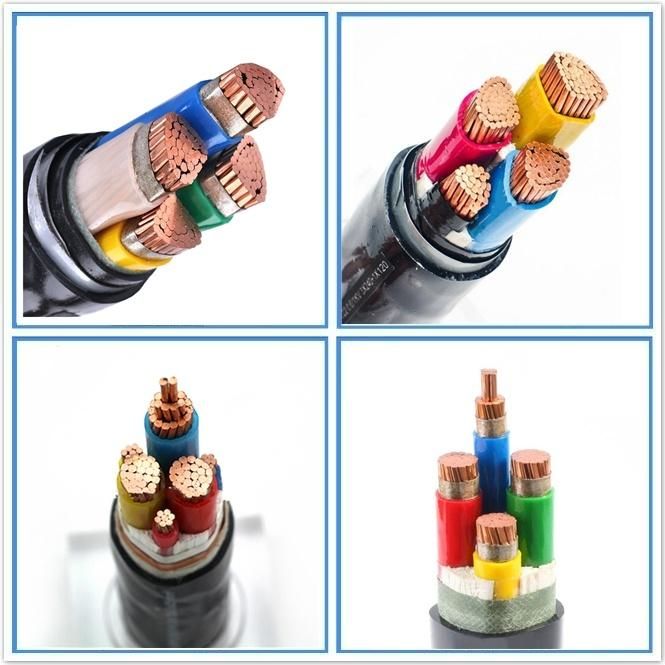

ConductorCopper or aluminum, single-wire or multi-wire core, of circular or sector-shaped form, of the 1 or 2 class according to GOST 22483.InsulationPVC-compound (color coded conductor)Core arrangementInsulated conductors of three-core cables are twisted in a cable coreInner sheathIt is made by extrusion with PVC-compound or chalk-filled non-cured rubber with the filling of outer gaps between insulated conductors. It is possible to fill the outer gaps between circular insulated cores with the bundles of non hygroscopic fiber or polymer materials with the lapping of fastening tape, on the top of which the expressional inner sheath is laid. It is allowed to wrap the cable core with the layer of tapes of polymer material, compatible with the materials of insulation and over sheath.TapingIt is made of tape or tapes of conductive paper or conductive, synthetic tape or of tapes of non-woven fabric.ScreenIs made of copper wires and a spirally imposed copper tape. It is allowed the taping of the screen with copper tapes.Separating layerOf polymer tape or non-woven fabric.BeddingFor types VBV, АVBV is made of PVC-compound.Cable armoringIt is laid helically with two steel, galvanized tapes. It is possible to overlap or longitudinally with PET or polypropylene tape.Over sheathPVC-compound.
Nominal voltage, kV6Ambient temperature during cable operation, °Сfrom - 50 to + 50Minimum bending radius, diameters of cablefor multi-wire12for single-wire15at installation with usage of a special template7,5The cables are laid at temperature (without preheat), °С, not below- 15

Type of current-carrying conductorNominal cross-section of conductor, mm²circularsector-shapedsingle-multi-single-multi-wirewirewirewireCopperfor single-wire cables16 - 5016 - 800--for multi-wire cables-16 - 240-50 - 240Aluminumfor single-wire cables16 - 24025 - 800--for multi-wire cables16 - 24025 - 24035 - 24035 - 240



TABLE 2

Minimum nominal cross-section of a copper screen

DesignationNominal cross-section, mm²Main conductor16-120150-300400 и болееScreen162535
