• Model NO.：ABC
• Wire Core Material：Aluminum Conductor
• Certification：ISO, CCC
• Model：ABC
• Brand：Hongda
• Standard：IEC
• Transport Package：on The Drum or on The Pallent
• Specification：10 16 25 35 50 70 95 120
• Trademark：hongda
• Origin：Henan
• HS Code：8544492100
• Production Capacity：10000m,Day

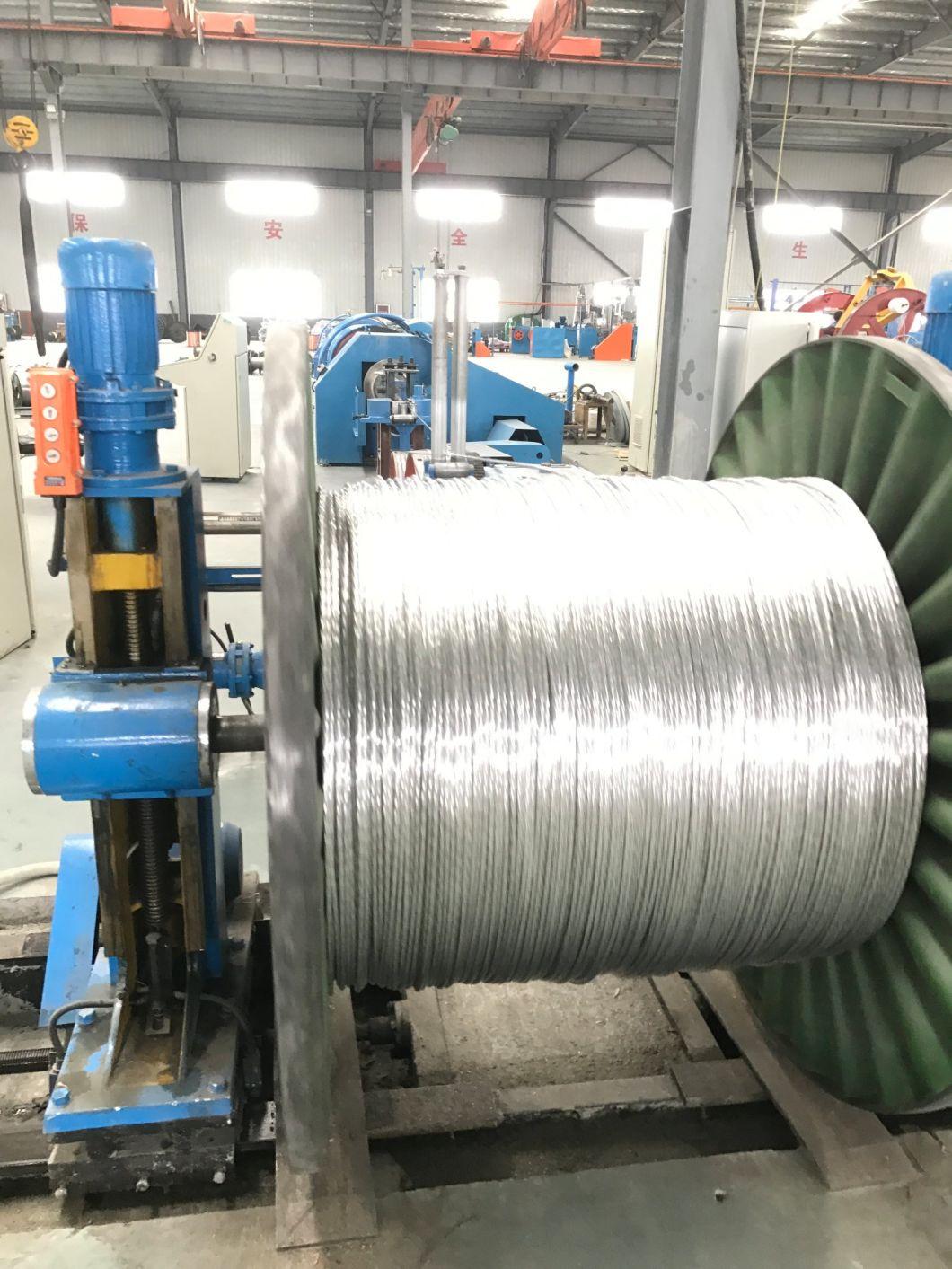

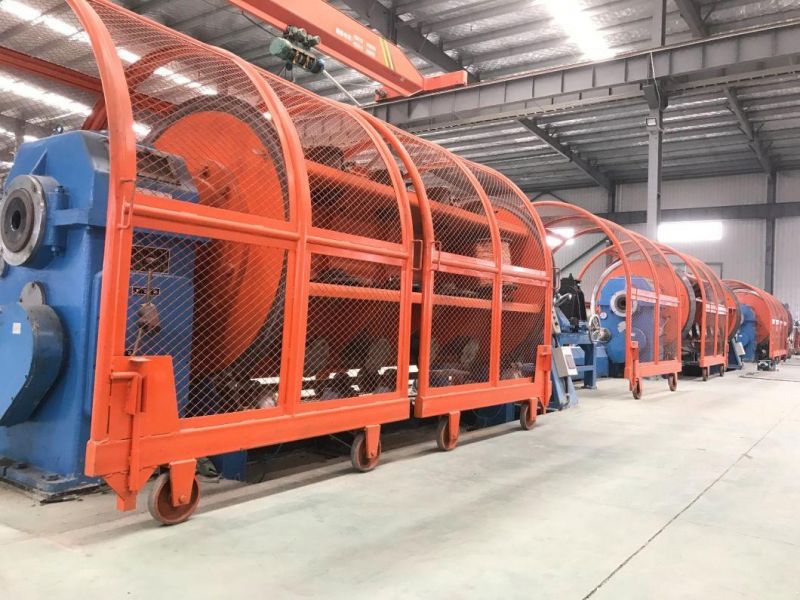

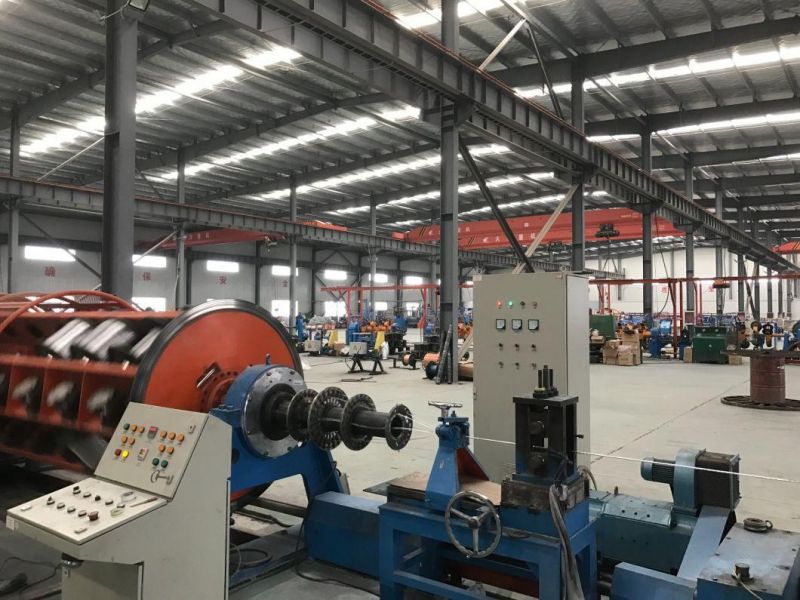

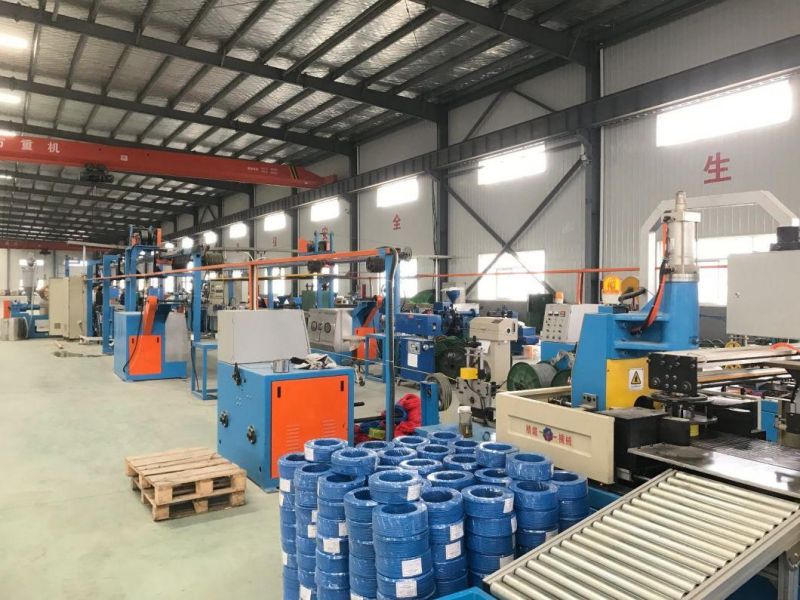

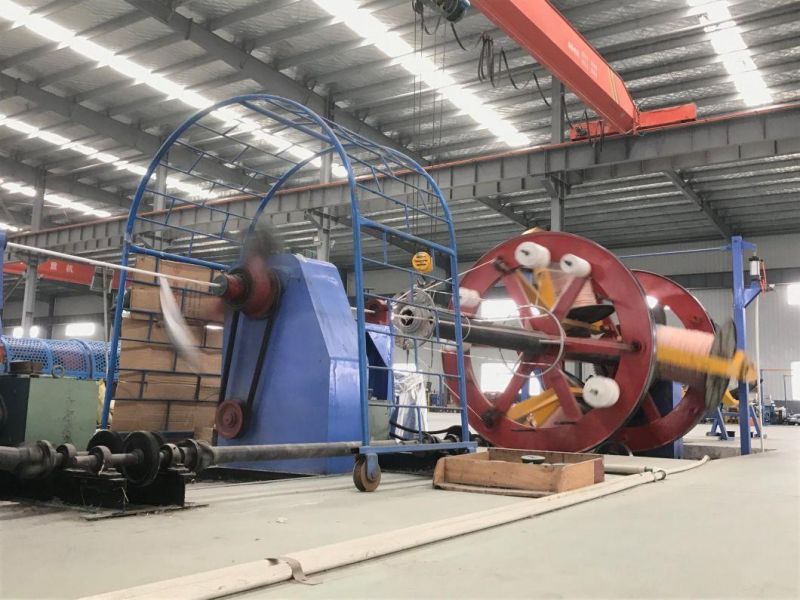

Aerial Bundled Cable, ABC Cable, Overhead cable, 0.6/1kV Aerial Bundle Overhead Aluminium XLPE Insulated ABC  Cable.

Voltage

0.6/1kV

Cores

1, 2, 3, 4, 5, 6

Range of Nominal cross section

10 mm² ~ 300 mm²

Application

A new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line.

Standard

NF C 33-209, IEC, BS, SABS, ASTM

Constructions

Conductor:

Aluminium, Alloy Aluminium, ACSR

Insulation:

XLPE, PE

Size

2 x 16 mm²

3×25 mm²+54.6 mm²+16 mm²

2 x 25 mm²

3×35 mm²+54.6 mm²+16 mm²

2 x 35 mm²

3×50 mm²+54.6 mm²+16 mm²

2 x 50mm²

3×70 mm²+54.6 mm²+16 mm²

4 x 16 mm²

3×70 mm²+70 mm²+16 mm²

4 x 25 mm²

3×95 mm²+70 mm²+16 mm²

4 x 35 mm²

3×120 mm²+70 mm²+16 mm²

Max. Operating Temperature

90 ºC

Packing

Steel drum or as per requirement

Remark

The cable can be of flame retardant, fire resistance, environment friendly or other property

1. Application of Service Drop Cable:
Service Drop Cable(ABC CABLE) are mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.

2. Type of Service Drop Cable:
Service Drop Cable(ABC CABLE) covers mainly three types:
Duplex Service Drop
Triplex Service Drop
Quadruplex Service Drop

The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor, etc. And we can still produce the cables according to the request of customers.

3. Detaild Introduction of Service Drop Cable
3.1 Duplex Service Drop

Applications
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.

Construction
Concentic strand or cmpressed 1350-H19 conductor, polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.

3.2 Triplex Service Drop
Applications
To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.

Construction
Concentic strand or cmpressed 1350-H19 conductor, polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.

3.3 Quadruplex Service Drop
Applications
Used to supply 3 phase power, usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

Construction
Conductors are concentrically standed, compressed 1350-H19 aluminium. Insulated with either polyethylene or XLPE. Neutral messengers aer concentrically stranded 6210 AAAC, AAC or ACSR.

Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

ABC cable

16 mm 2 * 2C

( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70

16 mm 2 * 4C

3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70

25 mm 2 * 2C

( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12

25 mm 2 * 4C

3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12

35 mm 2 * 2C

( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50

35 mm 2 * 4C

3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50

50 mm 2 * 2C

( AL19/1.78+PE O.D.11.7) + AL19/1.78

50 mm 2 * 4C

3*(AL19/1.78+PE O.D.11.7) + AL19/1.78

70 mm 2 * 2C

( AL19/2.12+PE O.D.13.5) + AL19/2.12

70 mm 2 * 4C

3*(AL19/2.12+PE O.D.13.5) + AL19/2.12

95 mm 2 * 2C

( AL19/2.50+PE O.D.15.8) + AL19/2.50

95 mm 2 * 4C

3*(AL19/2.50+PE O.D.15.8) + AL19/2.50

Cross Section of Conductor
(mm2)

Min.Nos. of Wires for Conductor
(mm)

Insulation Thickness
(mm)

Average Max. O.D.per Single-core
(mm)

Max.Conductor Resistance at 20ºC
(Ω/km)

Min Insulated Resistance at Rated Working Temperature
(MΩ.km)

Cable Tensile Breaking Force

2x10

6

1.00

6.5x13.0

3.08

0.0067

0.67

1650

2x16

6

1.20

8.0x16.0

1.91

0.0065

0.65

2512

2x25

6

1.20

9.4x18.8

1.2

0.0054

0.54

3762

2x35

6

1.40

11.0x22.0

0.868

0.0054

0.54

5177

2x50

6

1.40

12.3x24.6

0.641

0.0046

0.46

7011

2x70

12

1.40

14.1x28.2

0.443

0.004

0.4

10354

2x95

15

1.60

16.5x33.0

0.32

0.0039

0.39

13727

2x120

15

1.60

18.1x36.2

0.252

0.0035

0.35

17339

2x150

15

1.80

20.2x40.4

0.206

0.0035

0.35

21033

2x185

30

2.00

22.5x45.0

0.164

0.0035

0.35

26732

2x240

30

2.20

25.6x51.2

0.125

0.0034

0.34

34679

4x10

6

1.00

6.5x26.0

3.08

0.0067

0.67

1650

4x16

6

1.20

8.0x32.0

1.91

0.0065

0.65

2512

4x25

6

1.20

9.4x37.6

1.2

0.0054

0.54

3762

4x35

6

1.40

11.0x44.0

0.868

0.0054

0.54

5177

4x50

6

1.40

12.3x49.2

0.641

0.0046

0.46

7011

4x70

12

1.40

14.1x56.4

0.443

0.004

0.4

10354

4x95

15

1.60

16.5x66.0

0.32

0.0039

0.39

13727

4x120

15

1.60

18.1x72.4

0.252

0.0035

0.35

17339

4x150

15

1.80

20.2x80.8

0.206

0.0035

0.35

21033

4x185

30

2.00

22.5x90.0

0.164

0.0035

0.35

26732

4x240

30

2.20

25.6x102.4

0.125

0.0034

0.34

34679
