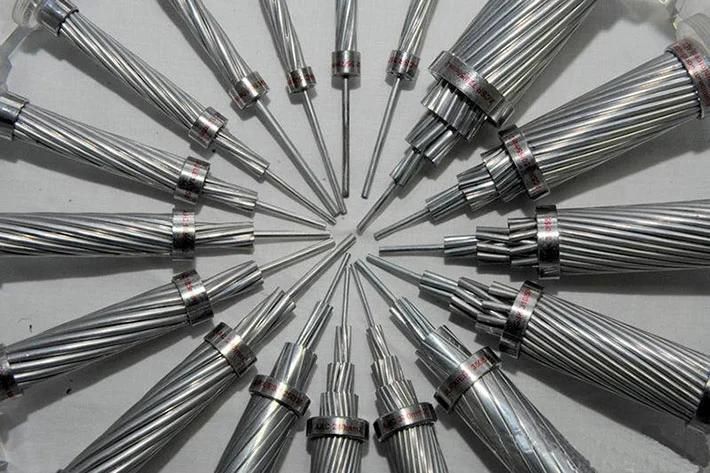

Overhead Conductor ACSR Cable, Aluminum Conductor Steel Reinforced
Luoyang Sanwu Cable Co., Ltd.- Application：Overhead
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：ACSR
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：ACSR
- Brand：Dayuan
- Transport Package：Wooden Drum
- Specification：1.1*1.1*0.8m,roll 1.8*1.8*1.1m,roll
- Trademark：Luoyang dayuan cable
- Origin：Luoyang City, Henan Province, China
- HS Code：7614100000
- Production Capacity：8000kilometers,Month
Description
Corefficient
of Linear
ExpansionMM² MM MM² MM kg/km Ω/km daM hbar /°C Mosquito 35 7/2.59 37 7.8 101 0.7762 603 5900 23×10-6 Ant 50 7/3.10 52.83 9.3 145 0.5419 828 5900 23×10-6 Fly 60 7/3.40 63.55 10.2 174 0.4505 990 5900 23×10-6 Wasp 100 7/4.39 106 13.17 290 0.2702 1600 5900 23×10-6 Homet 150 19/3.25 157.6 16.25 434 0.1825 2570 5600 23×10-6 Chafer 200 19/3.78 213.2 18.9 587 0.1349 3240 5600 23×10-6 Cockroach 250 19/4.22 265.7 21.1 731 0.1083 4040 5600 23×10-6 Butterfly 300 19/4.65 322.7 23.25 888 0.08916 4875 5600 23×10-6 Centipede 400 37/3.78 415.5 26.46 1145 0.06944 6310 5600 23×10-6
Factory Address:
Yichuan Electricity Industry zone, Luoyang City, Henan Province, China

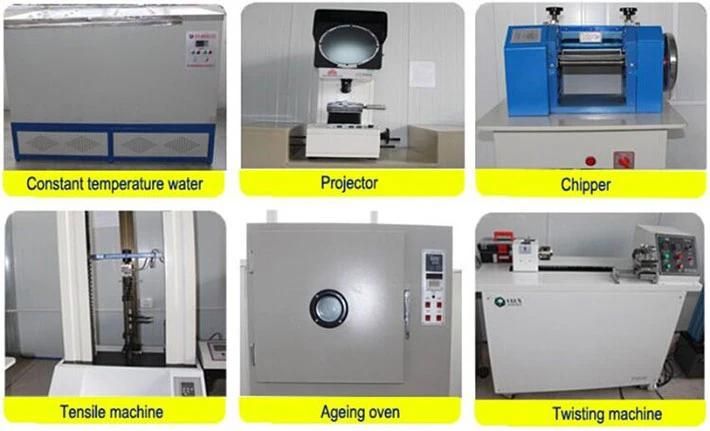

Test Machine:
extruding machine, cable-former, drawbench and so on.

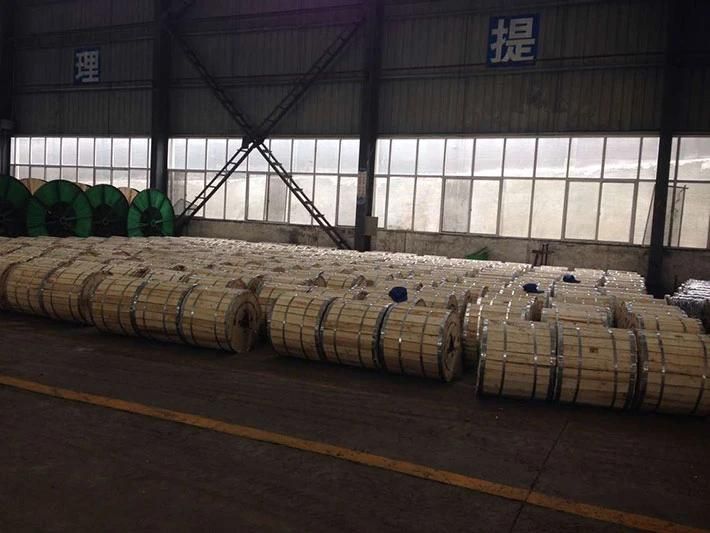

Package:
Wooden drum or 100m/roll
Customer:
American, Australia, India, South Africa, South America...
Our Principles:
1. Quality first, customer first, safety first
2. Better service, faster delivery
3. Equal and mutual benefit
4. Honest and professional
Why choose us?
1. Swift and professional response
2. Patient and trusty
3. Severe quality control system
4. On-time delivery
Contact
Leo Liu
Department manager
International Trade Department
Luoyang Asian Sun Industrial Group Co., Ltd
=================================
Web: http://dycable.en.made-in-china.com
=================================
