CCTV Coaxial Cable Rg59+2c Power Siamese Cable

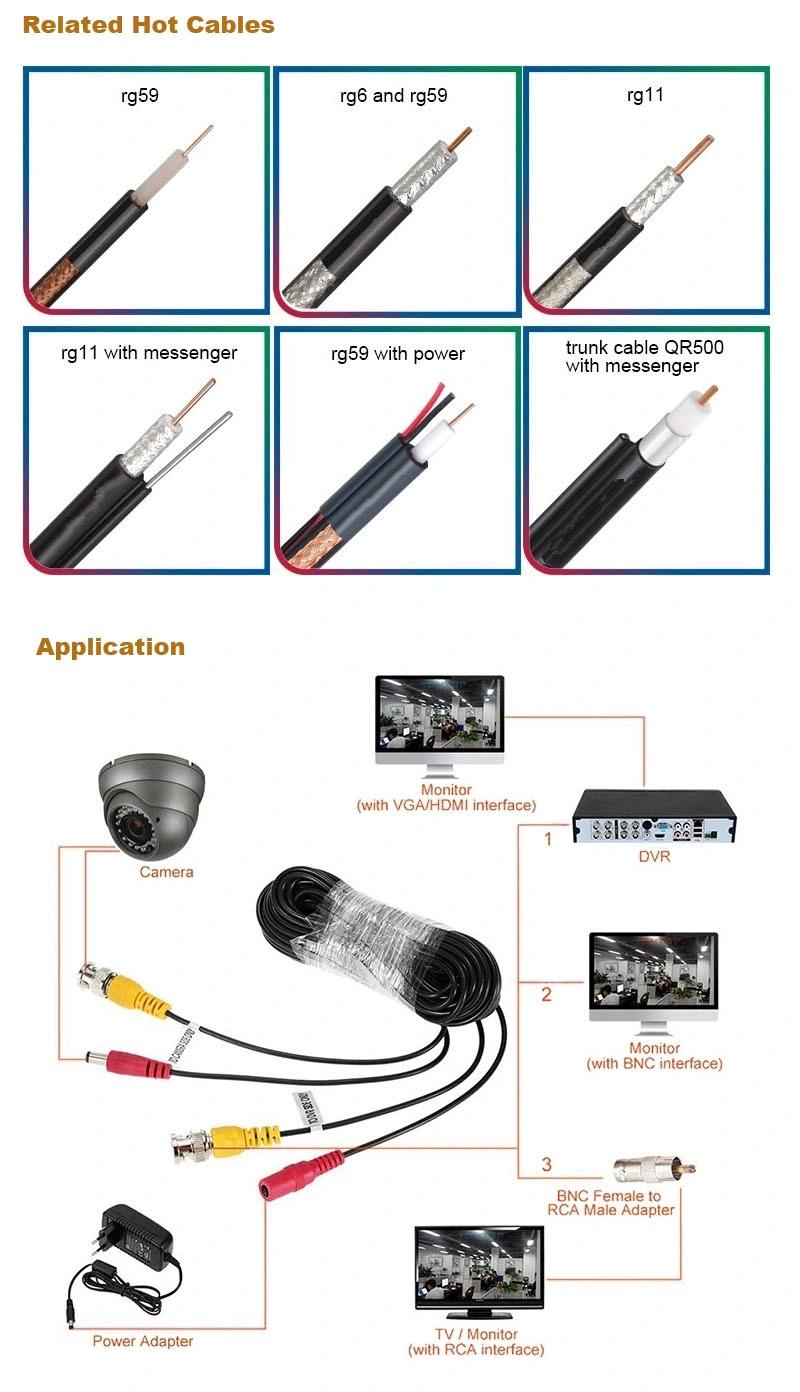

Hangzhou Chuangxiang Cable Co., Ltd.- Application:Multimedia, DVD Player, Speaker, Monitor, Game Player
- Color:Black
- Type:Coaxial
- Species:Coaxial Cable
- Connector:HDMI
- Material Shape:Round Wire
Base Info
- Model NO.:RG59
- Wire Core Material:Bare Copper Wire
- Certification:RoHS, CE, ISO9001, CCC
- Brand:Cx-Cable
- Conductor:Bc,CCS
- Insulation:Foam PE,Solid PE
- First Shield:Al Foil
- Second Shield:Al Alloy Braiding
- Jacket:PVC,PE
- Jacket Color:According to Customers
- Test Report:Provided
- Power Cable:Bc,CCA
- Transport Package:305m,Wooden Reel
- Specification:CE,SGS,ROHS,ISO
- Trademark:OEM or CX-Cable
- Origin:Hangzhou Zhejiang
- HS Code:8544200000
- Production Capacity:20000boxes,Per Month
Description
Basic Info.
Model NO. RG59 Wire Core Material Bare Copper Wire Certification RoHS, CE, ISO9001, CCC Brand Cx-Cable Conductor Bc/CCS Insulation Foam PE/Solid PE First Shield Al Foil Second Shield Al Alloy Braiding Jacket PVC/PE Jacket Color According to Customers Test Report Provided Power Cable Bc/CCA Transport Package 305m/Wooden Reel Specification CE/SGS/ROHS/ISO Trademark OEM or CX-Cable Origin Hangzhou Zhejiang HS Code 8544200000 Production Capacity 20000boxes/Per MonthProduct Description

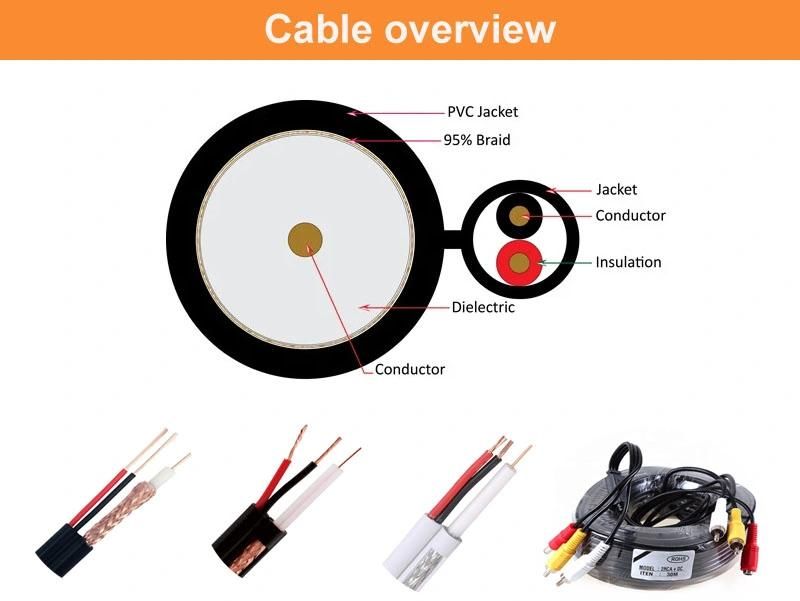

CCTV Cable RG59+2C with high quality1.Construction
Product Description: |
1) Center conductor:BC,TC,CCA,CCS |
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil are available |
3) Braiding wire:Al,BC,,TC,CCA,CCS Available |
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available |
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available |
6) Braiding coverage:Between 30-97% |
7) Jacket: PE/PVC |
8) Power Cable:BC/CCA |
2.Performance
Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.58 dB | 2.65 dB |
55 MHz | 1.60 dB | 5.25 dB |
83 MHz | 1.95 dB | 6.40 dB |
187 MHz | 2.85 dB | 9.35 dB |
211 MHz | 3.05 dB | 10.00 dB |
250 MHz | 3.30 dB | 10.82 dB |
300 MHz | 3.55 dB | 11.64 dB |
350 MHz | 3.85 dB | 12.63 dB |
400 MHz | 4.15 dB | 13.61 dB |
450 MHz | 4.40 dB | 14.43 dB |
500 MHz | 4.66 dB | 15.29 dB |
550 MHz | 4.90 dB | 16.08 dB |
600 MHz | 5.10 dB | 16.73 dB |
750 MHz | 5.65 dB | 18.54 dB |
865 MHz | 6.10 dB | 20.01 dB |
1000 MHz | 6.55 dB | 21.49 dB |

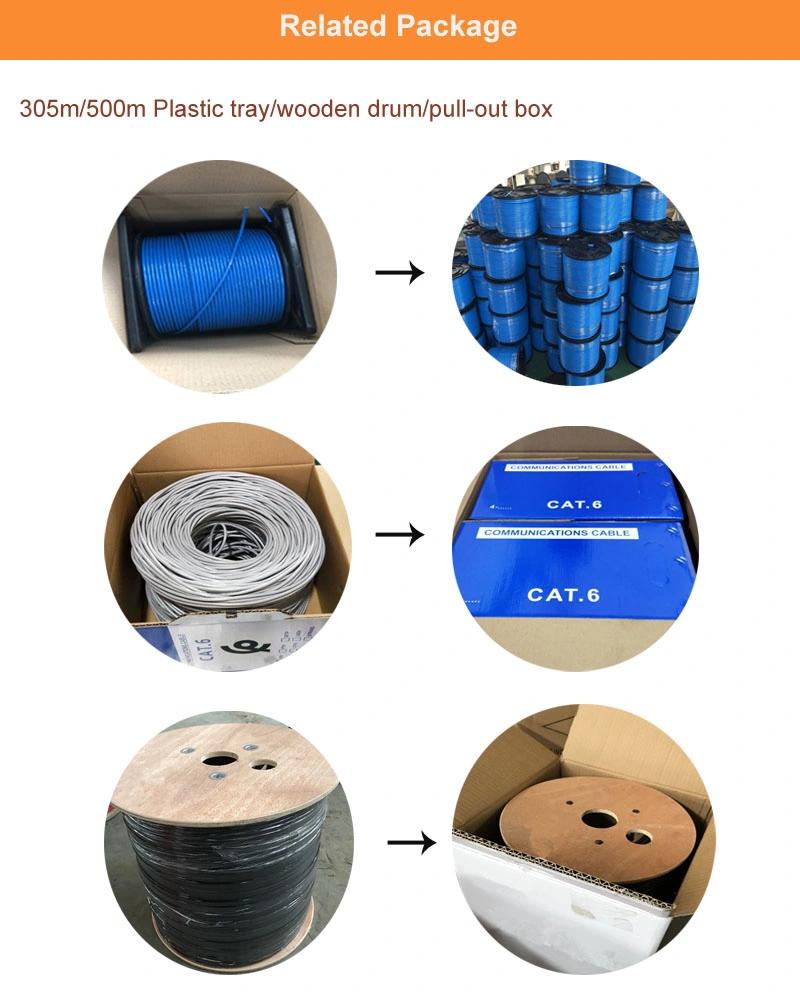

3.Packing
Packing Details |
1) Packing Lengths:100m/roll, 200m/roll, 305m/roll, Other lengths available according to client's request; |
2) Inner packing: Wooden reel, plastic reel, and paper reel available. |
3) Outer packing: Carton box, pull out box, pallet available. |
4) Other packing available according to client's request |
