CATV & CCTV Communication 75 Ohm Coaxial Cable Rg59 Siamese Cable
Hangzhou Xingfa Technology Co., Ltd.- Application：Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Cable
- Certification：ISO ETL CE RoHS Reach
- Center Conductor：Copper Clad Steel,Solid Bare Copper
Base Info
- Model NO.：Rg59-5
- Dielectric：Foam PE or Solid PE
- Shield：Al Foil or Bonded Al Foil
- Braiding Wire Material：Al or BC or Tinned Copper
- Jacket：PVC
- Color：Black or Per Customers′ Special Requirement
- Certificate：ISO9001, CE, ETL, RoHS, REACH, BV
- Jelly/APD：Per Customers′ Special Requirement
- Transport Package：100m,Roll, 200m,Roll, 305m,Roll, Wooden Plastic
- Specification：ISO CE RoHS SGS REACH BV
- Trademark：ZHONGLI or OEM
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：18000 Kilometer,Month
Description
One-Jacket Siamese cable consists of two cables: 95 % coverage RG59U video cable and 2 conductor 18 gauge electrical cable all in one PVC jacketed cables. This type cable is great for use with CCTV equipment. All the wires you need to connect your camera are with in one cable. Therefore eliminating the need for two separate cables for the power and video. This cable is easy to run and it will look more esthetic when the installation is complete. It will also save you a considerable amount of time during installation.

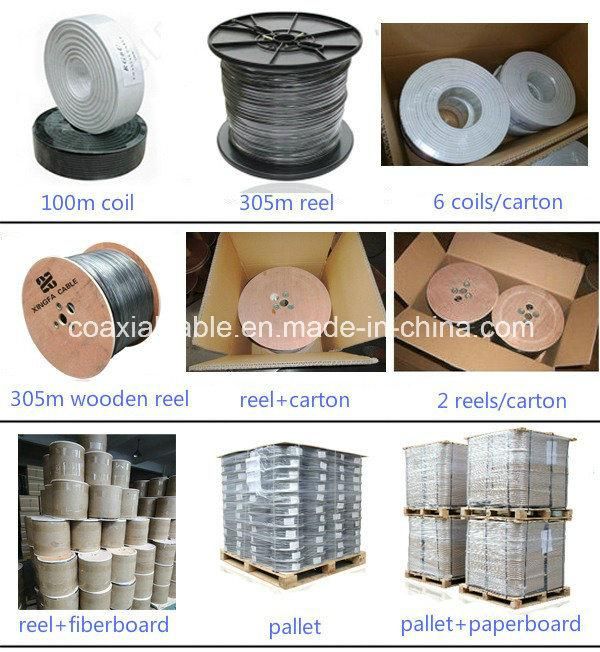

2.Packing:
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
3.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

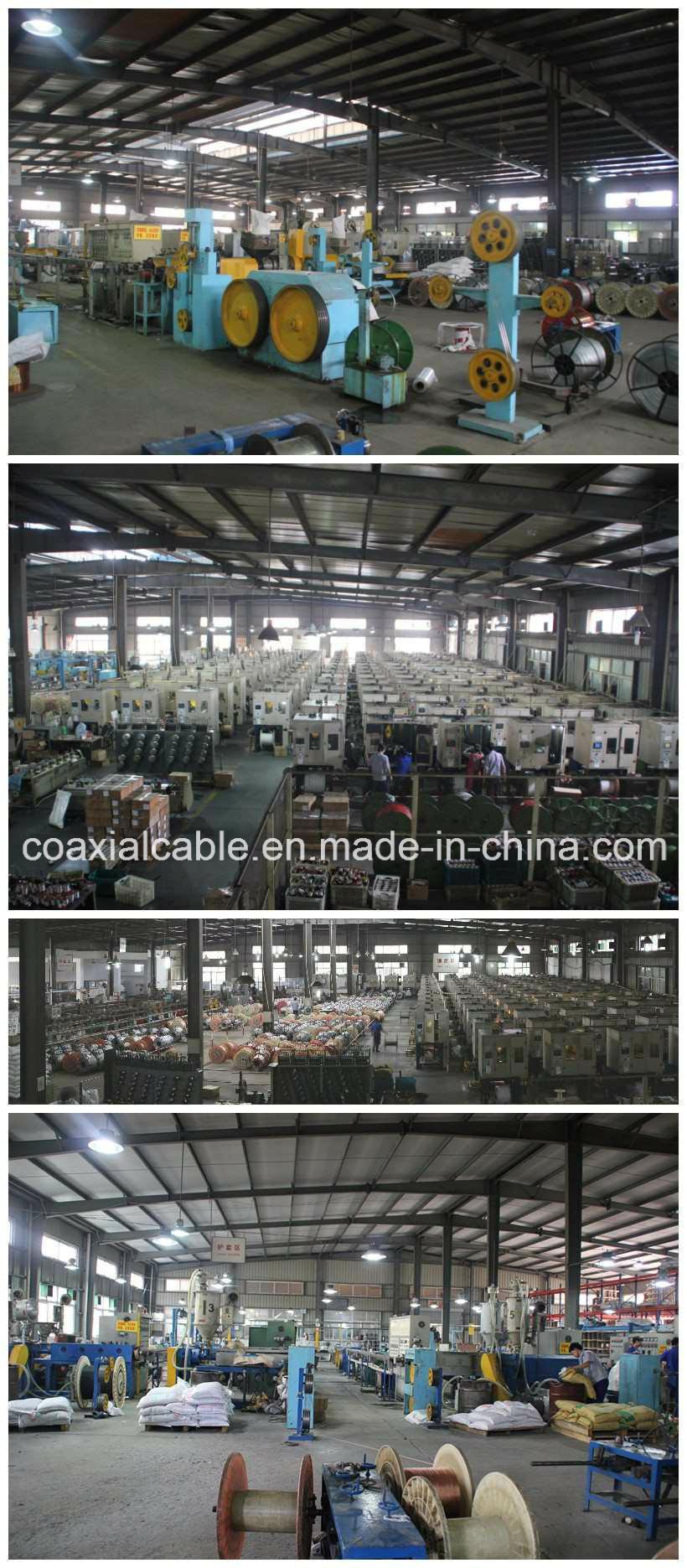

This is our factory pictures below.
4.Other Types
BC: Bare Copper CCS: Copper Clad Steel
TC: Tinned Copper CCA: Copper Clad Aluminum
1) RG59 Coaxial Cable 75ohm Dual shield(standard)
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket
2) RG59 Coaxial Cable 75ohm Tri-shielded
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Al Foil+6.10±0.10mm PVC Jacket
3) RG59 Coaxial Cable 75ohm Quad Shield
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +6.70+0.10mm PVC Jacket
4) RG59 Coaxial Cable 75ohm With Messenger
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket+1.02mm Messenger
5) Customers'specifications are welcomed
