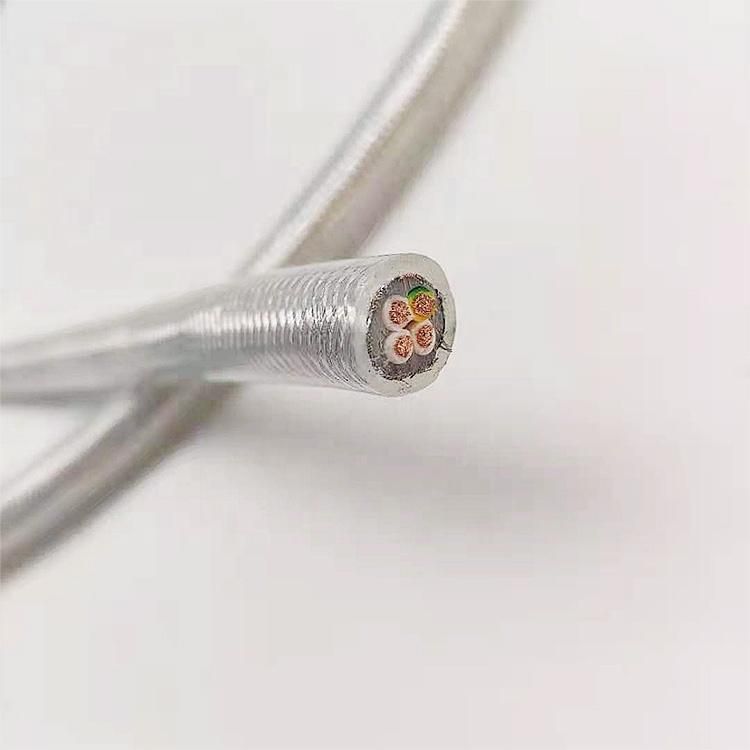

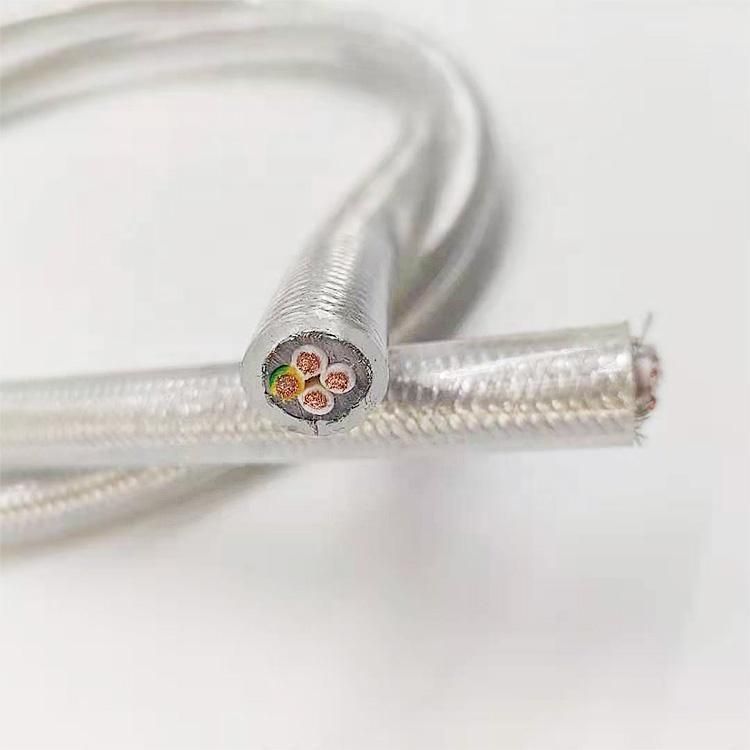

Opvc-Jz Cable for Lossless Data and Signal Transmission in Electrical Facilities 300/500V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：OPVC-JZ Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemOPVC-JZ Cable ConductorCopper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5InsulationPVCInner sheathPVCScreenTinned copper braid shield, weave density of greater than 85%Outer sheathPVCCore NumberMulticores (As client's requirement)Rated voltageUo/U: 300/500VTest Voltage4000VTemperatureoperat. temp. fixed min/max -40 °C / +80 °C
operat. temp. moved min/max -15 °C / +70 °CColorOptionalApplicationPower, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground.
