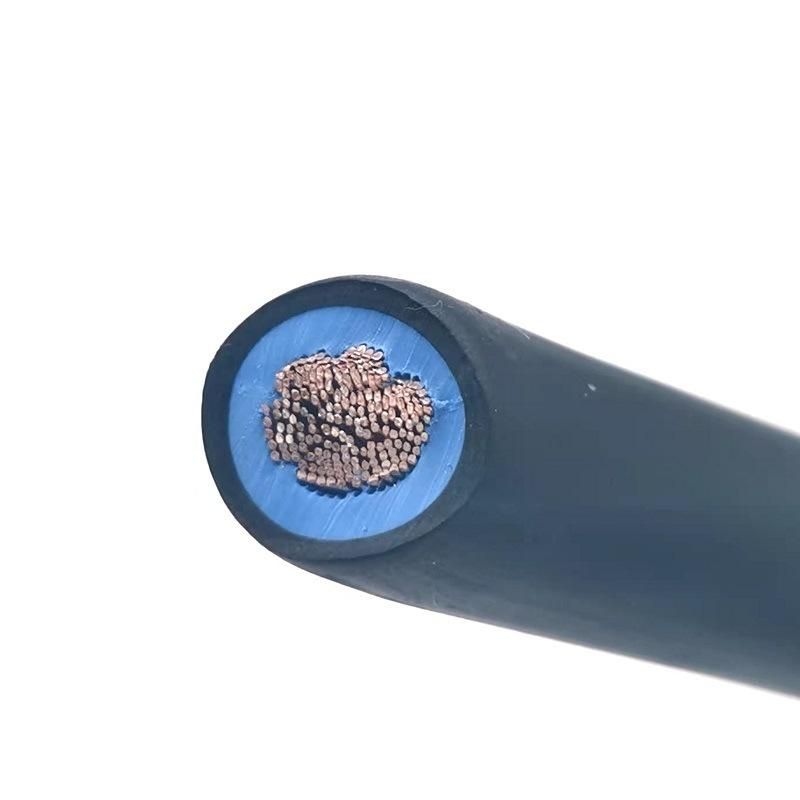

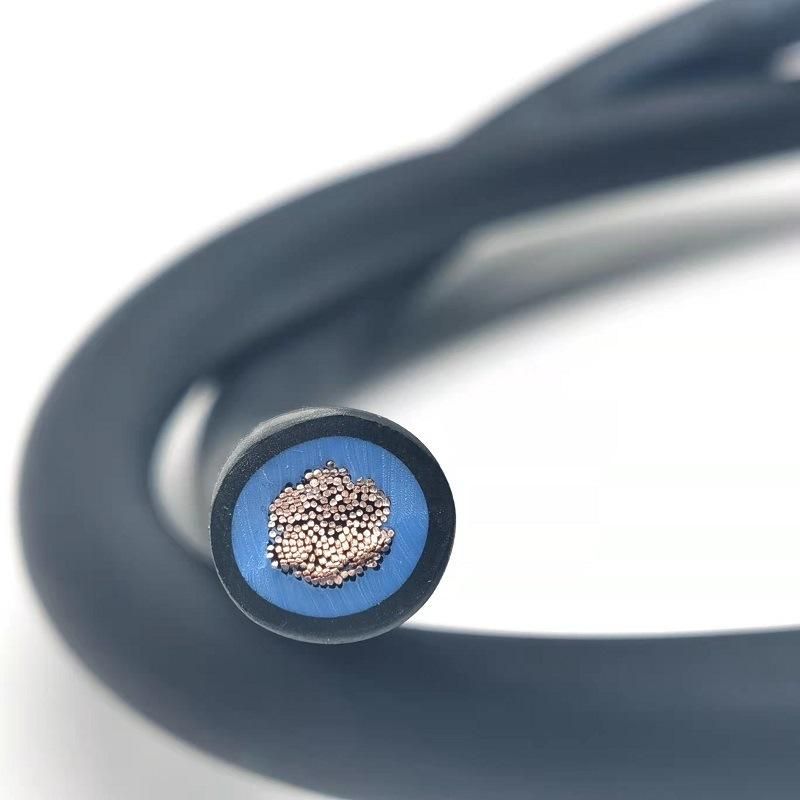

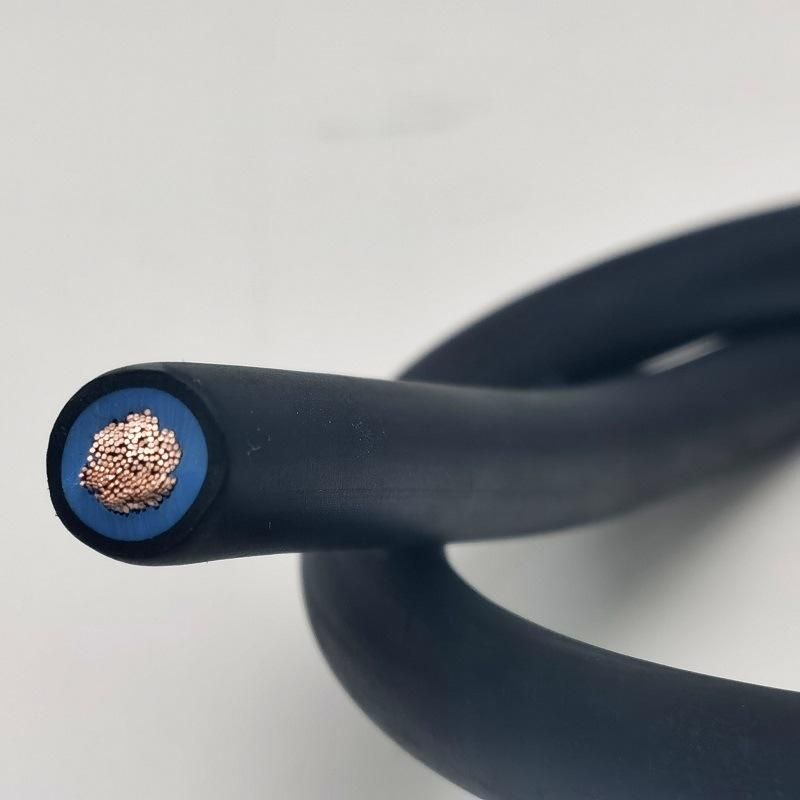

Nsgafou Cable Flexible Single Core Rubber Cable 1.8/3 Kv Oil Resistant

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Fixed Installation
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：NSGAFOU Cable
  • Material Shape：Round Wire
  • Range of Application：Oil Resisitant
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Single core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemNSGAFOU single core rubber cableConductorCopper  (as client's required)InsulationRubber  (as client's required)Outer sheathRubber  (as client's required)Nominal VoltageAC U0/U 1.8/3 kV Test Voltage6 kVTemperature RangeDuring laying: -25 up to +80°C
Fixed installation: -40°C to +90°CColorOptionalCertificationCEApplicationWiring of machines, tools, devices, appliances and control cabinets Railway vehicles, buses; short-circuit-proof up to 1000 V in switching stations and power distributors In ducts, tubes, pipes, conduits and closed installation channels Bundled or for connection of movable parts
