• Model NO.：H05vvh6-F
• Material Shape：Flat Wire
• Range of Application：Elevator Travel Cable
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Fengda
• OEM&ODM：Yes
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：copper
• Trademark：Feiya
• Origin：China
• HS Code：854449210
• Production Capacity：50K Meter Per Year

Basic Info.

Model NO. H05vvh6-F Material Shape Flat Wire Range of Application Elevator Travel Cable Certification ISO9001, CE, CCC, RoHS, VDE Brand Fengda OEM&ODM Yes Transport Package Wooden Box Packing or Pallet Shipping Containers Specification copper Trademark Feiya Origin China HS Code 854449210 Production Capacity 50K Meter Per Year

Product Description

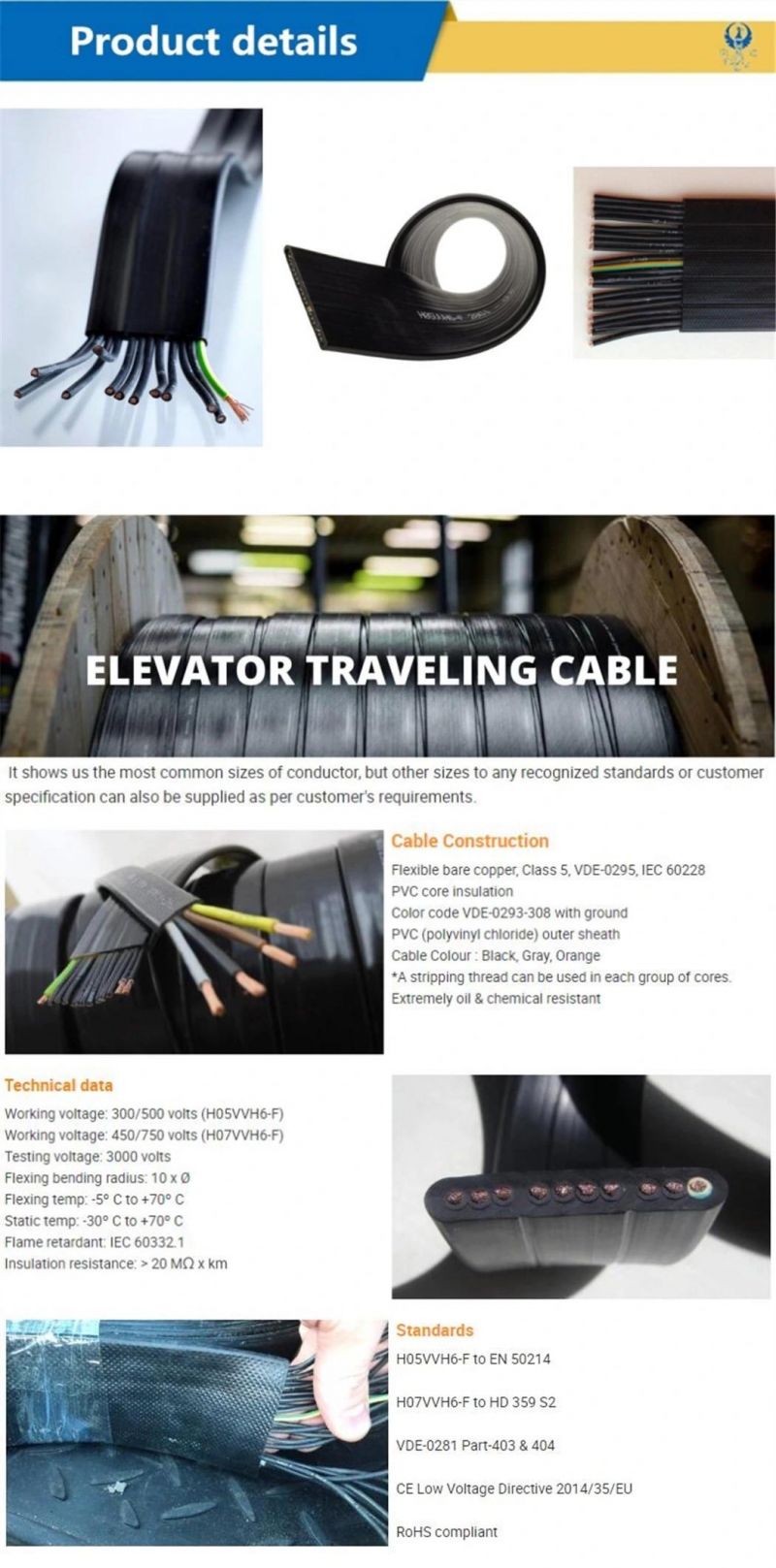

Movable Type Flat Cable

Application
H05VVH6-F is a harmonized, flexible, 300/500 volt, PVC flat festoon power and control cable. Mainly used as a trailing cable for crane installations, floor conveyor systems, elevator control cables, shelf control units and in supply lines for moving machine parts. The flat construction allows these cables to be stacked for applications where space is at a minimum and require smaller bending radius over that of round cables. Suitable for installations in dry and damp rooms. The outer PVC jacket is extensively resistant to oil, fat, acid and lye.

Technical Characteristics

WORKING VOLTAGE	300/500V (H05VVH6-F)
TEST VOLTAGE	2KV (H05VVH6-F)
BENDING RADIUS	10 × cable Ø
FLEXING TEMPERATURE	- 5 ºC to + 70 ºC
STATIC TEMPERATURE	-40 ºC to +70 ºC
FLAME RETARDANT	Test class B according to VDE 0472 part 804, IEC 60332-1
INSULATION RESISTANCE	20 MΩ x km



 DIMENSIONS


NO. OF	NOMINAL CROSS	NOMINAL DIAMETER	NOMINAL THICKNESS	CABLE DIMENSIONS	NOMINAL
CORES	SECTIONAL AREA	OVER CONDUCTOR	OF INSULATION	WIDTH	WEIGHT
	mm2	mm	mm	mm	kg/km



6	0.75	1.3	0.6	72	118
12	0.75	1.3	0.6	128	227
18	0.75	1.3	0.6	184	336
20	0.75	1.3	0.6	208	376
24	0.75	1.3	0.6	248	450

Q1:Are you a trading company or manufacturer?

A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

Q3:Which standards do you comply with when you produce the electrical wires and cables ?

A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).

Q4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.

Q5:How much the Courier freight will be for the samples?

A5:Courier freight depends on the quantity,weight and carton size and your area.
