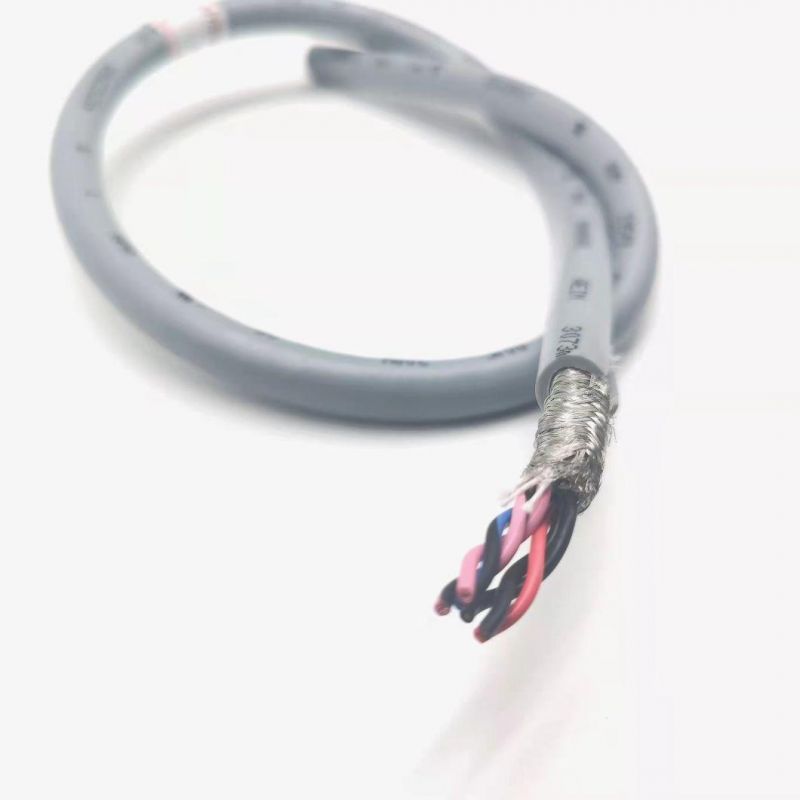

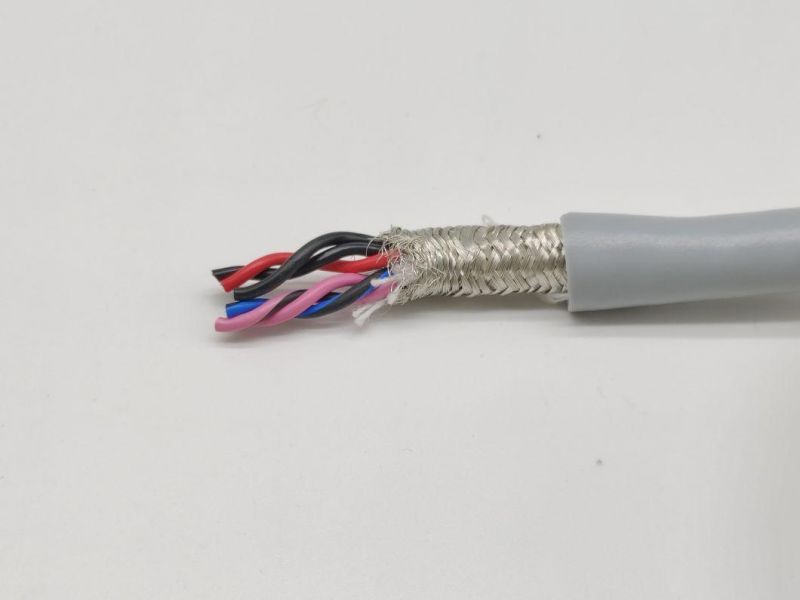

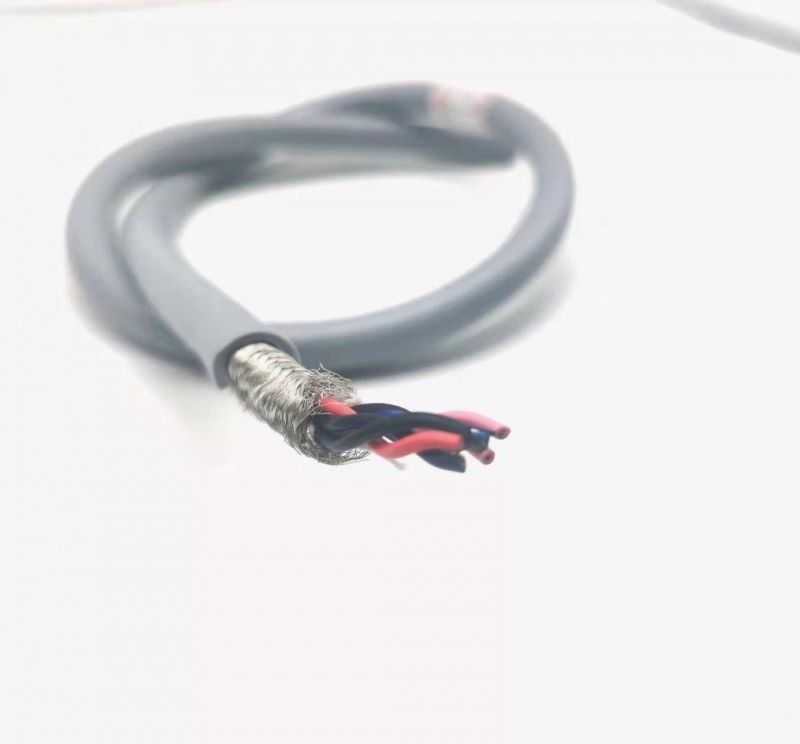

Hot Sale Oil Resistant Paired Data Cable Multicore 4X2X0.32mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：LifYCY Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemLifYCY Data Paired CableConductorBare copperInsulationSpecial PVCShieldTinned copper, shielded braidingOuter sheathSpecial PVC Nominal Voltage350V Test Voltage1200 VTemperature RangeFlexing:-5°C to +70°C (+23°F to +158°F)
Fixed Installation:-40°C to +70°C (-40°F to +158°F)Minimum Bending RadiusFlexing 10x cable Ø
Fixed Installation 5x cable ØColorOptionalApplicationThese shielded cables are used as connecting cable for signal, measuring, control and speaking purposes for example in Intercom systems, weighing instruments, equipment for office works, computers and telecommunication equipment etc. The cable offers a flexible handling and installation. Due to pair-twisting, the electrical unbalances of the cable itself can be reduced and cross-talk effects are avoided.
The tinned copper shielded braiding serves as protection against outer high frequency influences (capacitance unbalance). The drain wire ensure an exact connection to the earth clamp.
The cables are suitable for fixed installation and flexible application, free-moving without tensile stress and without forced guiding operation in dry, damp and wet places for medium mechanical stress.
