Factory Price 12 Core Gyfxby G652D Single Mode Multimode Fiber Optic Drop Cable with FRP Strength Member

Hangzhou Softel Optic Co., Ltd.
  • Application:FTTH,FTTX
  • Type:Multi-mode Fiber
  • Core:1,2,4,6,8,12
  • Certification:CE, ISO9001
  • Brand:Softel
  • Sheath Material:LSZH

Base Info

  • Model NO.:GYFXBY-12B1
  • Fiber Type:G652D , G657A1 , G657A2 for Optional
  • Fiber Count:2-24 Core Optional
  • Strength Member:Frpx2
  • Strength Member Diameter:1.6mm
  • Outer Sheath Material:PE
  • Inner Jacket Material:PBT
  • Min. Bending Radius(mm):20h (Static) 40h (Dynamic)
  • Short Tensile Strength:800n
  • Cable Weight Kg/Km:Approx. 34.9
  • Transport Package:Standard Export Package
  • Trademark:Softel
  • Origin:Hangzhou, Zhejiang, China
  • HS Code:85176229

Description

Item

Technology parameter

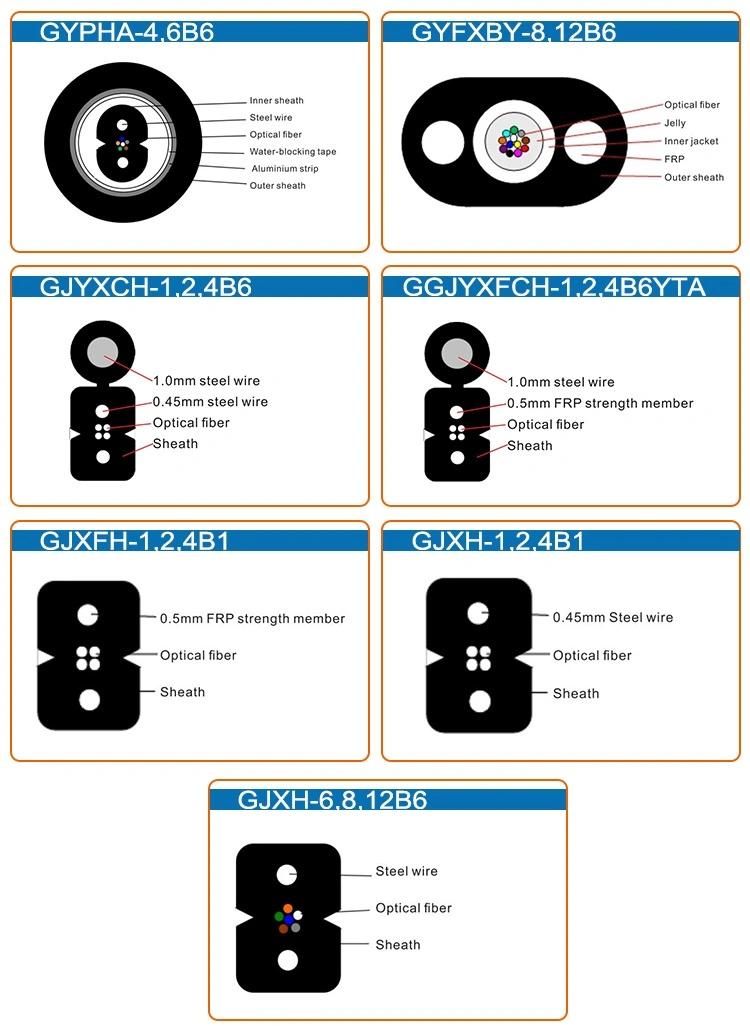

Cable type

GJYXCH-1B6

GJYXCH-2B6

GJYXCH-4B6

Cable specification

5.2×2.0

Fiber type

9/125 (G.657A2)

Fiber counts

1

2

4

Fiber color

Red

Blue, orange

Blue, orange, green, brown

Sheath color

Black

Sheath material

LSZH

Cable dimension   mm

5.2(±0.2)*2.0(±0.2)

Cable weight   Kg/km

Approx. 19.5

Min. bending radius mm

120

Min. bending radius mm

(Excluding messenger wire)

10 (Static)

25 (Dynamic)

Attenuation   dB/km

≤ 0.4 at 1310nm, ≤0.3 at 1550nm

Short term tensile   N

600

Long term tensile   N

300

Short term crush N/100mm

2200

Long term crush N/100mm

1100

Operation temperature   ºC

-20~+60

Factory Price 12 Core Gyfxby G652D Single Mode Multimode Fiber Optic Drop Cable with FRP Strength Member

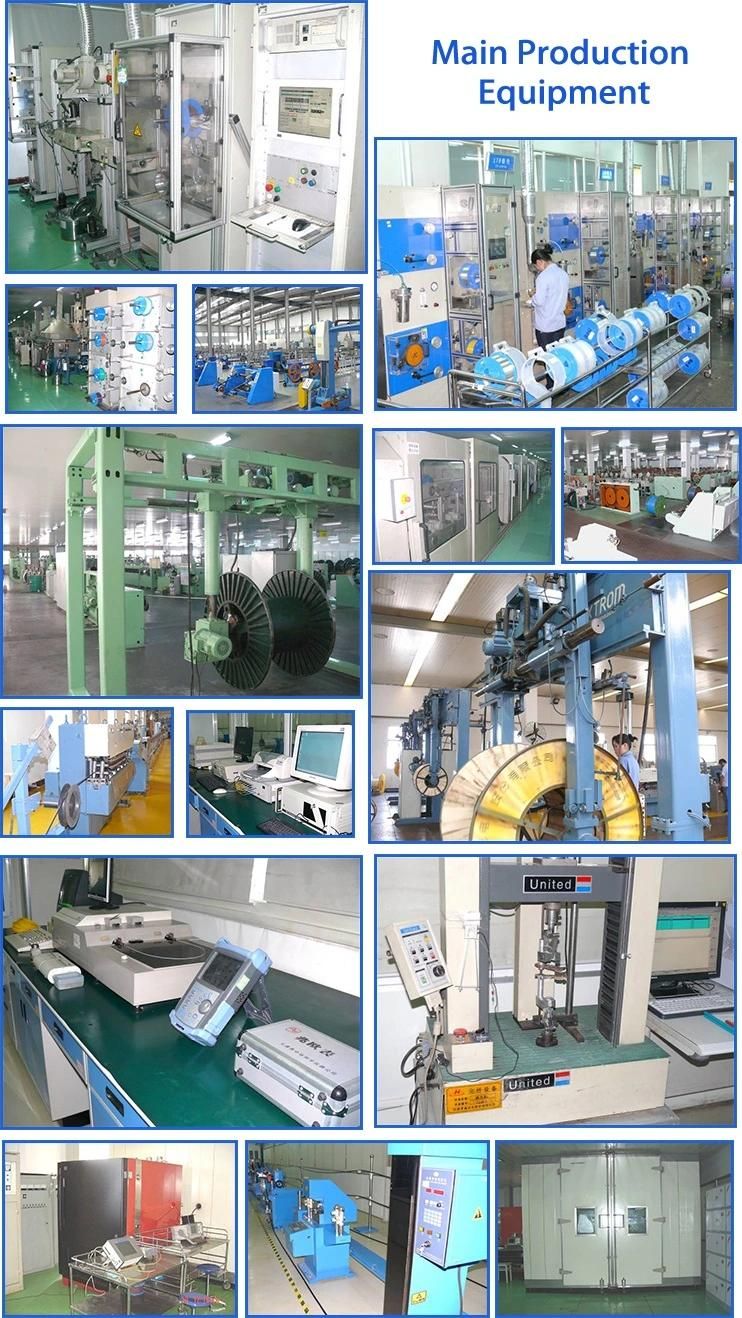

Production progress

Factory Price 12 Core Gyfxby G652D Single Mode Multimode Fiber Optic Drop Cable with FRP Strength Member


Factory Price 12 Core Gyfxby G652D Single Mode Multimode Fiber Optic Drop Cable with FRP Strength Member
Factory Price 12 Core Gyfxby G652D Single Mode Multimode Fiber Optic Drop Cable with FRP Strength Member
