Oil Resistant Ventilated PUR Cable (tube) for Level Transmitter

Nanjing Wotian Technology Co., Ltd.
  • Type：Insulated
  • Application：Submersible Level Transmitter
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：WTC04
  • Ventilated Tube Material：Polypropylene
  • Cable Color：Black
  • Operational Temp.：-40ºC~+70ºC
  • No. of Cores × Cross Section：5×0. 2 mm2
  • No. of Threads/Diameter：7,0.2
  • Outer Diameter/Pore Diameter：2.2,1.0
  • Outer Diameter：7.2-7.4
  • Conductor DC Resistance at 20ºC：≤90 Ω,Km
  • Insulation Resistance MΩ. Km ≥：500
  • DC Test Voltage (Kv)：1000
  • Transport Package：Standard Export Packing
  • Specification：Weight: 0.069kg,m
  • Origin：China
  • HS Code：8544491100

Description

Specifications
 NO. of cores × Standard cross section mm2Structure of core (No. of threads/diameter) Outer diameter/pore diameter of vented tube
 Outer diameterConductor DC resistance at 20ºC
Ω/kmInsulation resistance
MΩ. Km ≥DC test Voltage (kV)5×0. 27/0.22.2/1.07.2-7.4≤905001000

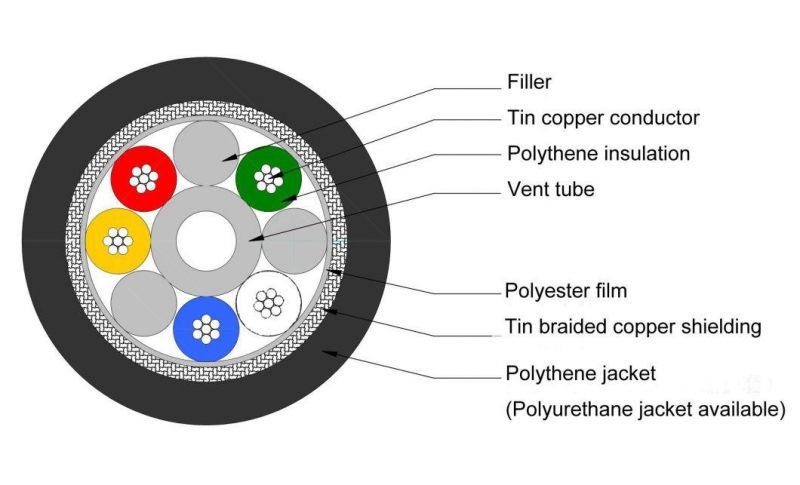

Drawing

Oil Resistant Ventilated PUR Cable (tube) for Level Transmitter

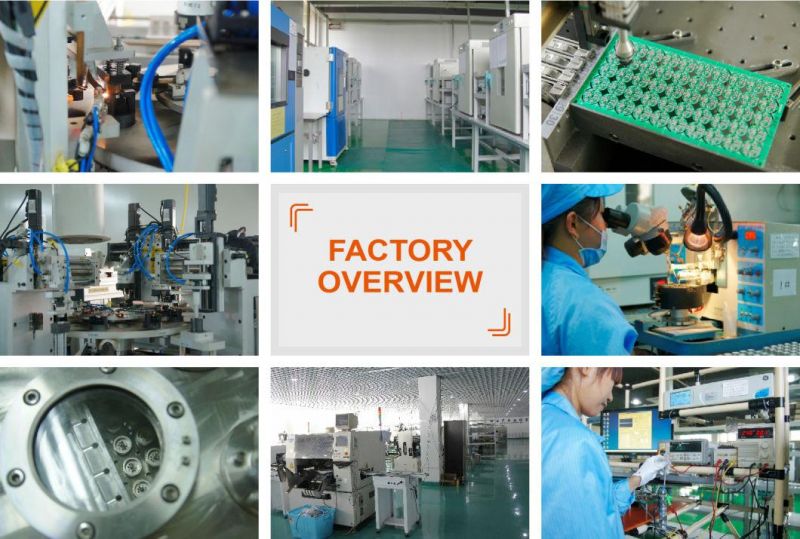

About US:
Oil Resistant Ventilated PUR Cable (tube) for Level Transmitter
Oil Resistant Ventilated PUR Cable (tube) for Level Transmitter

Oil Resistant Ventilated PUR Cable (tube) for Level Transmitter

Certifications:
Oil Resistant Ventilated PUR Cable (tube) for Level Transmitter
