3X2.5mm2 Fire Alarm Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Alarm
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：alarm cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：Rvv
- Brand：Fuu
- Transport Package：100m
- Specification：12awg Conductor
- Origin：China
- HS Code：8544200000
- Production Capacity：3500km,Month
Description

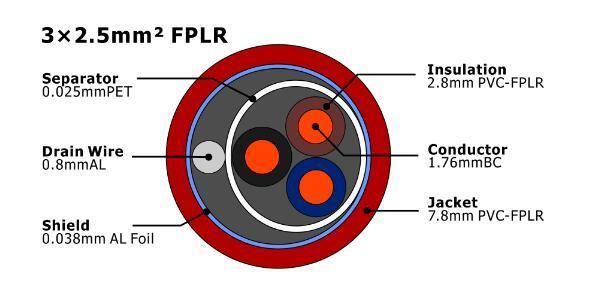

Cable construction :
Conductor:
Solid Bare Copper
3×1.76mm
Insulation:
Type:PVC-FPLR
Dia.over Dielectric: 0.110''nom.(2.8mm)
Insulation Color:
Blu/Brn
Separator :
PET Foil
Drain Wire:
0.8mm Aluminum/TCCA
Shield:
Aluminum PET (100% Coverage 20% overlapping)
Jacket:
PVC-FPLR
Dia.over Jacket: 0.307''(7.8mm)
Alarm Cable/Control Cable
| Cable Size | Specification | Overall Diameter |
| 2x0.22mm² | 2x7/0.20 | 3.0mm |
| 4x0.22mm² | 4x7/0.20 | 3.5mm |
| 6x0.22mm² | 6x7/0.20 | 4.1mm |
| 8x0.22mm² | 8x7/0.20 | 4.5mm |
| 10x0.22mm² | 10x7/0.20 | 5.2mm |
| 12x0.22mm² | 12x7/0.20 | 5.6mm |
| 14x0.22mm² | 14x7/0.20 | 5.8mm |
| 20x0.22mm² | 20x7/0.20 | 6.8mm |
| 2x0.50mm² | 2x16/0.20 | 4.5mm |
| 4x0.50mm² | 4x16/0.20 | 5.2mm |
| 6x0.50mm² | 6x16/0.20 | 6.0mm |
| 8x0.50mm² | 8x16/0.20 | 6.8mm |
| 10x0.50mm² | 10x16/0.20 | 7.6mm |
| 12x0.50mm² | 12x16/0.20 | 8.0mm |
Fire Cable/Fire Alarm Cable
| Cable Size | Specification | Overall Diameter |
| 2x0.5mm² | 2x0.8mm | 4.80mm |
| 2x2x0.5mm² | 4x0.8mm | 6.00mm |
| 2x1.0mm² | 2x1.15mm | 5.30mm |
| 2x2x1.0mm² | 4x1.15mm | 6.60mm |
| 2x1.5mm² | 2x1.40mm | 5.90mm |
| 2x2x1.5mm² | 4x1.40mm | 7.20mm |
| 2x2.5mm² | 2x1.80mm | 6.80mm |
| 2x2x2.5mm² | 4x1.80mm | 8.00mm |
Packing:
1)Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing:Roll, Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
