N2xch, Power Cable, 0.6/1 Kv, Cu/XLPE/Cws/Cts/Fh (VDE 0276-604)
Jiangsu Boan Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：Fh
- Insulation Material：XLPE
Base Info
- Model NO.：N2XCH
- Material Shape：Round Wire
- Range of Application：Distribution
- Certification：ISO9001, CCC
- Brand：Boan
- Rated Voltage：0.6,1 Kv
- Size：1.5-240 Mm2
- Number of Cores：2-30
- Type of Metallic Screen：Cws+Cts
- Transport Package：Heated Steel-Wooden Drum,Steel Drum
- Specification：SGS
- Trademark：DingAn or OEM
- Origin：Jiangsu Yixing, China
- HS Code：8544492100
- Production Capacity：38000 Km,Year
Description
Basic Info.
Model NO. N2XCH Material Shape Round Wire Range of Application Distribution Certification ISO9001, CCC Brand Boan Rated Voltage 0.6/1 Kv Size 1.5-240 Mm2 Number of Cores 2-30 Type of Metallic Screen Cws+Cts Transport Package Heated Steel-Wooden Drum/Steel Drum Specification SGS Trademark DingAn or OEM Origin Jiangsu Yixing, China HS Code 8544492100 Production Capacity 38000 Km/YearProduct Description

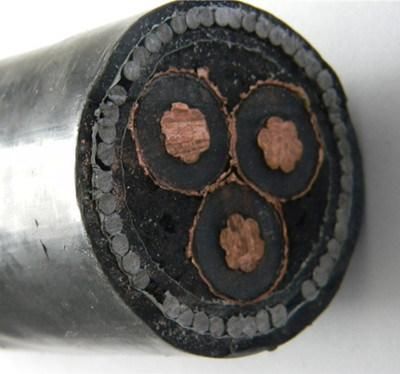

N2XCH 0, 6/1 kV according to DIN VDE 0276-604/DIN VDE 0276-627Construction
1. Conductor: Bare copper, solid or stranded
2. Insulation: Cross-linked polyethylene, core colours acc. To HD308
3. Inner covering
4. Concentric conductor formed by bare copper wires with counter helix of copper tape
5. PP-Tape
6. Outer sheath: Halogen free polymer compound black
Application
Halogen free cables with improved fire properties can be laid in interiors, in air or in concrete. Direct burial in ground or direct laying in water is not permissible. However, a laying in a pipe is allowed if water accumulations are excluded. During installation the cables have to be protected from any external influences or mechanical damages.
Properties
- Halogen free, no emission of corrosive gases (EN 50267-2-2, IEC 60754-2)
- Fire retardant (EN 60332-1-2, EN 60332-3-24)
- Low smoke and fume generation (EN 61034)
- Service temperature: - 30...+ 90 ° C
- Laying temperature: - 5...+ 90 ° C
- Min. Bending radius: 12 x D
| Number of cores and cross section | Outer diameter | Weight of cable | Calorific potential |
| mm2 | approx. mm | approx. kg/km | kWh/m |
| 2 x 1,5 RE/1,5 | 10,0 | 120 | 0,35 |
| 2 x 2,5 RE/2,5 | 11,0 | 150 | 0,41 |
| 3 x 1,5 RE/1,5 | 10,5 | 140 | 0,38 |
| 3 x 2,5 RE/2,5 | 11,5 | 180 | 0,44 |
| 3 x 4 RE/4 | 12,5 | 250 | 0,50 |
| 3 x 6 RE/6 | 14,5 | 340 | 0,58 |
| 3 x 10 RE/10 | 16,0 | 500 | 0,68 |
| 3 x 16 RM/16 | 19,0 | 760 | 0,89 |
| 3 x 25 RM/16 | 22,5 | 1.070 | 1,28 |
| 3 x 35 RM/16 | 25,0 | 1.360 | 1,48 |
| 3 x 50 SM/25 | 32,5 | 2.200 | 2,18 |
| 4 x 1,5 RE/1,5 | 11,0 | 160 | 0,45 |
| 4 x 2,5 RE/2,5 | 12,5 | 220 | 0,52 |
| 4 x 4 RE/4 | 13,5 | 300 | 0,60 |
| 4 x 6 RE/6 | 15,5 | 400 | 0,69 |
| 4 x 10 RE/10 | 17,5 | 610 | 0,85 |
| 4 x 16 RM/16 | 20,5 | 950 | 1,07 |
| 4 x 25 RM/16 | 24,5 | 1.350 | 1,56 |
| 4 x 35 RM/16 | 27,5 | 1.750 | 1,86 |
| 4 x 50 SM/25 | 33,7 | 2.784 | 2,76 |
| 4 x 70 SM/35 | 37,2 | 3.675 | 3,57 |
| 4 x 95 SM/50 | 43,0 | 5.063 | 4,40 |
| 4 x 120 SM/70 | 47,2 | 6.307 | 4,98 |
| 4 x 150 SM/70 | 52,0 | 7.617 | 6,20 |
| 4 x 185 SM/95 | 57,3 | 9.462 | 7,72 |
| 4 x 240 SM/120 | 64,3 | 12.264 | 9,43 |
| 7 x 1,5 RE/2,5 | 13,5 | 250 | 0,67 |
| 10 x 1,5 RE/2,5 | 16,5 | 330 | 0,93 |
| 12 x 1,5 RE/2,5 | 17,0 | 370 | 1,05 |
| 24 x 1,5 RE/6 | 23,0 | 670 | 1,88 |
| 30 x 1,5 RE/6 | 24,0 | 790 | 2,22 |
| 7 x 2,5 RE/2,5 | 15,0 | 320 | 0,77 |
| 10 x 2,5 RE/4 | 18,0 | 440 | 1,07 |
| 12 x 2,5 RE/4 | 18,5 | 500 | 1,21 |
| 24 x 2,5 RE/10 | 25,5 | 940 | 2,17 |
| 30 x 2,5 RE/10 | 26,5 | 1.120 | 2,58 |
| 7 x 4 RE/4 | 16,0 | 440 | 0,88 |
| 12 x 4 RE/6 | 21,0 | 720 | 1,45 |
