• Model NO.：Fiberglass wire
• Material Shape：Round Wire
• Range of Application：High Temperature Environment
• Certification：ISO9001, UL, RoHS
• Brand：Fongming
• Color：as Per Clients′ Request
• Name：Fiberglass Insulation Wire
• Insulation：Fiberglass Braid
• Insulation 1：Fiberglass Lapping
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：0.5mm~6mm
• Trademark：fongming
• Origin：China
• HS Code：8544492100
• Production Capacity：5000km,Month

Basic Info.

Model NO. Fiberglass wire Material Shape Round Wire Range of Application High Temperature Environment Certification ISO9001, UL, RoHS Brand Fongming Color as Per Clients′ Request Name Fiberglass Insulation Wire Insulation Fiberglass Braid Insulation 1 Fiberglass Lapping Transport Package 305m Per Roll, Carton Box Outside Specification 0.5mm~6mm Trademark fongming Origin China HS Code 8544492100 Production Capacity 5000km/Month

Product Description

Product:
Fiberglass Insulated Wire

Description
Name:Fiberglass Insulated Wire
Model:GW04-C
Size:0.5~6mm2
Feature
Ratings Voltage:300V, 300/500V, 600V
Rated temperature: -60ºC~+350ºC  ,+400ºC ,+450ºC

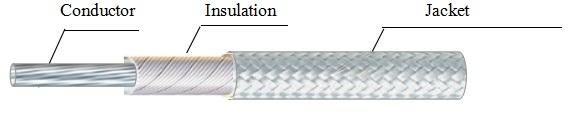

Structure
Conductor:Stranded Nickel
Insulation:Fiberglass Wrapping
Jacket:Fiberglass Braid






Size mm2	Conductor Structure	Insulation Thickness (mm)	Jacket Thickness (mm)	Diameter (mm)
0.5	16/0.2	0.4	0.2	2.1±0.1
0.75	24/0.2	0.4	0.2	2.4±0.1
1.0	32/0.2	0.4	0.2	2.5±0.1
1.5	30/0.25	0.45	0.2	2.9±0.1
2.5	49/0.25	0.45	0.2	3.3±0.2
4	56/0.3	0.45	0.2	3.9±0.2
6	84/0.3	0.45	0.2	4.5±0.2

Packaging&Shipping:

Packing: Rolls , spools or according to customers' requirements.

Shipping: by sea or by air.

Port: Shanghai Port, Ningbo Port or any other ports of China (Mainland)



Company Information:

 Yangzhou Fongming Cable Factory is a professional manufacturer producing universal and special cables & wires. We have gained certificates for China Compulsory Product Certification(CCC), ISD9001 International Quality System Certification, American UL, CSA, SGS and CTI. With an experienced and professional team, our products have been covered to many regions in the world.

    Relying on a wealth of production experience, advanced production equipment, scientific and strict production process and constant pursuit of technological advances to ensure the product quality.

    We will serve for new and existing customers sincerely with good quality, reasonable prices and superior after-service.



Factory Size (Sq.meters):	35000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town, Baoying County ,Yangzhou City,Jiangsu, China
Number of Production Lines:	30
Staff:	148 People
Contract Manufacturing:	OEM Service Offered   Design Service Offered Buyer Label Offered

Certificates



FAQ:

1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?

Yes. customization is welcome .
