High Performance Silicone Rubber Insulation, Silicone Rubber Jacket K Type Thermocouple Cable
Yangzhou Fongming Cable Factory- Type:Insulated
- Conductor Type:Stranded
- Application:Heating, Instrument Thermocouple
- Conductor Material:Silicone Rubber
- Sheath Material:Silicone Rubber
- Insulation Material:Fiberglass
Base Info
- Model NO.:K-RR
- Material Shape:Round Wire
- Range of Application:Temperature Measuring
- Certification:ISO9001, CE, CCC, RoHS, CSA
- Brand:Fongming
- Color:as Per Customers′ Request
- Name:Thermocouple Wire
- MOQ:500meters
- Customize:Available
- Lead Time:5-7 Days
- Insulation:Silicone Rubber
- Model:K-Rr Type
- Size:2*26-2*14AWG
- Conductor:Positive Ni-Cr, Negativeni-Si
- Jacket:Silicone Rubber
- Transport Package:Cartons and Pallet
- Specification:2*26-2*14AWG
- Trademark:Fongming
- Origin:China
- HS Code:8544492100
- Production Capacity:5000km,Month
Description
Basic Info.
Model NO. K-RR Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, CE, CCC, RoHS, CSA Brand Fongming Color as Per Customers′ Request Name Thermocouple Wire MOQ 500meters Customize Available Lead Time 5-7 Days Insulation Silicone Rubber Model K-Rr Type Size 2*26-2*14AWG Conductor Positive Ni-Cr, Negativeni-Si Jacket Silicone Rubber Transport Package Cartons and Pallet Specification 2*26-2*14AWG Trademark Fongming Origin China HS Code 8544492100 Production Capacity 5000km/MonthProduct Description
high performance silicone rubber insulation, silicone rubber jacket K Type thermocouple cableDescription
Name:Thermocouple wire
Model:K-RR Type
Size:2*26-2*14AWG

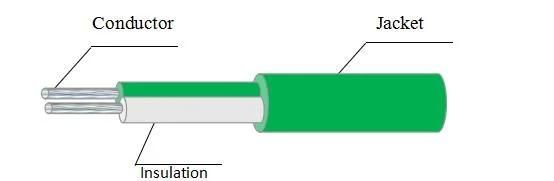

Structure
Conductor: Positive Ni-Cr, NegativeNi-Si
Insulation: Silicone Rubber
Color: P: Green,N:White
Jacket: Silicone Rubber
Color: Green
Model
Specification
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
2*26 | 7/0.16 | 0.48 | 0.3 | 1.1 | 0.5 | 2.1*3.2 |
2*24 | 7/0.2 | 0.6 | 0.3 | 1.2 | 0.5 | 2.2*3.4 |
2*22 | 7/0.254 | 0.76 | 0.3 | 1.4 | 0.5 | 2.4*3.8 |
2*20 | 7/0.32 | 0.96 | 0.3 | 1.6 | 0.5 | 2.6*4.2 |
2*18 | 7/0.39 | 1.17 | 0.4 | 2.0 | 0.6 | 3.2*5.2 |
2*16 | 19/0.3 | 1.5 | 0.4 | 2.3 | 0.6 | 3.5*5.8 |
2*14 | 19/0.37 | 1.85 | 0.4 | 2.7 | 0.6 | 3.9*6.6 |
Certificates:
UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.
Packaging & Shipping
1. Package length | 200meres 305meter 500meter As customers requirement |
2. Package method | Rolls, spool or coil, Pallets if need. |
3: Shipping port | Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port |
Company Information
Factory Size (Sq.meters): | 25,000-30,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 7 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Hot Products
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
