antenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cable

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Fiber Optical Cable
  • Cover Material：HDPE
  • Type：Fiber
  • Material Shape：Round
  • Conductor Type：Solid

Base Info

  • Model NO.：ADSS
  • Wire Core Material：Fiber
  • Certification：CE, ISO, RoHS
  • Model：Fiber
  • Brand：Hanli
  • Transport Package：1000,2000,4000m
  • Specification：2.0
  • Trademark：hanli
  • Origin：Zhejiang
  • HS Code：8544491100
  • Production Capacity：2000000m,Month

Description

Basic Info.

Model NO. ADSS Wire Core Material Fiber Certification CE, ISO, RoHS Model Fiber Brand Hanli Transport Package 1000/2000/4000m Specification 2.0 Trademark hanli Origin Zhejiang HS Code 8544491100 Production Capacity 2000000m/Month

Product Description

ADSS SM Fibre Monomode 24 48 72 96 Outdoor Cable a fibre optique

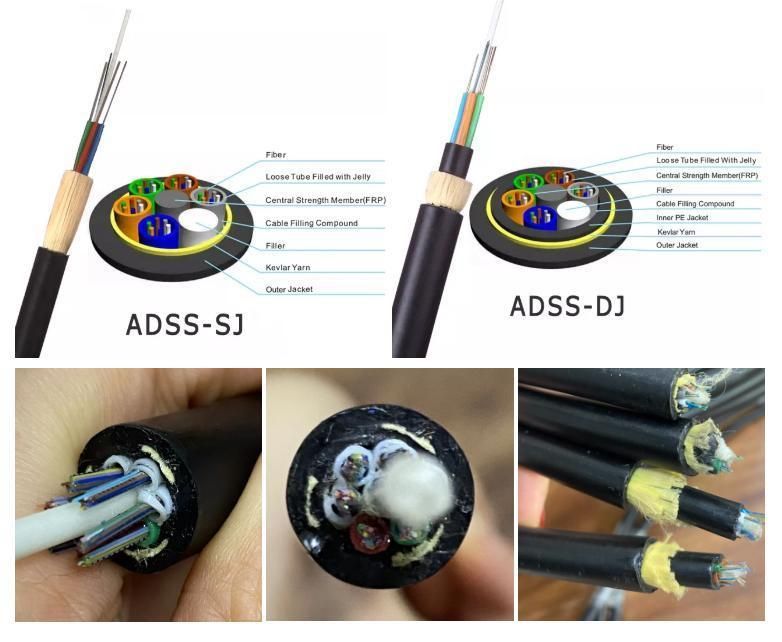

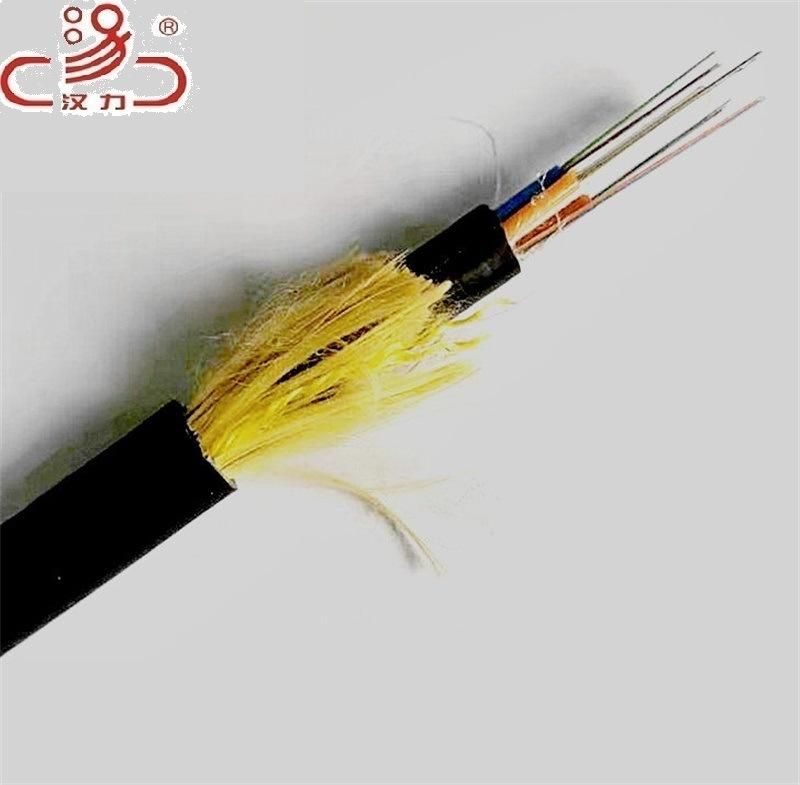

ADSS cable is loose tube stranded. Fibers,  250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP

(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.

After stranded layer of aramid yarns are applied over the inner sheath as strength member,

the cable is completed with PE or AT (anti-tracking) outer sheath.
antenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cable1. Can be installed without shutting off the power;

   2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach  25kV;

   3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;

   4. Large span lengths and the largest span is over 1000m;

   5. Good performance of tensile strength and temperature;

   6.The design life span is 30 years.
antenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cableantenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cableantenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cableantenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cableantenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cableantenna Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cable
