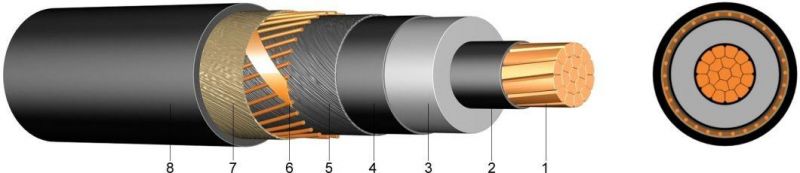

BS 6622 Single Core Unarmoured (Copper Wire Screen) 22kv XLPE Stranded Copper Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：22kv cable BM50
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：YJV
- Brand：Yifang
- Option Conductor：Aluminum
- Transport Package：Wooden or Wooden-Steel Drum
- Specification：multicores
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544601200
- Production Capacity：300km,Month
Description
cross-sectional area mmsq
Minimum average thickness of insulation mm
Nominal diameter over insulation Please refer to our technical department for further information
1000
Installation
cross-sectional area mmsq
Approximate cable weight kg/m
Nominal drum length Please refer to our technical department for further information
1000
Electrical Performance
cross-sectional area mmsq
Maximum DC resistance of conductor at 20 ºC uohms/m
Maximum AC resistance of conductor at 90 ºC uohms/m
Reactance at 50Hz Please refer to our technical department for further information
1000
Ratings
Cross-sectional area Current Ratings
Short circuit ratings
Laid direct in ground
Amps
Drawn into ducts
Amps
Laid in air
Amps
One second short circuit rating of conductor
KA
One second short circuit rating of copper per core
KA
50
220
225
260
6.8
2.6
70
270
270
320
9.8
2.6
95
320
320
390
13.3
2.6
120
360
360
445
17.2
2.6
150
410
405
510
21.2
2.6
185
460
445
580
26.6
2.6
240
530
520
680
34.9
4.3
300
600
570
770
43.8
4.3
400
690
630
890
57.3
5.8
500
760
700
1020
72.3
5.8
630
850
780
1160
91.2
5.8
800
Please refer to our technical department for further information
1000
