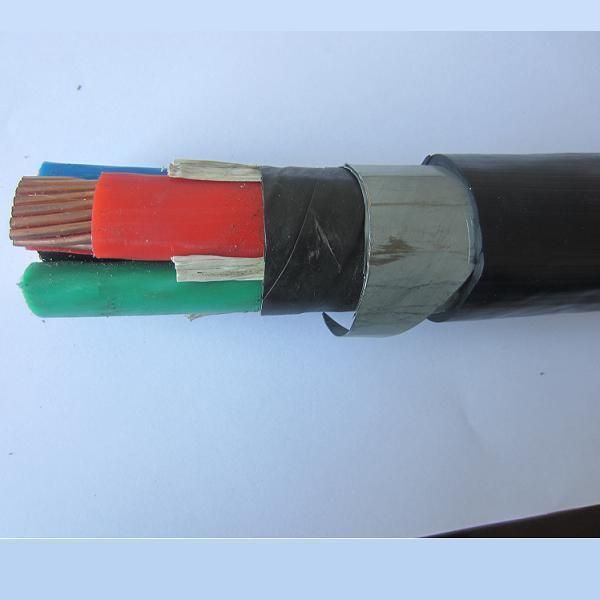

Armoured Copper 4X25mm2 Power Cable with 0.6/1kV
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE , PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cable
- Wire Core Material：Aluminum or Copper
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：YJV
- Brand：Yifang
- Cores：Multi Cores
- Standards：IEC 60502-1, BS 6622
- Conductor：Copper or Aluminum
- Insulation：XLPE or PVC
- Armour Material：Galvanized Steel Tape or Steel Wire
- Sheath Color：Black

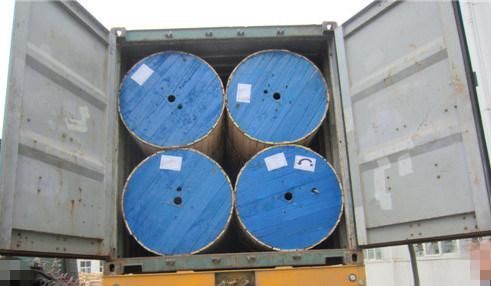

- Transport Package：Drum, Steel Drum
- Specification：4x25mm2
- Trademark：Yifang cable
- Origin：Zhengzhou Henan
- HS Code：8544492100
- Production Capacity：5000km,Year
Description
Basic Info.
Model NO. Power Cable Wire Core Material Aluminum or Copper Certification ISO, CCC, CE, RoHS, UL, VDE Model YJV Brand Yifang Cores Multi Cores Standards IEC 60502-1, BS 6622 Conductor Copper or Aluminum Insulation XLPE or PVC Armour Material Galvanized Steel Tape or Steel Wire Sheath Color Black Transport Package Drum, Steel Drum Specification 4x25mm2 Trademark Yifang cable Origin Zhengzhou Henan HS Code 8544492100 Production Capacity 5000km/YearProduct Description
Armoured Copper 4x25mm2 Power Cable with 0.6/1kVApplication and Description:
0.6/1KV, copper conductor, XLPE/PVC insulated power cable is for Iindustrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.
Standards: IEC 60502 / BS 5467 / DIN / ICEA
Design
Conductor: Stranded circular copper - class 2 according to IEC 60228 / BS EN 60228: 2005
Cores: 1C, 2C, 3C, 4C, 5C, 3C+1E, 4C+1E, 3C+2E
Insulation: XLPE / PVC
Filler: Laying up with fillers
Inner sheath: PVC / LSZH
Armour: Steel or steel tapes ( aluminium wires or aluminum tape can be customized)
Outer sheath: PVC / LSZH
Rated Voltage Uo/U (Um): 0.6/1 KV
Range of Nominal cross section: 1.5 mm2 ~ 630 mm2
8AWG~4/0AWG, 300MCM, 500MCM, 750MCM, 1000MCM
Mechanical characteristics:
Mechanical resistance to impacts: Excellent
Cable flexibility: Rigid
Usage characteristics:
Max. Conductor temperature in service: 70° C(PVC insulation), 90° C(XLPE insulation)
Short-circuit max. Conductor temperature: 250° C
Operating temperature, range: -25...60° C
Weather resistance: Very good
Flame retardant: C2, NF C 32-070
Chemical resistance: Accidental
Water proof: Intermittent
Packaging: Cut to length
Dear friends, we can design and produce power cable with International and national standards according to your request.
| Type | Description | Number of cores | Nominal cross section of conductor |

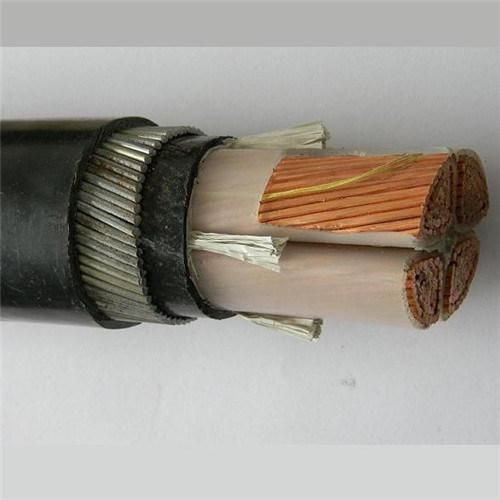

| YJV32 | CU/XLPE/SWA/PVC Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
| YJLV32 | AL/XLPE/SWA/PVC Power Cable | ||
| YJV72 | CU/XLPE/Non-magnetic SWA or AWA/PVC Power Cable | 1 | 1.5~1000mm2 |
| YJLV72 | AL/XLPE/Non-magnetic SWA or AWA/PVC Power Cable | ||
| YJV33 | CU/XLPE/SWA/PE Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
| YJLV33 | AL/XLPE/SWA/PE Power Cable | ||
| Z-YJV32 | CU/XLPE/SWA Flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
| Z-YJLV32 | AL/XLPE/SWA Flame-retardant Power Cable | ||
| WDZ-YJY33 | CU/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
| WDZ-YJLY33 | AL/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable | ||
| N-YJV32 | CU/XLPE/SWA Fire-resistant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
