0.6/1kV XLPE Insulated Aerial Bundle 3X50+54.6+16 ABC Cable NFC 33-209 Standard

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Overhead, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：ABC Cable
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, CE
  • Model：ABC Cable
  • Brand：Yifang
  • Conductor：Aluminum or Aluminum Alloy
  • Insulation：XLPE
  • Neutral Messenger：AAAC
  • Number of Core：Multi Core
  • Color：Black
  • Standard：NFC 33209

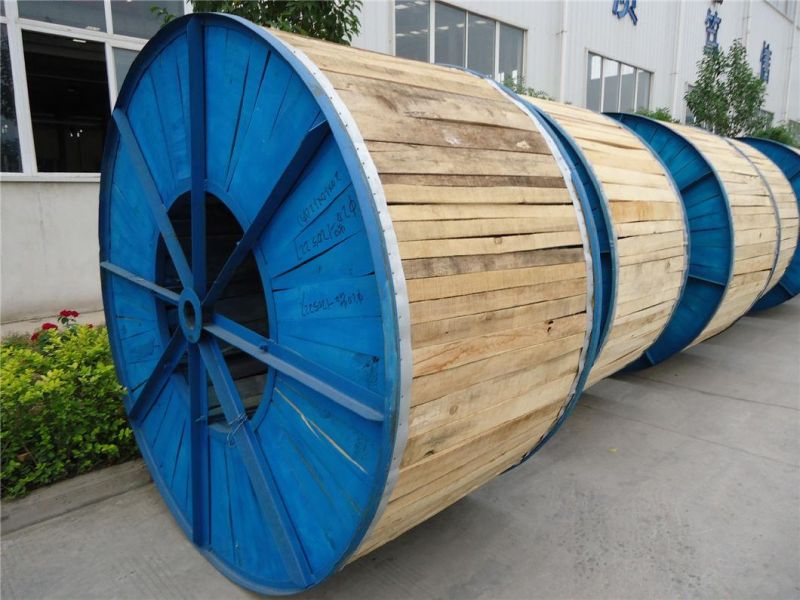

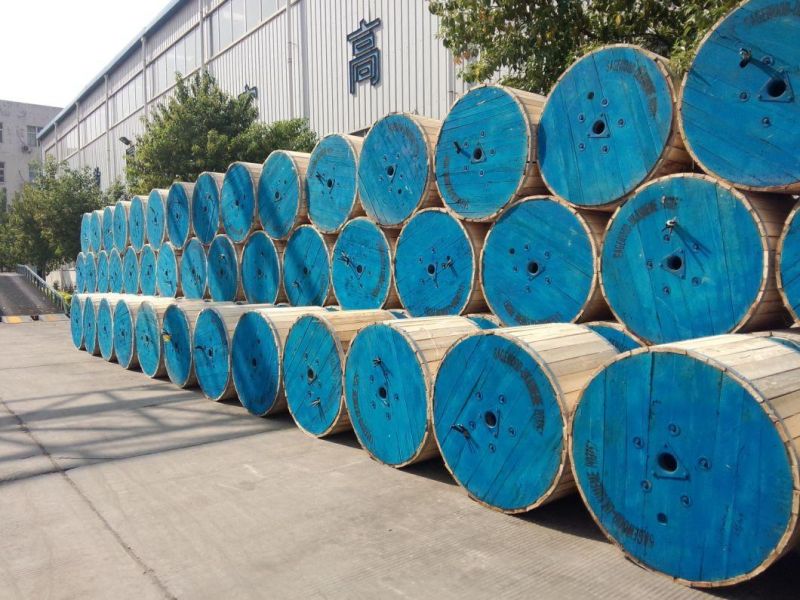

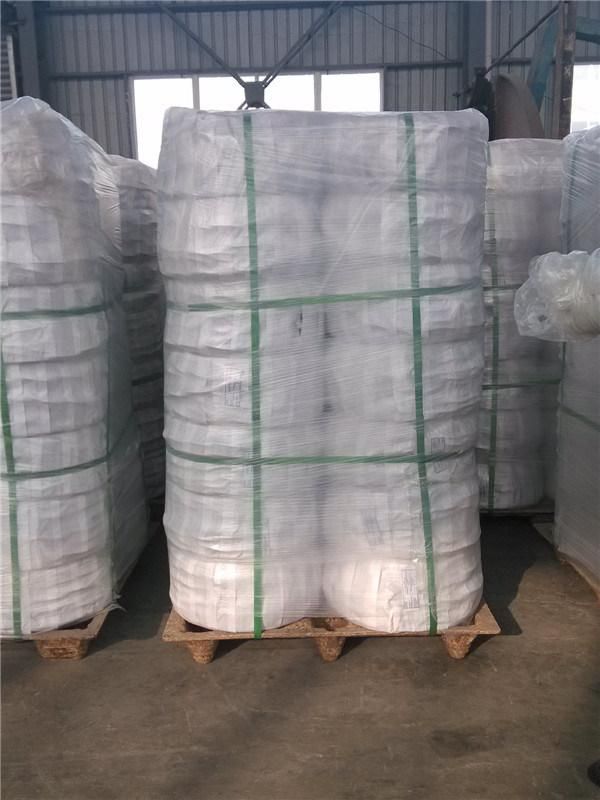

  • Transport Package：Coil, Reel, Drum
  • Specification：3x50+54.6+2x16, 3x70+54.6
  • Trademark：Yifang cable
  • Origin：Henan Zhengzhou
  • HS Code：8544492100
  • Production Capacity：3000 Km,Year

Description

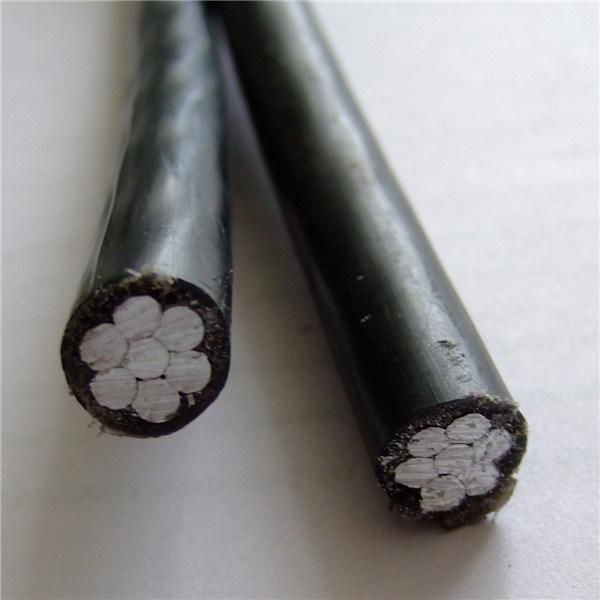

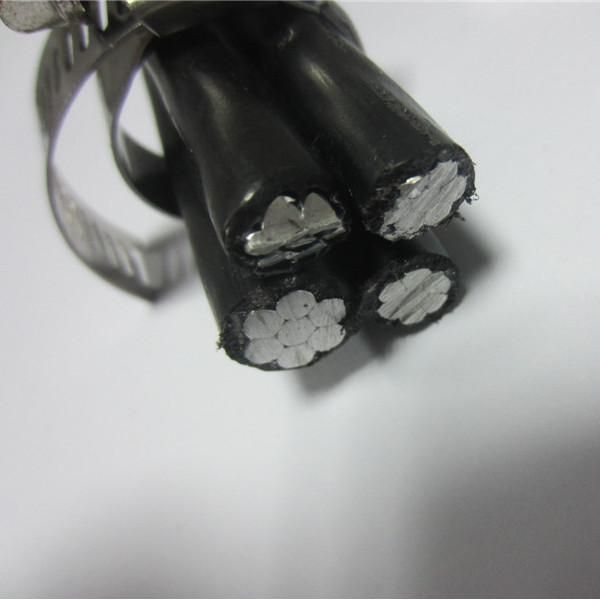

Phase ConductorAluminium conductor, round stranded compressed (RM).Neutral ConductorAlloy aluminium conductor (AlMgSi), round stranded compressed (RM).InsulationXLPE. Load-bearing / neutral core - marked with standard and producers phase core - marked with digits 1, 2, 3.AssemblyCores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Twister cable Technical Data

Rated voltagekV0.6/1Test voltageVeff kV/Hz4/50Laying temperature°Cmin. -5Operating temperature°C-30 ~ +90Conductor temperature°Cmax. +90Short-circuit temperature°C/smax. +250 /5Bending radius (min.)mm20 × O of cable

Twister cable Dimensions

Number of cores x nominal cross sectionmax. conductor- resistancemin. breaking load of conductor strandCurrent rating in the airOuter diameterTotal weightmm^2Ohm/kmkNAmmkg/km2x10 RM3.0801.53812.8934x10 RM3.0801.53815.41832x16 RM1.9102.37214.81292x16 RN + 2x1.5 RE1.910/12.1002.37214.81764x16 RM1.9102.37217.82574x16 RN + 2x1.5 RE1.910/12.1002.37217.83042x25 RM1.2003.810718.02022x25 RM + 2x1,5 RE1.200/12.1003.810718.02494x25 RM1.2003.810721.74044x25 RM + 2x1,5 RE1.200/12.1003.810721.74512x35 RM0.8685.213220.82692x35 RM + 2x1,5 RE0.868/12.1005.213220.83164x35 RM0.8685.213225.15394x35 RM + 2x1,5 RE0.868/12.1005.213225.15862x50 RM0.6417.616523.43522x50 RM + 2x1,5 RE0.641/12.1007.616523.43991x54.6 RM + 3x25 RM0.630/1.2003.810721.75071x54.6 RM + 3x25 RM + 1x16 RM0.630/1.200/1.9103.8/2.3107/7224.35731x54.6 RM + 3x25 RM + 2x16 RM0.630/1.200/1.9103.8/2.3107/7229.76391x54.6 RM + 3x25 RM + 3x16 RM0.630/1.200/1.9103.8/2.3107/7231.17051x54.6 RM + 3x35 RM0.630/0.8685.213225.16151x54.6 RM + 3x35 RM + 1x16 RM0.630/0.868/1.9105.2/2.3132/7228.16801x54.6 RM + 3x35 RM + 2x16 RM0.630/0.868/1.9105.2/2.3132/7234.37481x54.6 RM + 3x35 RM + 3x16 RM0.630/0.868/1.9105.2/2.3132/7235.98141x54.6 RM + 3x35 RM + 1x25 RM0.630/0.868/1.2005.2/3.8132/10728.17141x54.6 RM + 3x50 RM0.630/0.6417.616528.27411x54.6 RM + 3x50 RM + 1x16 RM0.630/0.641/1.9107.6/2.3165/7231.68061x54.6 RM + 3x50 RM + 2x16 RM0.630/0.641/1.9107.6/2.3165/7238.68751x54.6 RM + 3x50 RM + 3x16 RM0.630/0.641/1.9107.6/2.3165/7240.49401x54.6 RM + 3x50 RM + 1x25 RM0.630/0.641/1.2007.6/3.8165/10731.68411x54.6 RM + 3x70 RM0.630/0.44310.220533.09501x54.6 RM + 3x70 RM + 1x16 RM0.630/0.443/1.91010.2/2.3205/7237.010141x54.6 RM + 3x70 RM + 2x16 RM0.630/0.443/1.91010.2/2.3205/7245.210831x54.6 RM + 3x70 RM + 3x16 RM0.630/0.443/1.91010.2/2.3205/7247.311481x54.6 RM + 3x70 RM + 1x25 RM0.630/0.443/1.20010.2/3.8205/10737.010481x54.6 RM + 3x70 RM + 2x25 RM0.630/0.443/1.20010.2/3.8205/10745.211501x54.6 RM + 3x70 RM + 3x25 RM0.630/0.443/1.20010.2/3.8205/10747.312501x54.6 RM + 3x95 RM0.630/0.32013.524037.411761x54.6 RM + 3x95 RM + 1x16 RM0.630/0.320/1.91013.5/2.3240/7241.912430.6/1kV XLPE Insulated Aerial Bundle 3X50+54.6+16 ABC Cable NFC 33-209 Standard
