• Model NO.：Fiber Optical Cable Made in China
• Core：Double Core
• Certification：RoHS, CE, ISO9001
• Brand：OEM
• Sheath Material：PC
• Transport Package：1000
• Specification：30X30X30CM
• Trademark：hanli
• Origin：Zhejiang
• Production Capacity：3000000m,Month



    Physical Properties

Fiber CountNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)2-24389.0261.0712.6*25.10.50*0.992670/600890/20036-72429.0287.9214.7*27.10.58*1.072670/600890/20096-144571.0383.2220.2*32.60.80*1.292670/600890/2002-24303.0203.369.1*21.50.36*0.852670/600890/20036-72332.0222.8211.1*23.50.44*0.932670/600890/20096-144417.0279.8715.9*28.30.63*1.122670/600890/200

 Construction



   Physical Properties

Fiber CountNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)2-24389.0261.0712.6*25.10.50*0.992670/600890/20036-72429.0287.9214.7*27.10.58*1.072670/600890/20096-144571.0383.2220.2*32.60.80*1.292670/600890/200

   Mechanical Properties

Minimum Bending Radius: Maximum Compressive Load:4000N for unarmored cables;Under installation:20×OD 6000N for armoured cablesDuring operation0×OD for unarmoured cablesRepeated Impact:4.4 N.m (J) 20×OD for armoured cablesTwist (Torsion):180×10 times, 125×ODTemperature Range: Cyclic Flexing:25 cycles for armoured cables.Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF) 100 cycles for unarmoured cables.Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)Crush Resistance:220N/cm (125lb/in)

   Fiber Compliance

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

   Safety Compliance

General Purpose GradeFlammability Test: OFN (UL1581)Riser GradeFlammability Test: OFNR/FT4 (UL1666)Plenum GradeFlammability Test: OFNP/FT6 (UL 910)FRPVC GradeFlammability Test: IEC60332-1LSZH GradeHalogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2LSFROH Grade Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/AFR GradeFire Resistance Test : IEC 60331 / BS 6387 CWZ













Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.


Q1. What kind of products can your company supply?
 A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF term.

Q6. What's your conventional packing ?

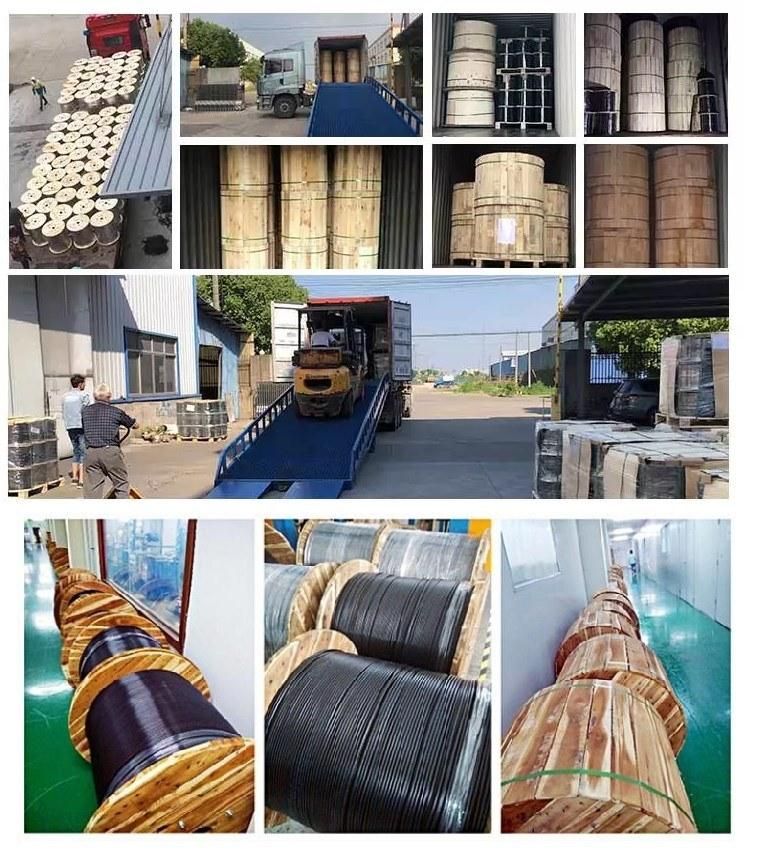

A: 1000m,2000m,3000m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
