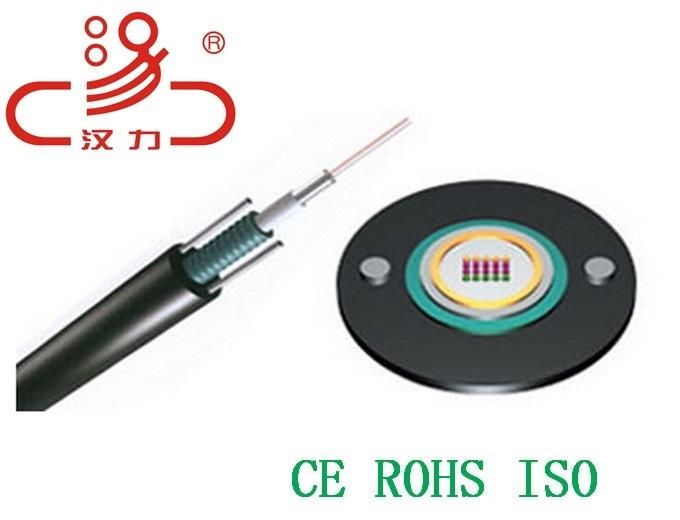

2 / 4 / 6 / 8 / 12 Core Single Mode Outdoor GYXTW Fiber Optical Cable 1km Price
Zhejiang Kuayue Cable Co., Ltd.- Application：Communication, Sensor, Medicine
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Flat Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
Base Info
- Model NO.：Fiber Optical Cable Made in China
- Core：Double Core
- Certification：RoHS, CE, ISO9001
- Brand：OEM
- Sheath Material：PC
- Transport Package：1000
- Specification：80X80X50CM
- Trademark：hanli
- Origin：Zhejiang
- Production Capacity：3000000m,Month
Description
No.
Items
Unit
Specification
G.652D
1
Mode Field Diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.5
2
Cladding Diameter
μm
124.8±0.7
3
Cladding Non-Circularity
%
≤0.7
4
Core-Cladding Concentricity Error
μm
≤0.5
5
Coating Diameter
μm
245±5
6
Coating Non-Circularity
%
≤6.0
7
Cladding-Coating Concentricity Error
μm
≤12.0
8
Cable Cutoff Wavelength
nm
λcc≤1260
9
Attenuation (max.)
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.24
Technical Parameter
Fiber Count
Cable Diameter (mm)
Cable Weight (kg/km)
Tensile Strength
Long/Short
Term (N)
Crush Resistance
Long/Short
Term (N/100mm)
Bending
Radius Static/Dynamic
(mm)
2~12
8
62
1000/3000
1000/3000
10D/20D
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF term.
Q6. What's your conventional packing ?

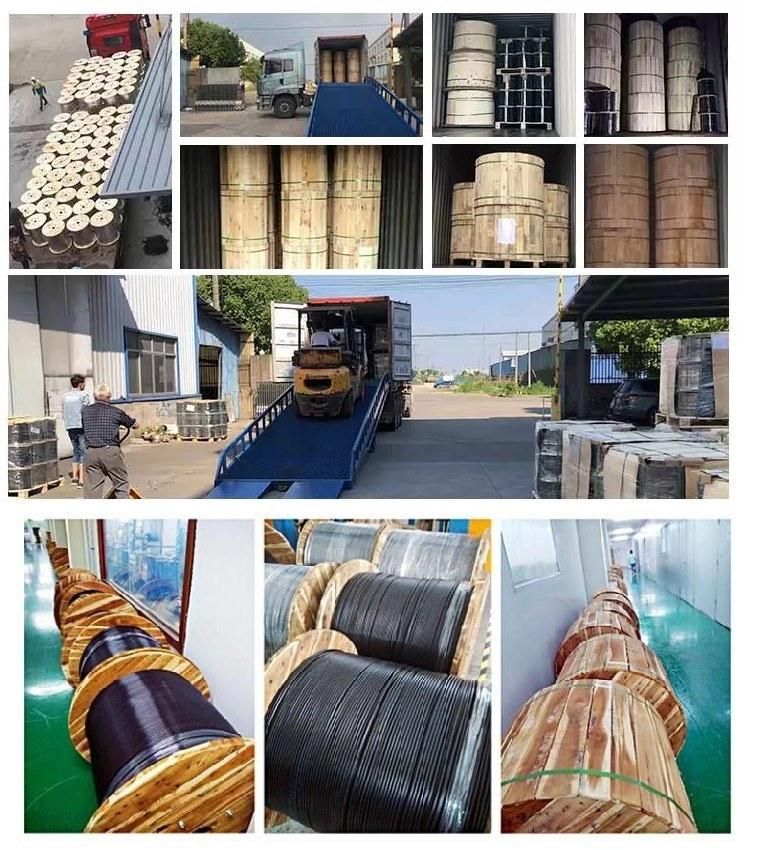

A: 1000m/plastic or wooden drum, 2000m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
