• Model NO.：optical drop cable
• Core：Single Core
• Certification：RoHS
• Brand：OEM
• Sheath Material：PVC
• Item：FTTH Drop Cable
• Application in：Indoor Use
• Cores：2,4,6,8 as Per Your Design
• Cable Type：Gjyxfch-8b6.A2
• Fiber Color：Blue, Orange, Green, Brown, Gray etc
• Fiber Type：9,125 (G657A2)
• Operation Temperature：-20~+60 Degree
• Lead Time：Within 30 Days
• Warranty：12 Months
• Transport Package：Standard Carton
• Specification：ROHS
• Trademark：SOFTEL OEM
• Origin：Zhejiang, China
• Production Capacity：10000 Km,Month

Basic Info.

Model NO. optical drop cable Core Single Core Certification RoHS Brand OEM Sheath Material PVC Item FTTH Drop Cable Application in Indoor Use Cores 2,4,6,8 as Per Your Design Cable Type Gjyxfch-8b6.A2 Fiber Color Blue, Orange, Green, Brown, Gray etc Fiber Type 9/125 (G657A2) Operation Temperature -20~+60 Degree Lead Time Within 30 Days Warranty 12 Months Transport Package Standard Carton Specification ROHS Trademark SOFTEL OEM Origin Zhejiang, China Production Capacity 10000 Km/Month

Product Description

FRP G657A 8 core optical drop cable
Summary
The optical fiber unit is positioned in the centre, two parallel fiber Reinforced plastics (FRP) are placed at
The two sides, A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.






1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP strength members ensures good performance of tensile strength.
3. Simple structure, light weight and high practicability.

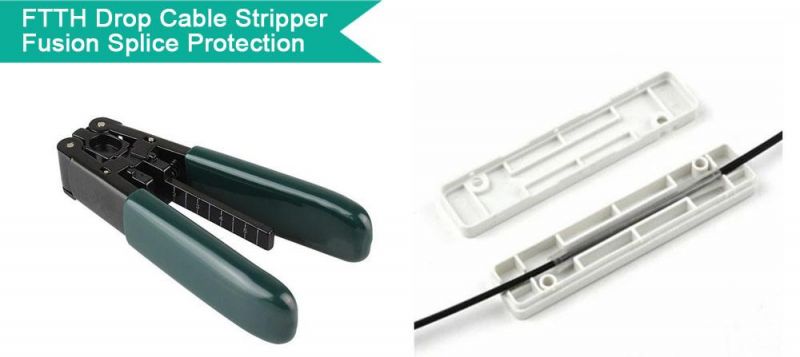

4. Novel flute design, easily strip and splice, simplify the installation and maintenance.
5. Low smoke, zero halogen and flame retardant sheath.

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP strength members ensures good performance of tensile strength.
3. Simple structure, light weight and high practicability.
4. Novel flute design, easily strip and splice, simplify the installation and maintenance.
5. Low smoke, zero halogen and flame retardant sheath.


Item	Technology parameter
Cable type	GJYXCH-4B6
Cable specification	5.2×2.0
Fiber color	Nature, blue, orange, green
Fiber type	9/125 (G657A2)
Sheath color	Black
Sheath material	LSZH
Cable dimension   mm	5.2(±0.2)*2.0(±0.2)
Cable weight   Kg/km	Approx. 19.5
Min. bending radius mm	120
Min. bending radius(rip off the messenger wire)   mm	10 (Static) 25 (Dynamic)
Attenuation   dB/km	<= 0.4 at 1310nm, <= 0.3 at 1550nm
Short term tensile  N	600
Crush resistance  N/100mm	2200
Operation temperature   ºC	-20~+60
