OEM UTP FTP SFTP Cat5e LAN Cable Wire Bulk Communication Cable
Jiaxing Zhouyi Wire & Cable Co., Ltd.- Application：LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Material Shape：Round Wire
- Conductor Type：Solid
- Wire Core Material：Bare Copper Wire
Base Info
- Model NO.：0.48 0.50 0.51 MM
- Voltage：75V
- Rated Temperature：60,75
- Color of Insulation：Blue,White,Orange,White,Green,White,Brown,White
- Length：305m,610m,or as Require
- Color of Jacked：Black,Grey,Brown,as Requires
- Transport Package：Carton, Plastic Plate, Wooden Drum, or as Requires
- Trademark：ZHOUYI OR OEM
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：5, 000.00km,Month
Description

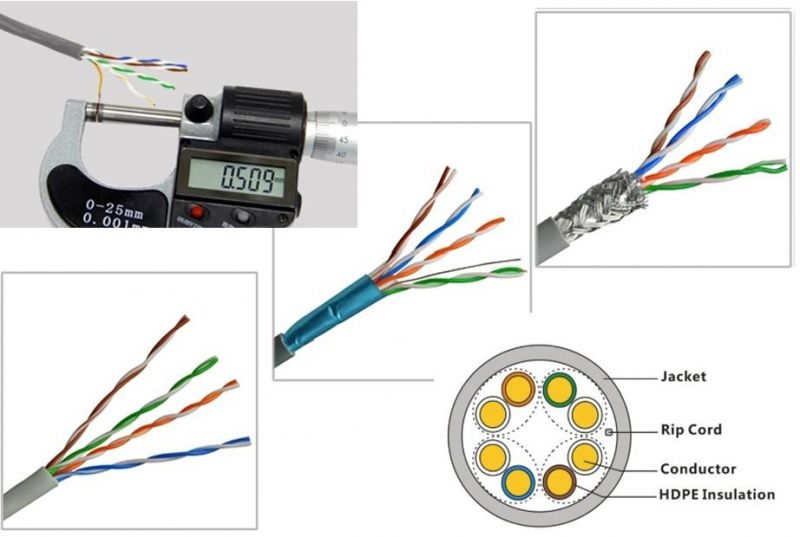

Cable data:
Conductor:CCA/TCCA/COPPERAWG:24
Conductor Dia(mm):0.485/0.50/0.51
Insulation:PE
Average Thickness(9±0.03mm):0.20
Min Point Thickness:0.17
Insulation Dia(±0.03mm):0.91
Twistiing lay length(mm):30 undemeath
Cabling lay length(mm):200 undemeath
Jacket:PVC
Average Thickness:0.5
Min Point Thickness:0.43
Qutor Dia(i1.0mm):5.3
Rip Cord:YES
Weight Nom(kg/km):32
Core Color:Blue-white/blue,Orange-white/orange
Green-white/green,Brown-white/brown
Electrical Performance:
1.0-100.0MHZ Impendance(ohms)100±15
1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
Pair to ground Capacitance Unbalance(PF/100M)330 Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%) 5
Test object : jacket
Test material: PVC
Before Tensile Strength(Mpa)≥13.8
Aging Elongation(%)≥100
Aging condition(C xhrs) 100*240
After tensile strength(Mpa)≥85% of unaged
Aging Elongation(%)≥50% of naged
Cold bend(-20±2ºC*4hrs) No crock
AFQ
Q1. What kind of products can your company supply?
A: We specialize in supplying electrical wire and cable,speaker cable,battery cable,welding cable,power cable,telephone wire,fire alarm cable and so on.
Q2. What's your MOQ?
A: The MOQ is 5kilometers each size OR we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20days after comfriming the deposite ,it is based on the quantity of the order.
Q4. What's your payment terms?
A: Normally,we accept T/T in advance, as for other payment term,we can negociate with u.
Q5. What's your trade term ?
A: Our trade term is FOB Shanghai or Ningbo Port.
Q6. What's your conventional packing ?
A: 100m/100y air roll /plastic or wooden drum,color box,carton or woven bag.
However, we can according to your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes,we can.
Q8. Do you provide samples? Is it free or extra?
A:Yes,we could offer the sample that available keep in our warehouse for free charge.Please advise your freight collect account and sample will be send 2-3days.
Q9.How we know our products going on without visiting your company?
A:We will offer a detailed production schedule and send weekly reports with pictures which showed the machining progress.
Q10.What is your term of payment?
A:T/T,30% in advance,balance be paid at sight of scan copy bill of loading within 7days.

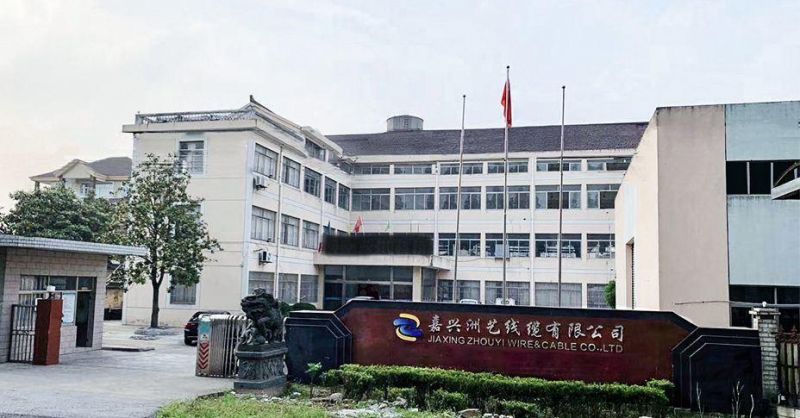

Company Profile
Our factory found in 2011, has many years experience in cable manufacturing.We mainly produce all kinds of electrical wire and cable,for household fixing wiring and electrical equipment connecting systems. Such as BV(single core cable),BVV,BVVB(Flat cable),BVVB+E,RV(Flexible core cable),RVV( flexible mulit-core ),Battery cable,power cable and so on.
Another type is Transparent speaker cable and PVC speaker cable. This cable is suitable for audio equipment and home small electric tolls and instruments.
In recent years,we enlarge our business scope,such as telephone cable ,network cable, fire alarm cable, RCA CABLE,Mircrophone cable,Car audio AMPlifier wiring kits.Our new cable series enjoys a good popularity and selling well in many countries.
Quality is our primary principle,with our timely shipment and competitive price,our product sell well in domestic and international markets,such as Europe,Southeast Aisa,Africa,Middle-east,Russia,South America and so on.
