Factory Price Linan Coaxial Cable Rg59+2c Power Cable 75 Ohm

Zhejiang Kuayue Cable Co., Ltd.

Application：Coaxial Cable
Conductor Material：Copper
Cover Material：PE
Type：Coaxial Cable
Material Shape：Round Wire
Conductor Type：Solid

Base Info

Model NO.：RG59+2C
Wire Core Material：Bare Copper Wire
Certification：CE, ISO, RoHS, CCC
Model：Rg59+2c
Brand：Hanli
Color：Black
Shield：Al Foil+Braiding
Length：305m
Power Wire：0.1-0.16 CCA,Bc
Transport Package：100m,200m,305m Per Roll
Specification：32.5*32.5*33.5cm
Trademark：Hanli
Origin：Zhejiang
Production Capacity：1500km,Week

Description

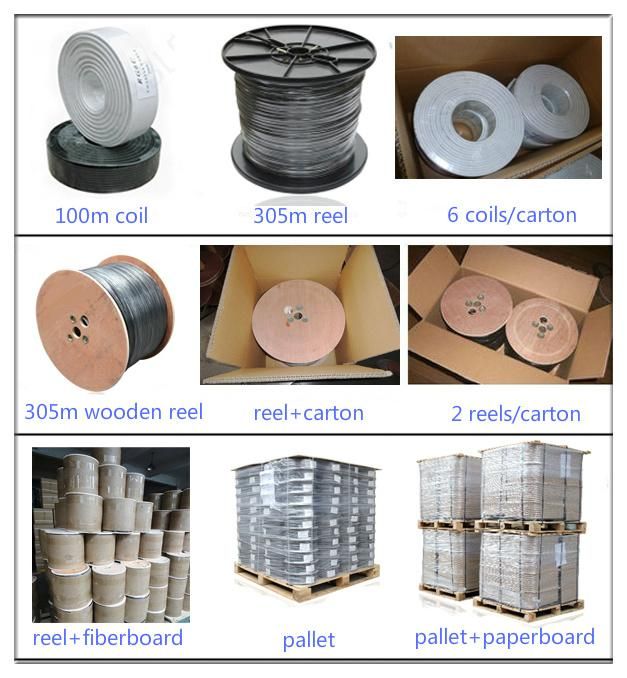

Impedance75±5OhmNominal capacitance54PF/mVelocity of propagation82%Insulation resistance>5000Mohm. KmInner conductor resistance23.1Ohm/KmOuter conductor resistance31Ohm/KmOperating temperature range-30°C-+70°CCable weight(approx. )43Kg/KmFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100FT)5051.51006.41.962009.22.850014.54.460015.94.980017.75.4100021.96.7135024.97.61750298.8205033.110.1240036.411.1Packing

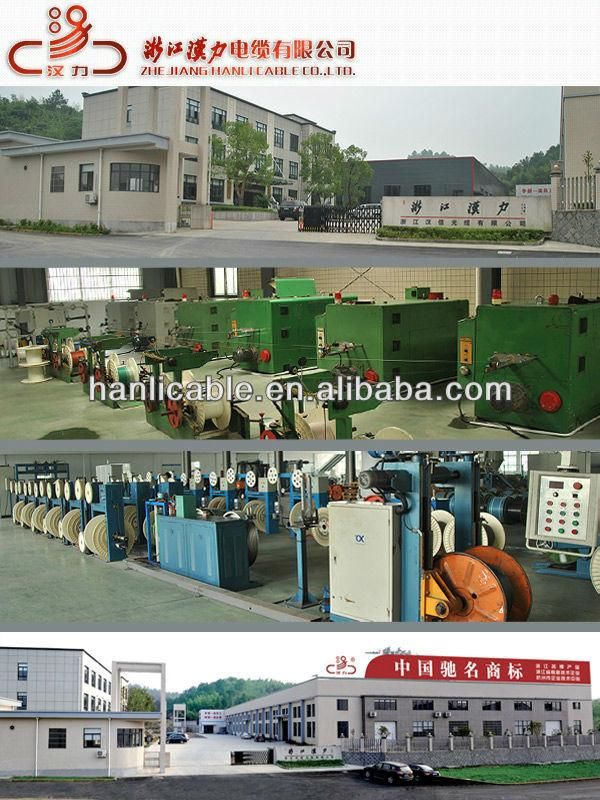

Company Information

Certification

Contact Us
