RG6 Coaxial Cable with Messenger Steel Wire Self Supporting

Zhejiang Kuayue Cable Co., Ltd.

Application：Coaxial Cable
Conductor Material：Copper
Cover Material：PE
Type：Coaxial Cable
Material Shape：Round Wire
Conductor Type：Solid

Base Info

Model NO.：RG6+M
Wire Core Material：Bare Copper Wire
Certification：CE, ISO, RoHS, CCC
Model：RG6+M
Brand：Kuayue or OEM
Color：Black
Shield：Al Foil+Braiding
Length：305m
Steel Wire：1.0-1.3mm Steel Wire
Transport Package：100m,200m,305m Per Roll
Specification：32.5*32.5*33.5cm
Trademark：Hanli
Origin：Zhejiang
Production Capacity：1500km,Week

Description

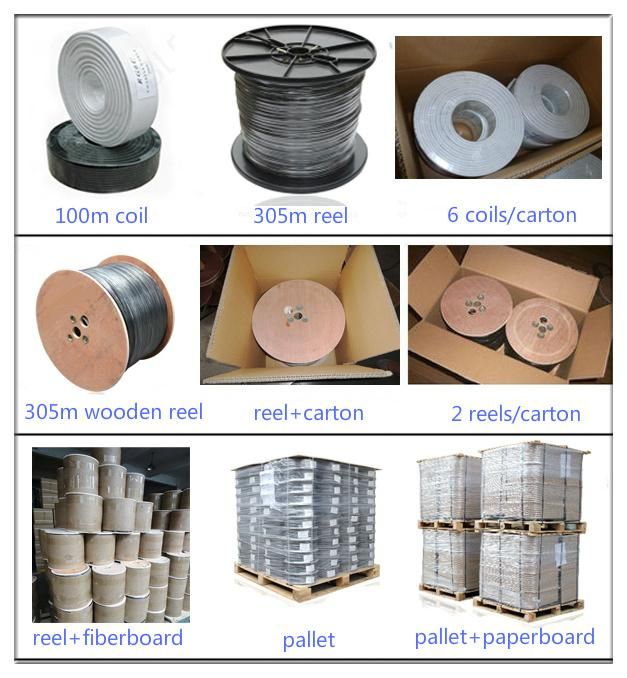

Impedance75±5OhmNominal capacitance53pF/mVelocity of propagation66%Insulation resistance>2000Mohm.KmInner conductor resistance13.5Ohm/KmOuter conductor resistance24.1Ohm/KmOperating temperature range-30°C-+70°CCable weight(approx.)116.4-140.4Kg/KmFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)503.10.951004.21.282506.82.073007.52.293507.92.414008.52.594509.12.775009.52.955010.13.0860010.53.275012.13.6986013.24.02100014.34.36145018.65.672050237.01Packing

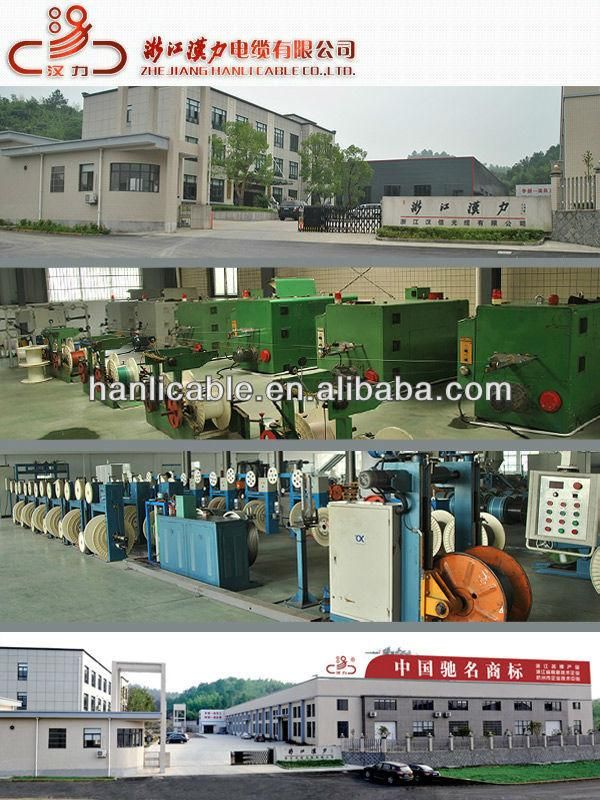

Company Information

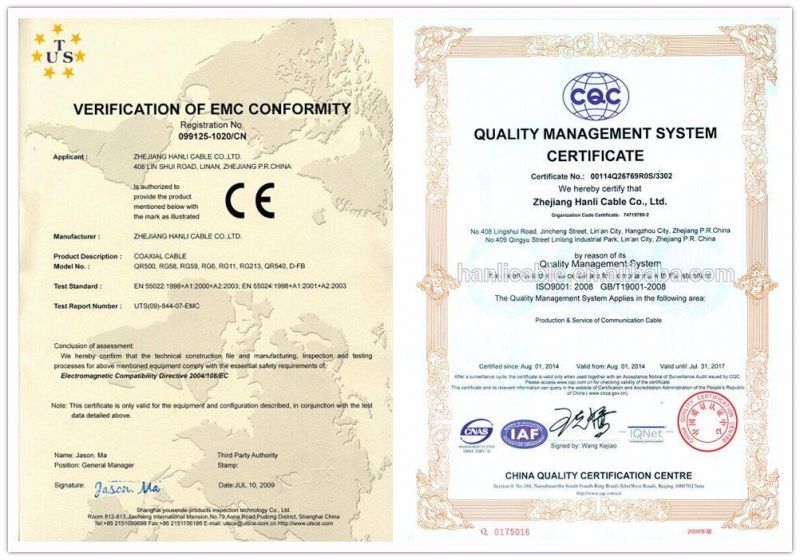

Certification

Contact Us
