Shield Coaxial Cable with Steel Messenger Rg59

Zhejiang Kuayue Cable Co., Ltd.

Application：Coaxial Cable
Conductor Material：BC,CCS,CCA,TC,CU,CCAG
Cover Material：PE
Type：Coaxial Cable
Material Shape：Round Wire
Conductor Type：Solid

Base Info

Model NO.：RG59+M
Wire Core Material：Bare Copper Wire
Certification：CE, ISO, RoHS, CCC
Model：RG6+M
Brand：Kuayue or OEM
Color：Black
Shield：Al Foil+Braiding
Length：305m
Steel Wire：1.0-1.3mm Steel Wire

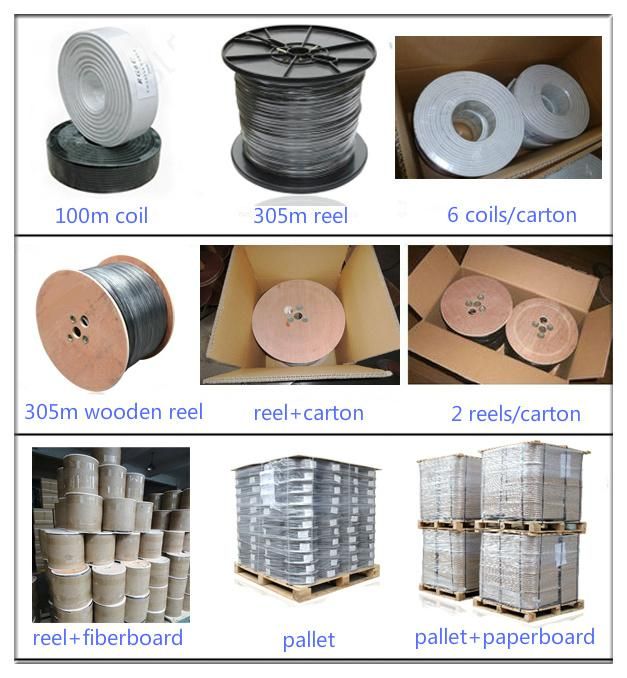

Transport Package：100m,200m,305m Per Roll
Specification：32.5*32.5*33.5cm
Trademark：Hanli
Origin：Zhejiang
Production Capacity：1500km,Week

Description

Impedance75±5OhmNominal capacitance53pF/mVelocity of propagation66%Insulation resistance>2000Mohm.KmInner conductor resistance13.5Ohm/KmOuter conductor resistance24.1Ohm/KmOperating temperature range-30°C-+70°CCable weight(approx.)116.4-140.4Kg/KmFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)503.10.951004.21.282506.82.073007.52.293507.92.414008.52.594509.12.775009.52.955010.13.0860010.53.275012.13.6986013.24.02100014.34.36145018.65.672050237.01Packing

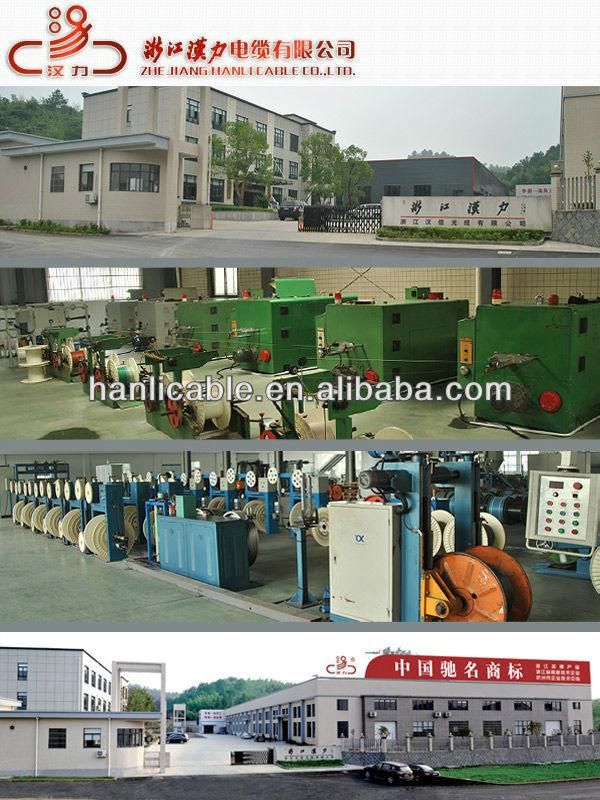

Company Information
