• Certification：ISO, CCC, CE
• Model：Yjlv
• Brand：Yifang
• Insulation Color：Neutral or as Per The Requirement.
• Sheath Color：Black or as Per The Requirement.
• Transport Package：Wooden Drum, Steel Drum or Steel-Wooden Drum etc.
• Trademark：Yifang
• Origin：China
• HS Code：8544492100
• Production Capacity：50, 000km Per Year

Basic Info.

Certification ISO, CCC, CE Model Yjlv Brand Yifang Insulation Color Neutral or as Per The Requirement. Sheath Color Black or as Per The Requirement. Transport Package Wooden Drum, Steel Drum or Steel-Wooden Drum etc. Trademark Yifang Origin China HS Code 8544492100 Production Capacity 50, 000km Per Year

Product Description

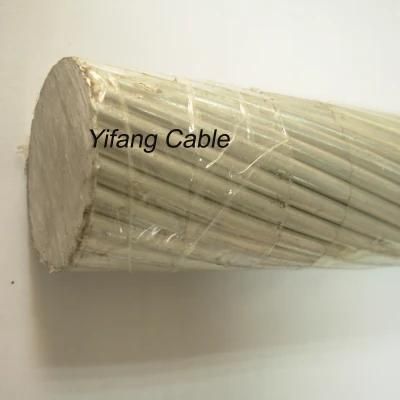

Aluminum Condutor XLPE Insulation PVC Sheath 1x240mm2

Application: The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Applicable Standards: IEC60502, GB/T12706

Production Scope:
Nominal Cross-section:1.5-1000mm²
Rated Voltage:600/1000V
Cores: 1, 2, 3, 4, 5, 2+1, 3+1, 3+2, 4+1 etc.
Color of insulation: Red, Yellow , Green ,Blue, Black ,yellow/green.

Construction:
Conductor: Copper or aluminum
Insulation: PVC or XLPE
Inner sheath (Optional): PVC
Armored (optional):
Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
Outer Sheath: PVC, PE, or other special requirements
* We can design and produce according to client's requirement.

Certificates:

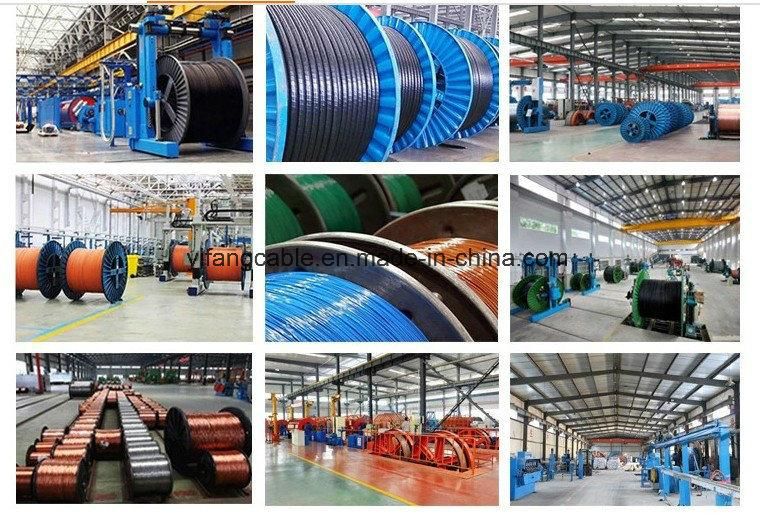

Pictures of our workshop:
